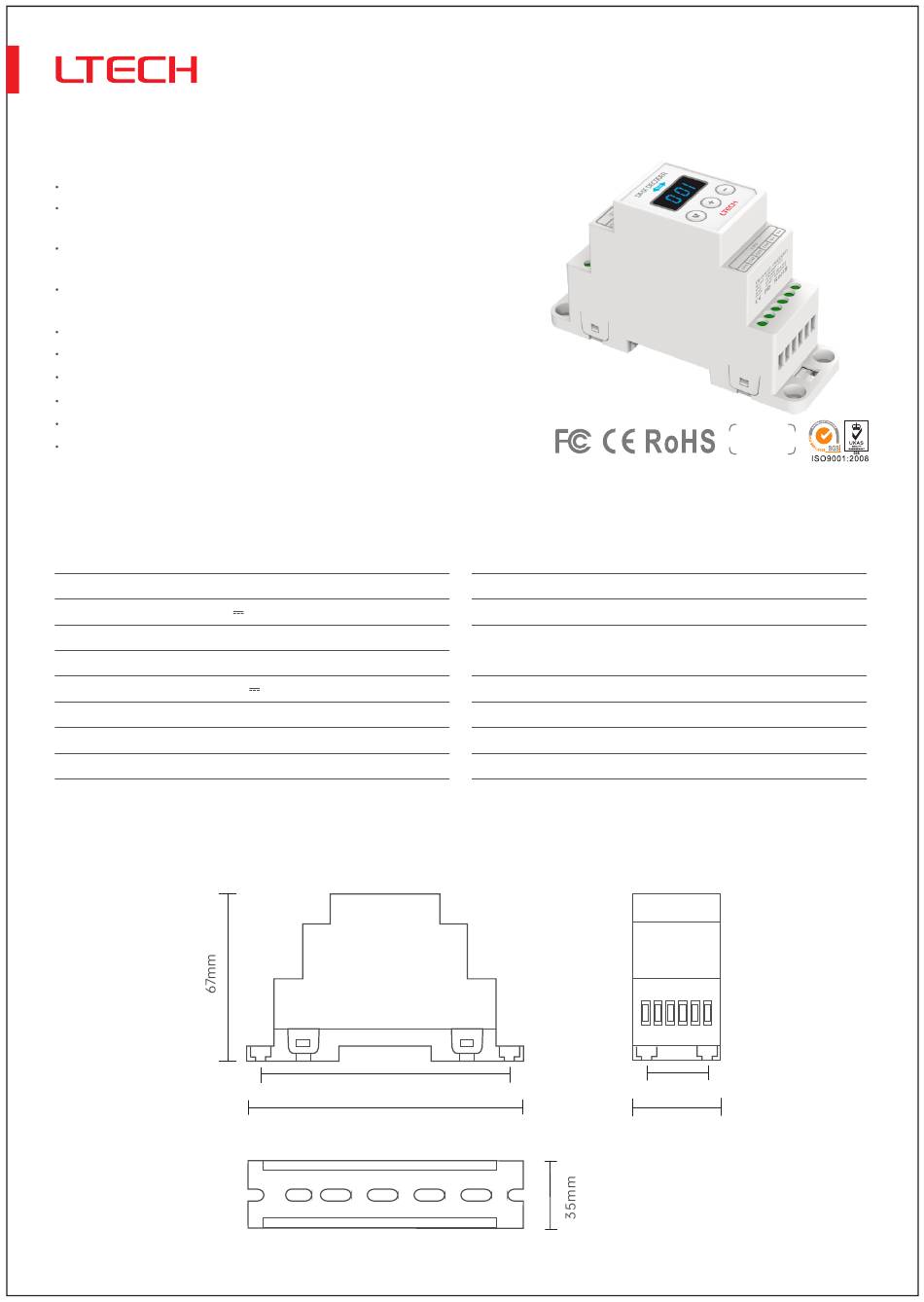

Constant Voltage 4 Channel DMX/RDM Decoder
Standard DMX/RDM interfaces; Set addresses via the digital display and buttons.
RDM protocol; Browse parameters and change DMX addresses via a RDM master
or via the mobile APP .
DMX decoding mode and DMX control mode are switchable, In the control mode,
other decoders can be controlled by selecting preset lighting effects output.
PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/
14400/18000Hz.
16bit (65536 levels)/8bit (256 levels) gray scale optional.
Linear and logarithmic dimming curve optional.
DIM/CT/RGB/RGBW mode optional (1/2/3/4 DMX channel output).
Provide 10 lighting effects, 8 speed levels of dynamic modes, and 255 brightness levels.
Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity.
Short circuit, over-temperature, over-current protection and auto recovery.
Product Parameters
Input Signal
DMX512, RDM
Input Voltage
5-24V
Output Type
Constant Voltage
Output Current
5A×3CH 4A×4CH Max.16A
4×(5-24V )
Output Voltage
Output Power
192W@12V 384W@24V
Dimming Range
0-100%
Working Temp
-25℃~50℃
Product Size
Unit:mm
Installation method
Install the guide rail
Safety regulations
and Electromagnetic
specifications
Product size
Packaging size
Weight(G.W.)
protect
100mm
112mm
1
warranty
for 5
Installation of guide rails or screws
TS-35/7.5 or TS-35/15
CE,EN 55015: 2019/A11: 2020,
EN 61547-1: 2021,FCC Part 15 Class B
L112×W35×H67(mm)
L114×W37×H70(mm)
135g ± 5g
Short circuit, over temperature, over
current protection, can be self restored
24mm
35mm
Install the track
TS-35/7.5 or TS-35/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WiFi-RDM01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ltech WiFi-RDM01

  • Page 1 Constant Voltage 4 Channel DMX/RDM Decoder Standard DMX/RDM interfaces; Set addresses via the digital display and buttons. RDM protocol; Browse parameters and change DMX addresses via a RDM master or via the mobile APP . DMX decoding mode and DMX control mode are switchable, In the control mode, other decoders can be controlled by selecting preset lighting effects output.
  • Page 2: Button Operations

    Address digital tube: 5-24Vdc DMX/RDM Power input terminal signal terminals Running light In the DMX decoder mode, when there is a DMX signal input, the running light flashes rapidly, and the flash frequency depends on the frame rate sent by the DMX controller; When there is no DMX signal, the running light flashes normally Access Configuration:Long press the M button for more than 2s.
  • Page 3: App Operations

    APP Operations 1. D4-H can be used in conjunction with address editors that comply with the standard RDM protocol. It is recommended to use LTECH's RDM editor (model WiFi-RDM01), which can be used to set the screen display mode, unicast /multicast and other parameters of D4-H through the APP.
  • Page 4: Dimming Curve

    Dimming curve Gamma=1.6 Gamma=1.0 Brightness(%) Brightness(%) Linear dimming curve Logarithmic dimming curve Address Setting Table Mode Address C-1((Dimming) C-2(CT/CT2) C-3(RGB) C-4(RGBW) Channel Load Parameters At different PWM frequencies and different voltages, the max. load current and the total power of each channel vary. Before you do the wiring,please strictly follow the load parameters in the table below to operate.
  • Page 5: Dimming Mode

    D4-H Wiring Diagram DMX Decoder Mode DMX/RDM input 24V+ 24V+ Constant voltage power supply 12-48Vdc DMX Control Mode 24V+ 24V+ Constant voltage power supply 12-48Vdc 24V+ 24V+ Constant voltage power supply 12-48Vdc Dimming mode CT mode Dimming LEDs CT/CT2 LEDs V+ V+ V+ V+...
  • Page 6: Rgb Mode

    Warranty labels and barcodes have been damaged. No any contract signed by LTECH. 1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law.
