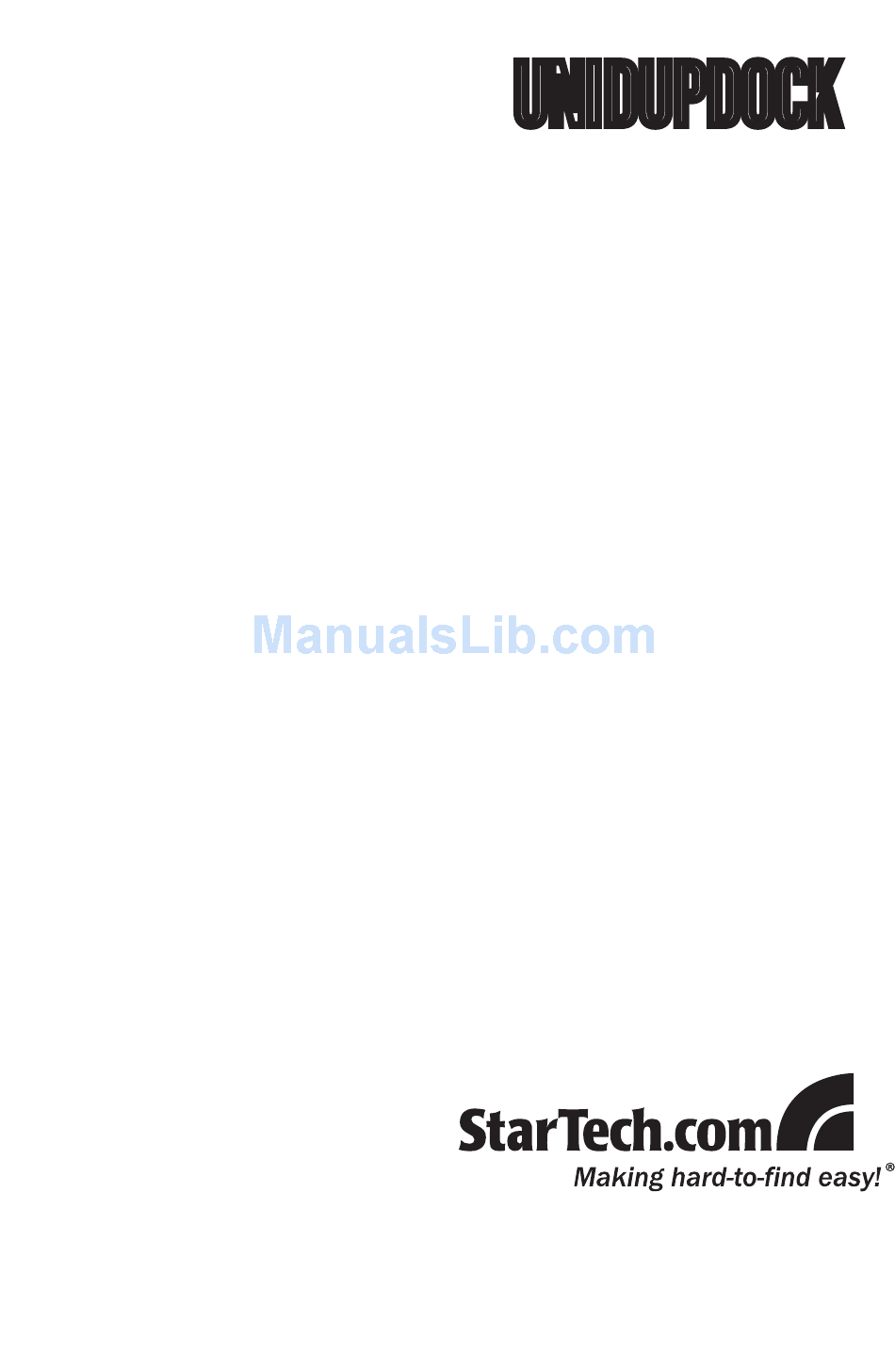

- Page 1 UNIDUPDOCK Instruction Manual Hard Drive Docking Station USB to IDE SATA Standalone Hard Drive Duplicator Dock...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Product View ................2 Configuration Buttons ..............2 Installation ............... 3 Hardware Installation ..............3 Driver Installation .................4 How to Use ..............5 Menu Options ................5 Duplicator (Copy) Mode ...............5 RAID Mode ..................6 Available RAID Modes ..............6 RAID 1 Rebuild ................7 Specifications .............. -
Page 4: Introduction
Introduction The UNIDUPDOCK functions as both a convenient hard drive copying/ imaging solution and an external USB to SATA/IDE HDD docking station for 2.5” (up to 500Gb) or 3.5” hard drives (up to 2 TB). Packaging Contents • 1 x UNIDUPDOCK duplicator dock •... -
Page 5: Product View

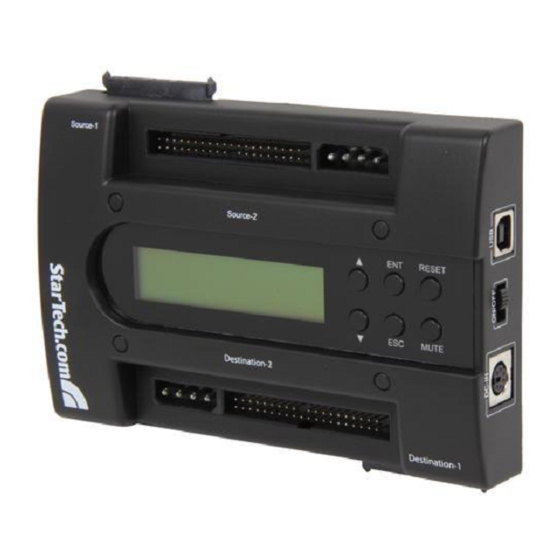

Product View Built-in LCD screen Configuration buttons LP4 molex connector USB connector 40-pin IDE connector ON/OFF switch Power connector 7+15 SATA connector Configuration Buttons Button Function Navigate Up Navigate Down Enter Cancel RESET Reset duplicator dock (soft) MUTE Mute buzzer sounds... -
Page 6: Installation
Installation WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Hardware Installation Plug the universal power adapter into a wall power outlet and into the DC In connector on the duplicator dock. -
Page 7: Driver Installation
Connect the IDE hard drive to the ribbon cable and LP4 molex connector. If connecting a 2.5” IDE hard drive, attach the 40 to 44-pin adapter to the end of the ribbon cable and LP4 cable, then connect the hard drive to the adapter. NOTE: Only one Source disk and one Destination disk can be installed at a time. -
Page 8: How To Use
How to Use Menu Options Copy HDD • Perform a 1:1 sector clone from the Source disk to the Destination disk. Compare HDD • Compares the sectors on the Source disk to the Destination disk. Used to ensure that the Copy operation was successful. Pre-scan •... -
Page 9: Raid Mode
RAID Mode Use the <up> and <down> arrows to navigate to the Setup Mode and press the ENT button. Navigate to the “Change RAID Mode” option and press ENT. NOTE: Changing the RAID mode may result in data loss, so make sure all important data is backed up, before attempting to change the RAID mode. -
Page 10: Raid 1 Rebuild
RAID 1 Rebuild When operating in RAID1 mode, if one of the hard drives fails or is removed, the duplicator dock will enter a failed state and a buzzer will sound once per second. Use the <up> and <down> arrows to display information on either Drive1 (Source) or Drive2 (Destination). -
Page 11: Specifications
Specifications Bus Interface USB 2.0 2 x 7+15 SATA connector 2 x 40-pin IDE male Connectors 2 x LP4 molex male 1 x USB type B 1 x DIN power connector LEDs 4 x Disk Power/Activity 0, 1, JBOD (concatenation), RAID Modes single disks Maximum Data Transfer Rate... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 13 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
