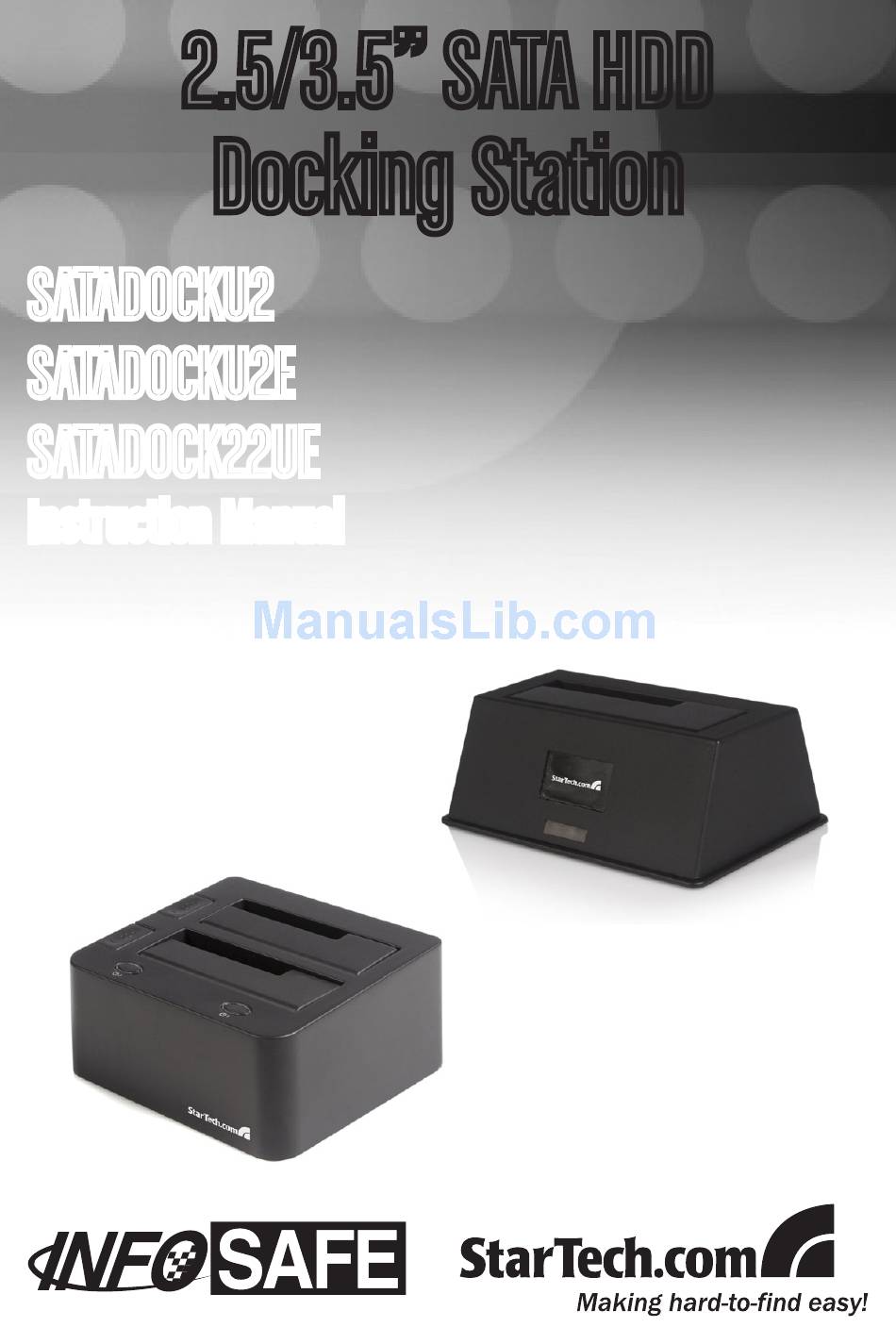

- Page 1 2.5/3.5” SATA HDD Docking Station SATADOCKU2 SATADOCKU2E SATADOCK22UE Instruction Manual...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..............1 Features..................1 Package Contents ..............1 SATADOCKU2 .................1 SATADOCKU2E...............2 SATADOCK22UE..............2 Hardware Guide ............... 3 SATADOCKU2 ................3 SATADOCKU2E ................3 SATADOCK22UE ................4 Disk Installation .............. 5 SATA Drive Removal ............5 Preparing the Hard Drives for Use ......... 6 Specifications .............. -
Page 4: Introduction
This unit allows you to install and access SATA drives quickly, and without the need for an enclosure. Simply plug the hard drive into the upright dock and connect it to a PC or notebook. The StarTech.com SATA HDD Docking Station is a perfect solution for data recovery, drive imaging, and testing centers, or any environment requiring fast access to uninstalled/ archived drives. -
Page 5: Satadocku2E
Instruction Manual SATADOCKU2E • 1 x eSATA Cable • 1 x Manual • 1 x Power Adapter • 1 x SATA hard drive docking station • 1 x USB Cable SATADOCK22UE • 2 x eSATA Cable • 1 x Manual •... -
Page 6: Hardware Guide
Instruction Manual Hardware Guide SATADOCKU2 DC Power Adapter On/Off Port Switch SATADOCKU2E eSATA Power Adapter Port USB Port On/Off Switch... -

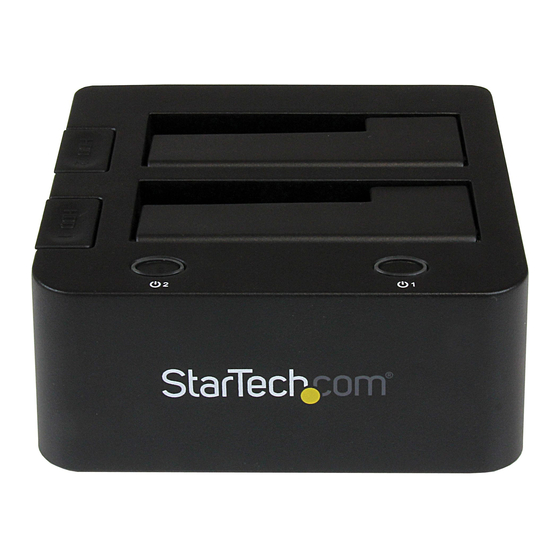

Page 7: Satadock22Ue
Instruction Manual SATADOCK22UE eSATA DC Power Ports Adapter Port Eject Buttons Drive LEDs... -
Page 8: Disk Installation
Instruction Manual Disk Installation Connect the Dock to an available power outlet, using the provided power adapter. Connect the Dock to the (powered) Host Computer, using the provided USB/eSATA cables. Insert the 2.5” or 3.5” SATA drive(s) you wish to install, such that the SATA power and data connectors at the back of the drive are properly aligned with the corresponding connectors inside the Dock. -
Page 9: Preparing The Hard Drives For Use
Instruction Manual Preparing the Hard Drives for Use With the hard drives inserted and the HDD Dock powered on, right click on the My Computer icon and select Manage. In the left pane of the Computer Management window, click Disk Management. In the bottom right pane of the Computer Management window, you should see your drives listed as unallocated. - Page 10 Instruction Manual Select the partition type you wish to create by clicking on Primary or Extended, as appropriate. When you have made your selection, click Next to continue. Specify the size of the partition you wish to create. You must select a partition size that is between the maximum and minimum sizes (typically the maximum disk space available).
- Page 11 Instruction Manual A notification window will appear indicating that you have successfully completed the New Partition Wizard. Click Finish to commence the formatting of the drive. The status of the drive, as shown in the Computer Management window, will be updated to reflect the selections you have made. Please wait while the drive is being formatted.
- Page 12 Instruction Manual To access your newly partitioned drive(s), open My Computer. Your drive(s) should be displayed below the heading Hard Disk Drives.
-
Page 13: Specifications
Instruction Manual Specifications SATADOCKU2 SATADOCKU2E SATADOCK22UE 1 x SATA Power 15-Pin Female 2 x SATA Power Internal 1 x SATA Data 7-Pin Female 15-Pin Female Connectors 2 x SATA Data 7-Pin Female 1 x USB B 1 x USB B Female 1 x USB B Female Female 1 x eSATA Plug... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 15 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
