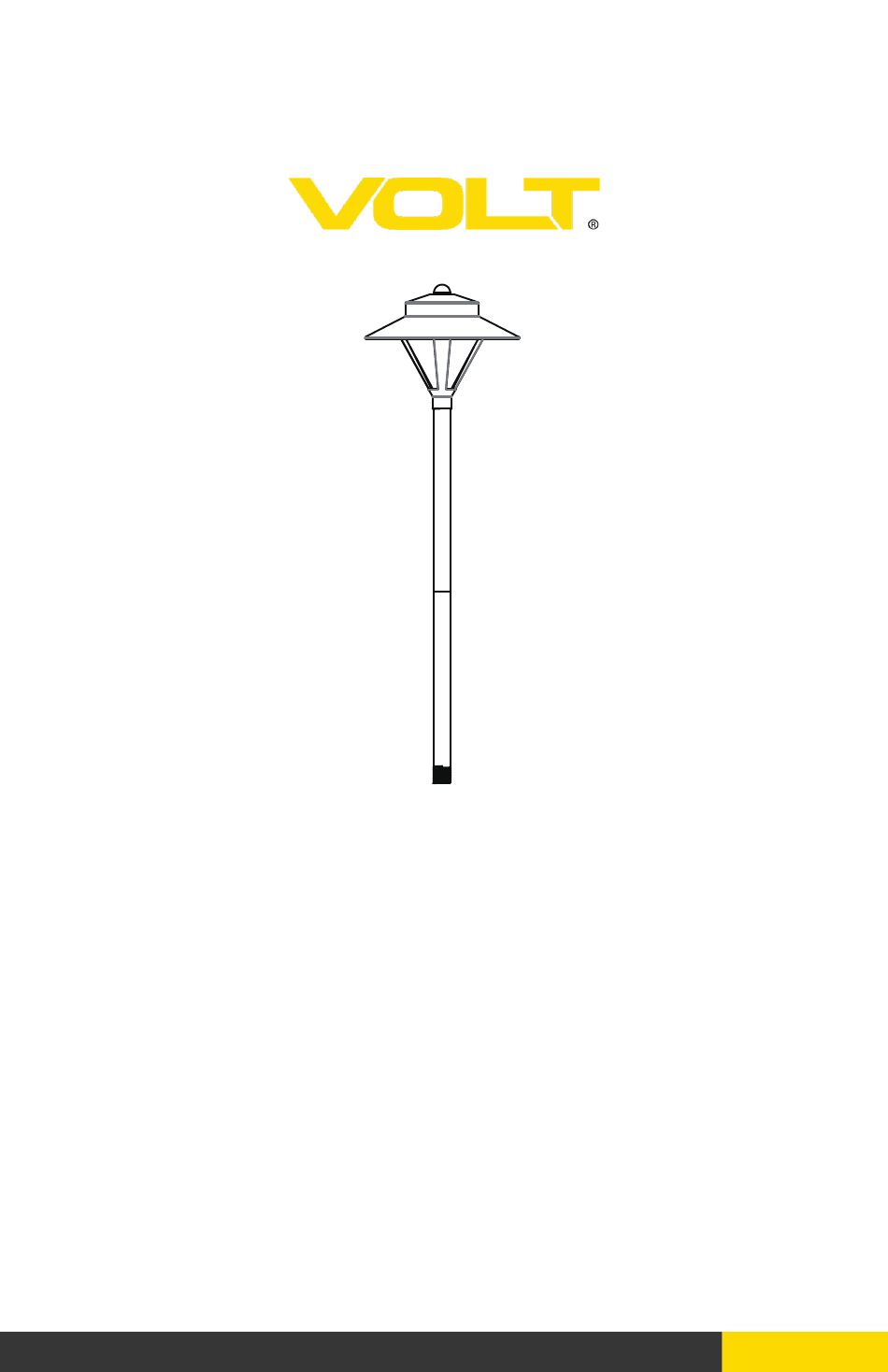

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Solar Area Light Kit ® ITEM: VSPL-9001-25-BBZ 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Solar Area Light Kit - VSPL-9001- 25-BBZ ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PRODUCT DIMENSIONS 7.5” 23.25” Install Stake Determine the desired location for mounting the stake. Ham- Board mer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of Stake the stake while hammering.
- Page 4 INSTALLATION INSTRUCTIONS VOLT Solar Area Light Kit - VSPL-9001- 25-BBZ ® Install Fixture to Stake Pass the fixture wire through the center hole of the stake. Thread the fix- ture onto the stake. Hand tighten until snug. Fixture Fixture Wire...
- Page 5 Wire Connection: Option B Wire Connector Area Light Solar Panel Solar Panel Supply Wire Area Light Supply Wire Connect with Wire Connectors You can choose from Option A or Option B to complete the installation. Option A is the recommended method to install the solar lights.
- Page 6 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
