INSTALLATION INSTRUCTIONS
VOLT
Line Voltage Landscape Lighting
®
VOLT
®

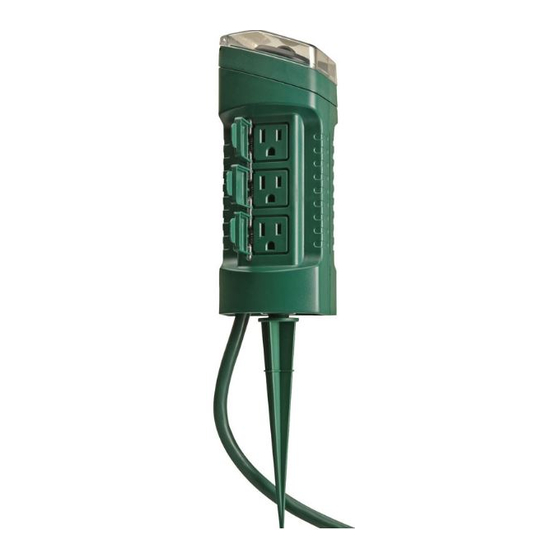

120V 6-Outlet Outdoor Power Stake with Timer
VAC-STK-PWR-PGR
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2023, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
