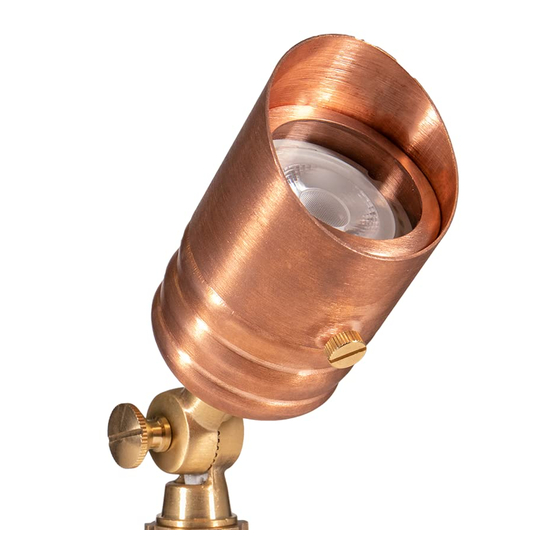

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Fat Boy Mini Spotlight ® ITEM: VAL-2014-X-XXX 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Fat Boy Mini Spotlight - VAL-2014-X-XXX ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body PRODUCT DIMENSIONS 2.2” 4.59” 1.0” INSTALL STAKE Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 4 INSTALLATION INSTRUCTIONS VOLT Fat Boy Mini Spotlight - VAL-2014-X-XXX ® INSTALL FIXTURE BODY TO STAKE Fixture Clear away an area in the ground Body at the wireway slot on top of the stake. Lay the supply wires into the wireway slot and attach the Wireway fixture on to the stake.
- Page 5 Remove Glare Guard and Lens Glare Guard Loosen the set screw and remove the glare guard and lens from the fixture. Lens Set Screw Fixture Install MR11 Bulb Insert MR16 bulb with the cor- rect wattage and type marked on the fixture label and secure into place.
- Page 6 INSTALLATION INSTRUCTIONS VOLT Fat Boy Mini Spotlight - VAL-2014-X-XXX ® Install Lens Glare Place the lens and the glare Guard guard back onto the fixture. Align holes on both of them and Lens secure with previously removed set screw. Hand tighten until snug.
- Page 7 INSTALLATION INSTRUCTIONS VOLT Fat Boy Mini Spotlight - VAL-2014-X-XXX ® Install/Replace Lamp Remove the glare guard and the lens to expose the MR16 lamp and replace it with the correct wattage and type marked on the fixture label. Then, reinstall the lens and the glare guard.
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
