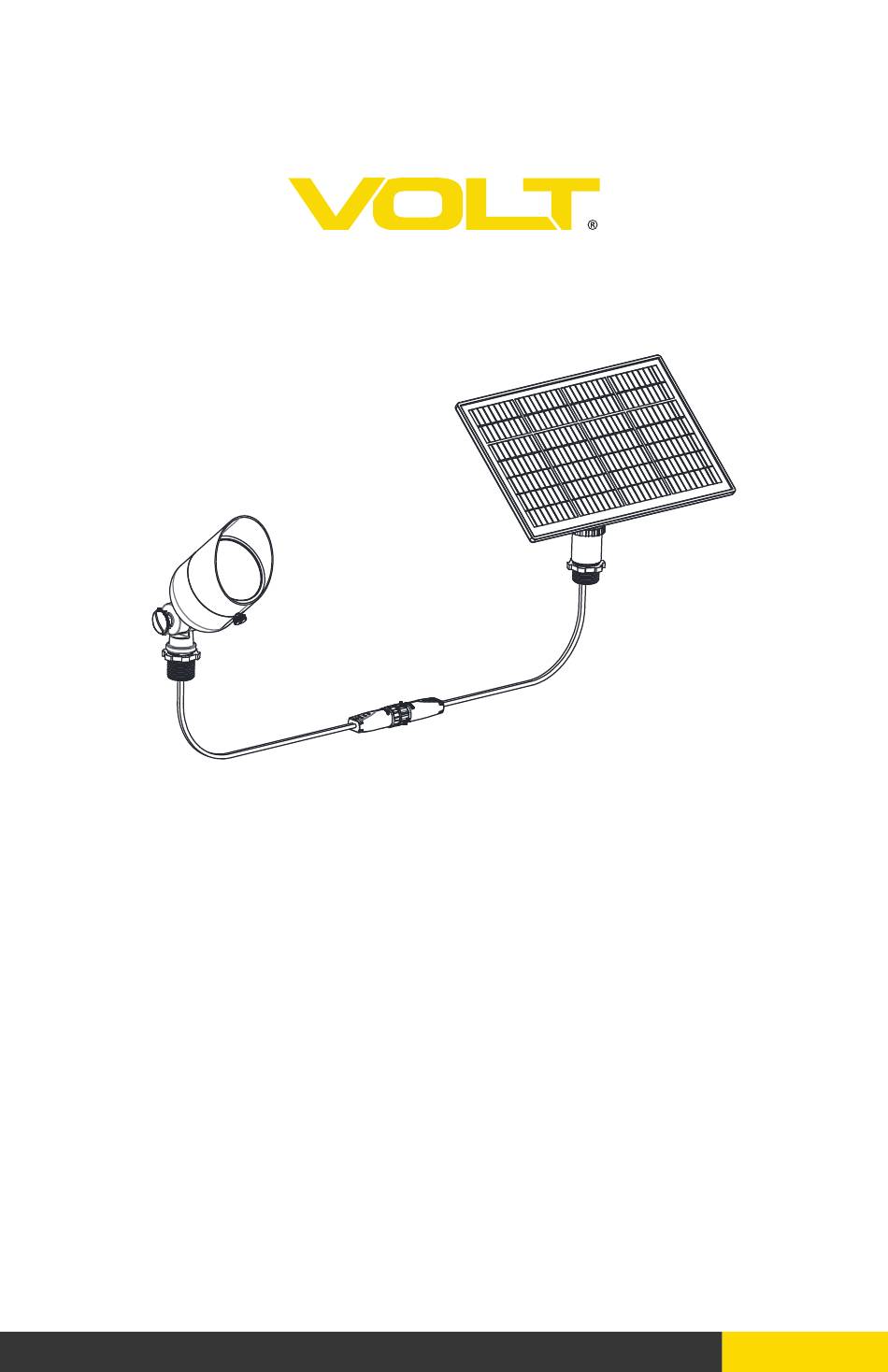

- Page 1 INSTALLATION INSTRUCTIONS VOLT SOLAR LANDSCAPE LIGHTING ® VOLT Premium Solar Spot Light With Detached Panel ® ITEM: VSAL-9007-BBZ 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (ET)
-
Page 2: Important Safety Instructions
INSTALLATION INSTRUCTIONS VOLT Premium Solar Spot Light With Detached Panel ® VSAL-9007-BBZ IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Spot Light B. (1) Solar Panel PARTS REQUIRED (SOLD SEPARATELY) A. (2) Mounting Accessories PRODUCT DIMENSIONS 2.27” 2” 4.5” 1” Wire Length: 5 feet 8” 1.25” 4.95” 2.12” Wire Length: 5 feet 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com... -
Page 4: Connect Wires
INSTALLATION INSTRUCTIONS VOLT Premium Solar Spot Light With Detached Panel ® VSAL-9007-BBZ REMOVE PULL TAB Battery Compartment Remove the pull tab out of the battery compartment on the bottom of the Solar Panel fixture. Mylar Sheet PULL CONNECT WIRES Spot Light... -
Page 5: Turn On The Switch
TURN ON THE SWITCH Turn the ON-OFF switch to ON. Battery Compartment Solar Panel ON-OFF Switch PUSH TEST SOLAR LIGHT Cover Solar Panel Spot Light Cover the panel. The fixture will light up when the solar panel is covered and turn back off when it is uncovered. Now you can proceed to next the next steps. - Page 6 INSTALLATION INSTRUCTIONS VOLT Premium Solar Spot Light With Detached Panel ® VSAL-9007-BBZ DISCONNECT WIRES Spot Light Solar Panel Female Connector from Solar Panel Male Connector from Spot Light Loosen the cap on the female connector to disconnect the male connector from the spot light to the female connector from solar panel.
- Page 7 INSTALL SOLAR PANEL TO STAKE Clear away an area in the ground at the wireway slot on top of the stake. Lay the solar panel supply wire into the wireway slot and screw the Supply Wire Solar Panel solar panel on to the stake. Ground Stake Soil...
- Page 8 INSTALLATION INSTRUCTIONS VOLT Premium Solar Spot Light With Detached Panel ® VSAL-9007-BBZ INSTALL STAKE FOR SPOT LIGHT Determine the desired location for Board mounting the spot light. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 9 CONNECT WIRES Connect the male connector from the spot light to the female connector from solar panel. Screw the cap on the female connector. Female Connector from Solar Panel Male Connector from Spot Light ADJUST SOLAR PANEL DIRECTION Solar Panel Solar Panel ROTATE ROTATE...
-
Page 10: How To Replace Battery
INSTALLATION INSTRUCTIONS VOLT Premium Solar Spot Light With Detached Panel ® VSAL-9007-BBZ ADJUST LUMEN OUTPUT By pushing the lumen output Battery Compartment switch on the back of the Lumen Output battery compartment, adjust Switch the lumen output according to your desired runtime: •... -
Page 11: Replace Battery
REPLACE BATTERY Replace the battery with correct Battery Compartment specifications as below: • Battery Style: Li-ion 18650 Solar Panel • Battery Voltage: 3.7V • Current Rating: 2600mAh Battery REINSTALL COVER Battery Compartment Place the cover back onto the battery compartment and secure with previously removed screws. - Page 12 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (ET) Specifications and product details subject to change without notice. © Copyright 2024, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
