INSTALLATION INSTRUCTIONS
VOLT
Low Voltage Landscape Lighting
®
VOLT

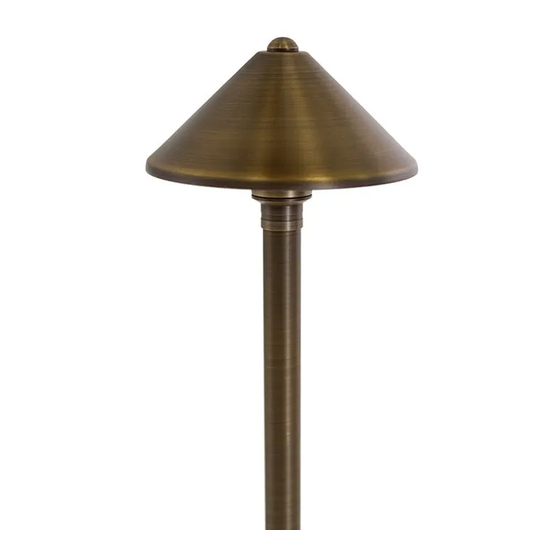

Stem with Integrated Hub Top
®
VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ)
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2019, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Volt VSM-2408-0-BBZ
Summary of Contents for Volt VSM-2408-0-BBZ
- Page 1 Low Voltage Landscape Lighting ® VOLT Stem with Integrated Hub Top ® VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ) Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 •...
-
Page 2: Important Safety Instructions
VOLT Stem with Integrated Hub Top ® VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ) Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
Package Contents A. (1) Fixture Body B. (1) Integrated Hub Top Product Dimensions 4” 22” 1” 2.83” There are two types of mounts that are sold separately for this fixture, the Stake Mount and Surface Mount. customersupport@voltlighting.com • 813.978.3700 - 3 -... - Page 4 INSTALLATION INSTRUCTIONS VOLT Stem with Integrated Hub Top ® VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ) Option 1: Stake Mount Wire Connection Connectors Integrated Hub Top Fixture Wires Main Supply Wires Stake Mount Main Supply Wire Main Supply Wire Continuation Insert the main supply wire continuation (if needed) and the main supply wire up through the bottom of the stake mount and strip the ends of both sets of supply wires.
- Page 5 Install Stake Mount Clear away an area in the ground at the wireway slot on top of the stake. Lay the supply Stake Mount Wireway Slot wires into the wireway slot and screw the stake mount on to the stake. Tighten until snug. Ground Stake Supply Wires...
- Page 6 INSTALLATION INSTRUCTIONS VOLT Stem with Integrated Hub Top ® VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ) Option 2: Surface Mount Wire Connection Connectors Integrated Hub Top Fixture Wires Main Supply Wires Surface Mount Main Supply Wire Main Supply Wire Continuation Insert the main supply wire continuation (if needed) and the main supply wire up through the bottom of the surface mount and strip the ends of both sets of supply wires.
-
Page 7: Bulb Installation
Bulb Installation Remove Stem Top Twist the stem top counter- clockwise and remove it from the stem. Stem Top Stem Install Bulb Insert the bulb with the correct wattage and type marked on the Bulb fixture label and push firmly into place. - Page 8 INSTALLATION INSTRUCTIONS VOLT Stem with Integrated Hub Top ® VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ) Install Stem Top to Stem Place the stem top over the bulb and twist it clockwise onto the stem. Stem Top Stem Install Hat Place the hat of your choice onto...
- Page 9 Install/Replace Bulb Remove the hat and stem top to expose the bulb and replace it with the correct wattage and type marked on the fixture label. Then, reinstall the stem top and hat. IMPORTANT: Bulbs must be protected from moisture and dust at all times.
- Page 10 INSTALLATION INSTRUCTIONS w w w . v o l t l i g h t i n g . c o m - 10 -...
- Page 11 customersupport@voltlighting.com • 813.978.3700 - 11 -...
- Page 12 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
