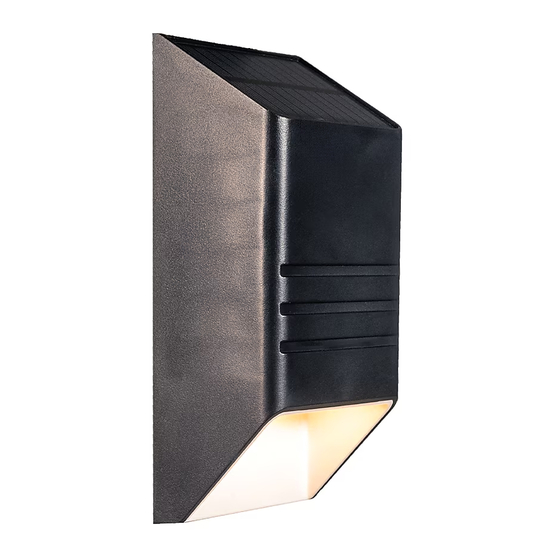

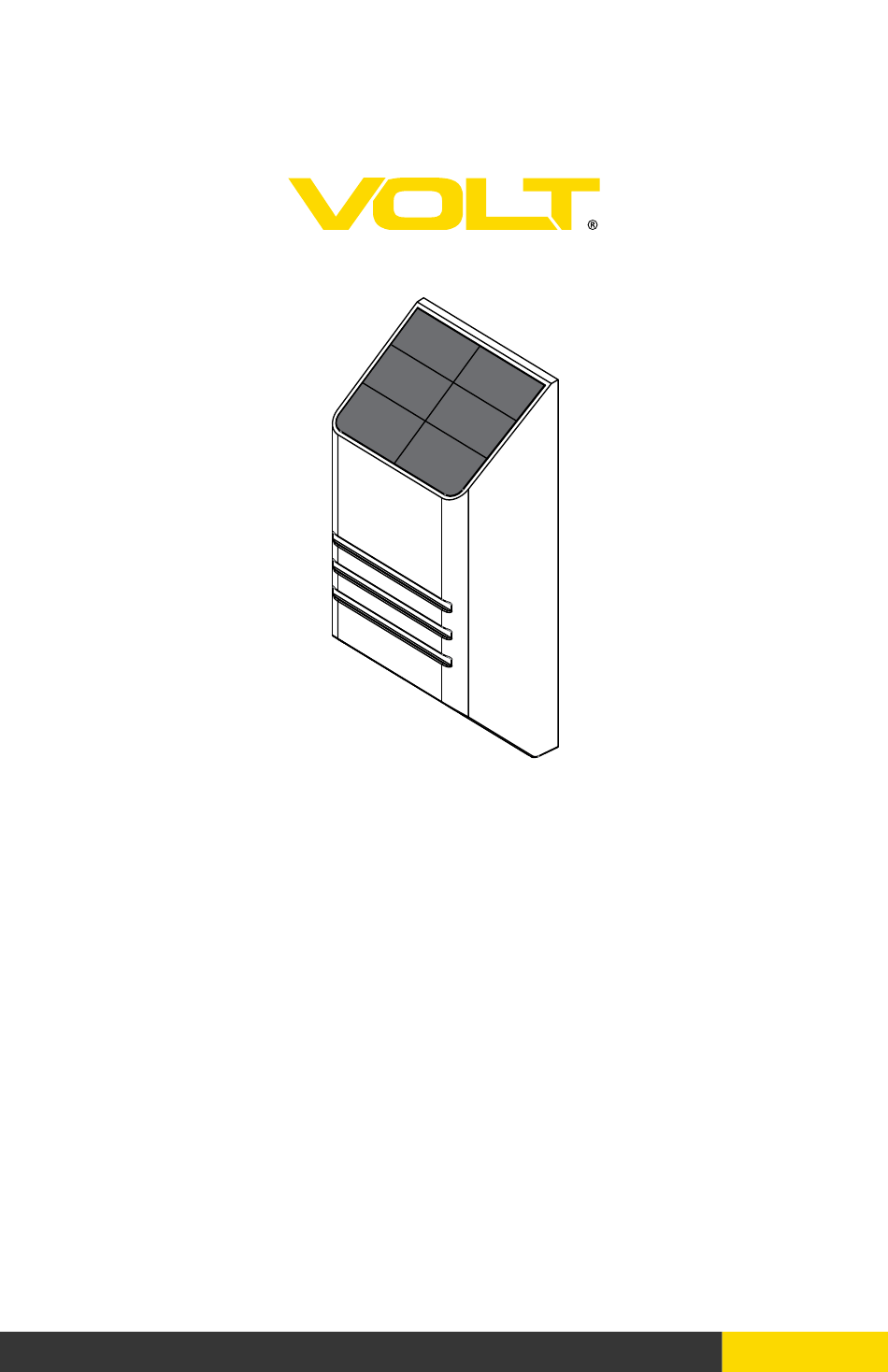

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Solar Integrated Deck Light ® ITEM: VSDL-6012 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT Solar Deck Light - VSDL-6012 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Fixture Body D. (2) Screws B. (1) Battery E. (2) Wall Anchors C. (1) Mounting Bracket PRODUCT DIMENSIONS 2.25” 3” 6.72” 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com... -
Page 4: Remove The Back Cover
INSTALLATION INSTRUCTIONS VOLT Solar Deck Light - VSDL-6012 ® REMOVE THE BACK COVER Using a screwdriver, remove Screw screws from the fixture body. Push on the bottom of the back Back Cover cover to remove it off of the fixture body. -
Page 5: Install Mounting Bracket
TEST SOLAR LIGHT Cover the solar panel completely Black Material by using black materials. There will be a short delay for the fixture to light up. The fixture will light up when the Solar Panel solar panel is covered and turn back off when it is uncovered. - Page 6 INSTALLATION INSTRUCTIONS VOLT Solar Deck Light - VSDL-6012 ® PLACE FIXTURE BODY ON TO MOUNTING BRACKET Attach the bracket on the back of the fixture body to the Bracket mounting bracket on the wall. Mounting Bracket Fixture Body 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 7 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
