INSTALLATION INSTRUCTIONS
VOLT
Low Voltage Landscape Lighting
®
VOLT

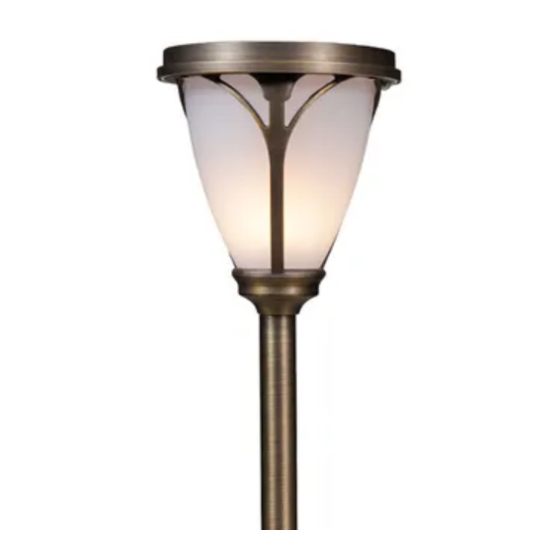

Solar Flame Integrated LED Brass Path Light (Bronze)
®
VSPL-1047-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2022, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Table of Contents
Related Manuals for Volt VSPL-1047-BBZ
Summary of Contents for Volt VSPL-1047-BBZ
- Page 1 VSPL-1047-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2022, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
- Page 2 VOLT Solar Flame Integrated LED Brass Path Light (Bronze) ® VSPL-1047-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Body C. (1) 12” Stem B. (1) Flame LED Lamp Parts Required (Sold Separately) A. Mounting Accessory Product Dimensions 6.33” 6.89” customersupport@voltlighting.com • 813.978.3700 - 3 -...
- Page 4 INSTALLATION INSTRUCTIONS VOLT Solar Flame Integrated LED Brass Path Light (Bronze) ® VSPL-1047-BBZ Remove Solar Panel Using a screwdriver, loosen the screws to carefully remove the solar panel from the fixture Solar Panel body to avoid disconnecting the wires. Fixture Body...
- Page 5 Install Solar Panel Align the switch to the slot on the solar panel and place Solar Panel the solar panel back onto the fixture body. Secure them Slot together with previously removed screws. Hand tighten Switch until snug with a screwdriver. Fixture Body Screw Test Solar Light...
- Page 6 INSTALLATION INSTRUCTIONS VOLT Solar Flame Integrated LED Brass Path Light (Bronze) ® VSPL-1047-BBZ Install Stake Determine the desired location for mounting the luminaire. Board Hammer the stake into the ground until flange of stake is flush to grade. To avoid...
- Page 7 How to Replace Battery Remove Solar Panel Using a screwdriver, loosen the screws to carefully remove the Solar Panel solar panel from the fixture body to avoid disconnecting the wires. Fixture Body Screw Replace Battery Remove the battery out of Solar Panel the battery compartment and Battery...
