DeviceNet Module
4

Installation

CAUTION
Remove mains and control voltage from the soft starter before attaching or
removing accessories. Failure to do so may damage the equipment.

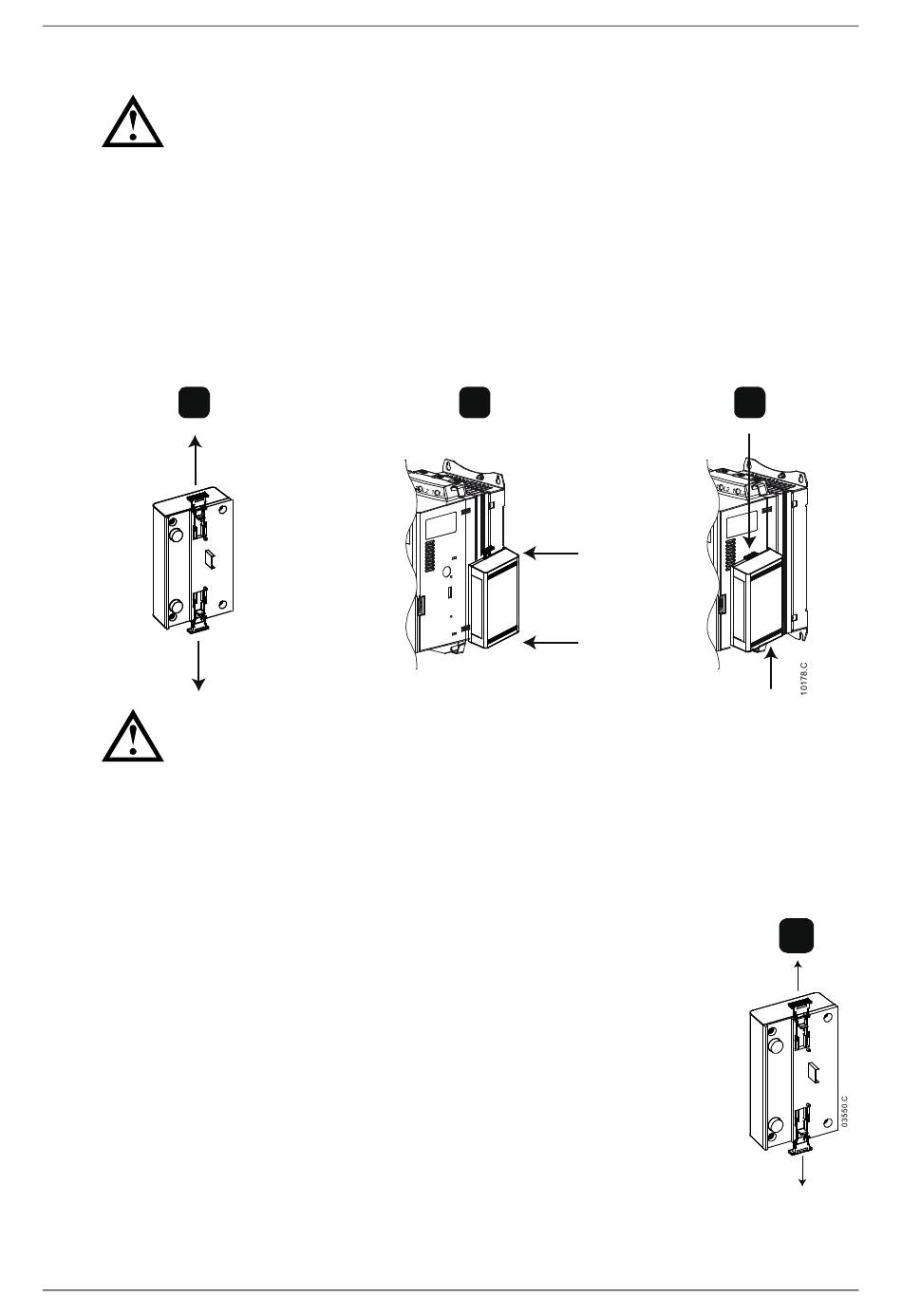

4.1 Installation Procedure
1. Remove control power and mains supply from the soft starter.
2. Fully pull out the top and bottom retaining clips on the module. [A]
3. Line up the module with the comms port slot. [B]
4. Push in the top and bottom retaining clips to secure the module to the starter. [C]
5. Set the DeviceNet Module Node Address (MAC ID) and Data Rate.
6. Apply control power to the soft starter.
7. Insert the network connector into the module and power up the DeviceNet network.
A
CAUTION
Network designs must decrease the maximum allowable cumulative dropline
length by 400 mm for every device installed on the network. Failure to do so may
result in network communication errors and decreased reliability.
Example: ODVA specifies a maximum cumulative dropline length of 156 m on a
network operating at 125 kb/s. If six devices were installed on this network, the
total cumulative dropline length would need to be decreased to 153.6 m.
To remove the module:
1. Take the module off-line.
2. Disconnect all external wiring from the module.
3. Remove control power and mains supply from the soft starter.
4. Fully pull out the top and bottom retaining clips on the module. [A]
5. Pull the module away from the soft starter.
User Manual
B
Installation
C
A
3
