Connection

5 Connection

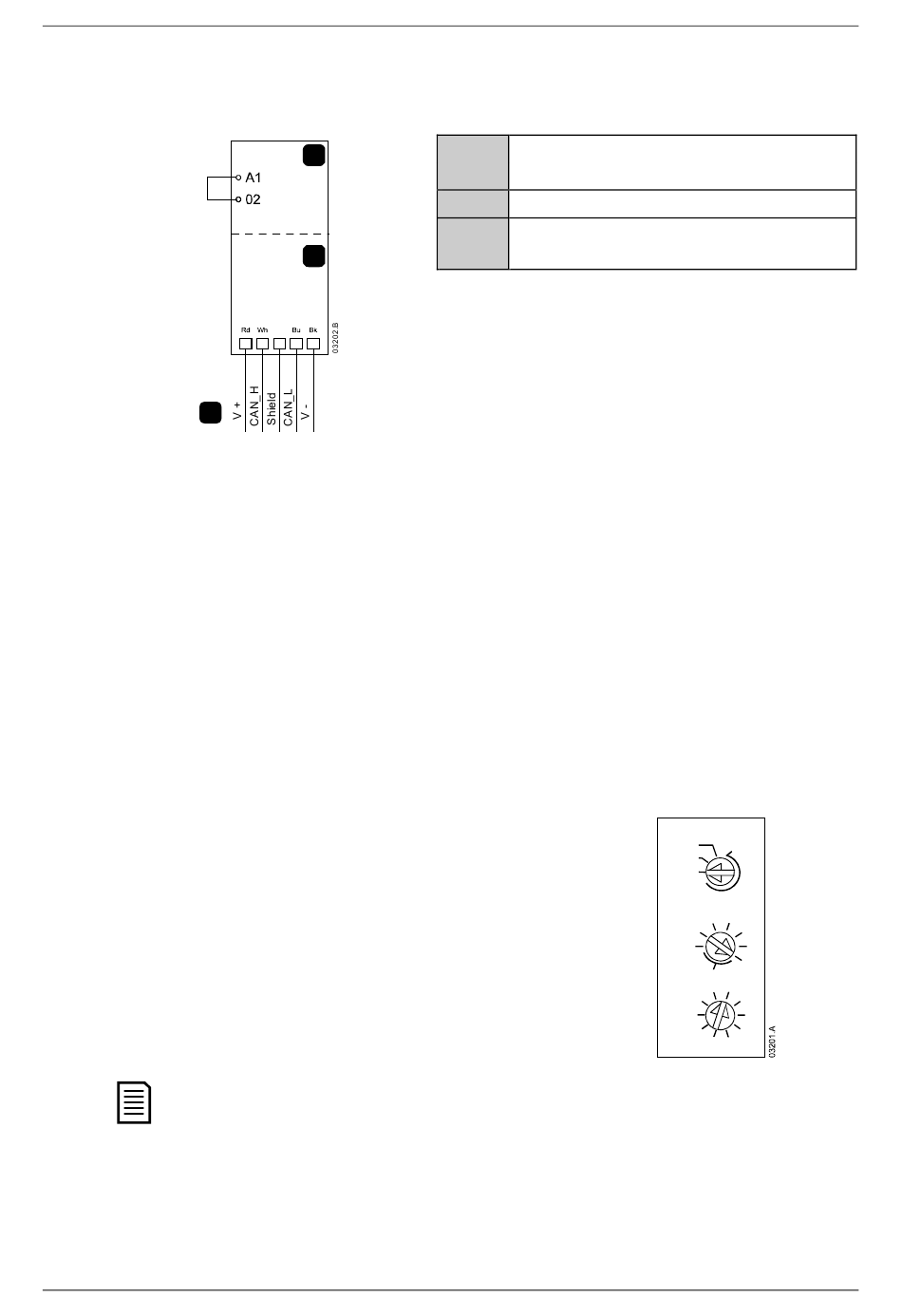

For the soft starter to accept fieldbus commands, a link must be fitted across terminals
A1-02 on the starter.
3
6

Configuration

The DeviceNet Module is a Group 2 slave device, using a predefined master/slave
connection set. I/O data is produced and consumed using polled I/O messaging.
The soft starter must be added to the DeviceNet manager project using the EDS file and
configuration/management software tool. In order to operate successfully, the correct EDS
file must be used. An on-screen graphics bitmap file (device.bmp) is also available. Contact
your local supplier for further information.
7

DeviceNet Network Settings

The Data Rate and Node Address (MAC ID) must be set locally on the module. These
cannot be set using DeviceNet management software. Changes to the settings take effect
when the DeviceNet network is next powered up.
The factory default settings for the rotary adjustment
switches are:
NOTE
When the Data Rate and MSD Node Address (MAC ID) rotary switches are set on
PGM position, the module uses the previously used valid on-line Data Rate and
Node Address (MAC ID).
4
1
1
2
3
2
Soft starter
A1, 02: Stop input
DeviceNet Module
Standard connection onto DeviceNet
network
DATA RATE
500 kB
250 kB
125 kB
NODE ADDRESS
DeviceNet Module
PGM
( 00 - 63, PGM )
2
4
0
6
PGM
MSD
2
4
0
6
8
LSD
