Introduction

3 Introduction
The USB Module lets the soft starter connect to a PC, allowing the starter to be configured
via dedicated management software.
These instructions detail the installation, set-up and configuration of the USB Module. For
details on using the management software, refer to the software help file.
4

Installation

CAUTION
Remove mains and control voltage from the soft starter before attaching or
removing accessories. Failure to do so may damage the equipment.

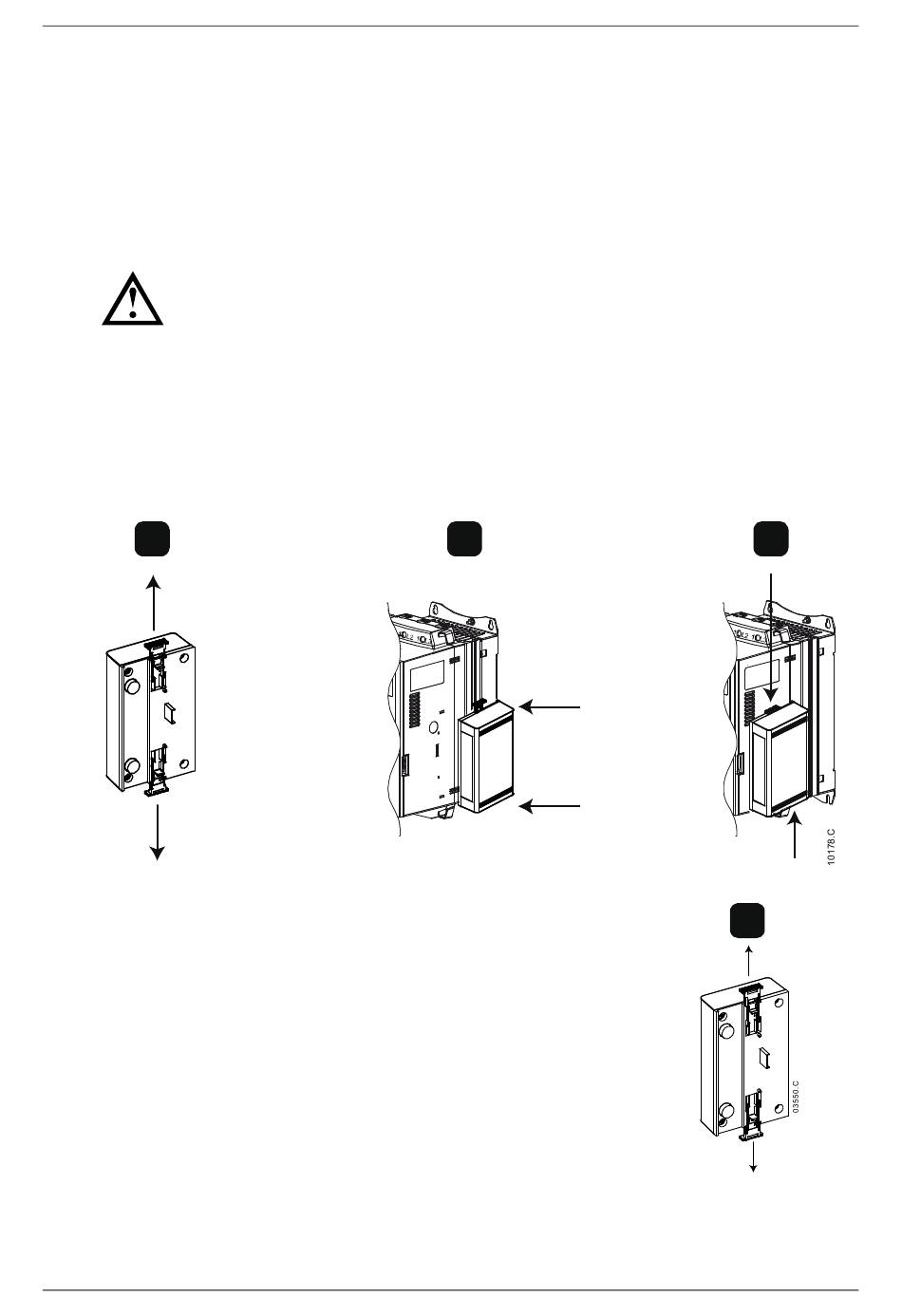

4.1 Installation Procedure
1. Remove control power and mains supply from the soft starter.
2. Fully pull out the top and bottom retaining clips on the module. [A]
3. Line up the module with the comms port slot. [B]
4. Push in the top and bottom retaining clips to secure the module to the starter. [C]
5. Apply control power to the soft starter.
A
Remove the module using the following procedure:
1. Remove control power and mains supply from the soft
starter.
2. Take the module off-line.
3. Disconnect all external wiring from the module.
4. Fully pull out the top and bottom retaining clips on the
module. [A]
5. Pull the module away from the soft starter.
2/5
B
USB Module
C
A
User Manual
