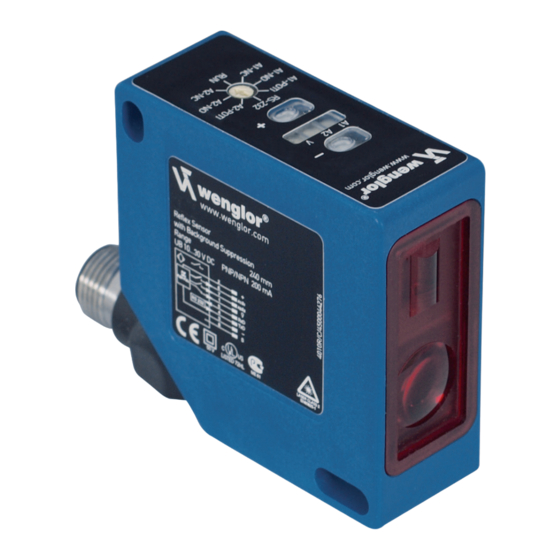

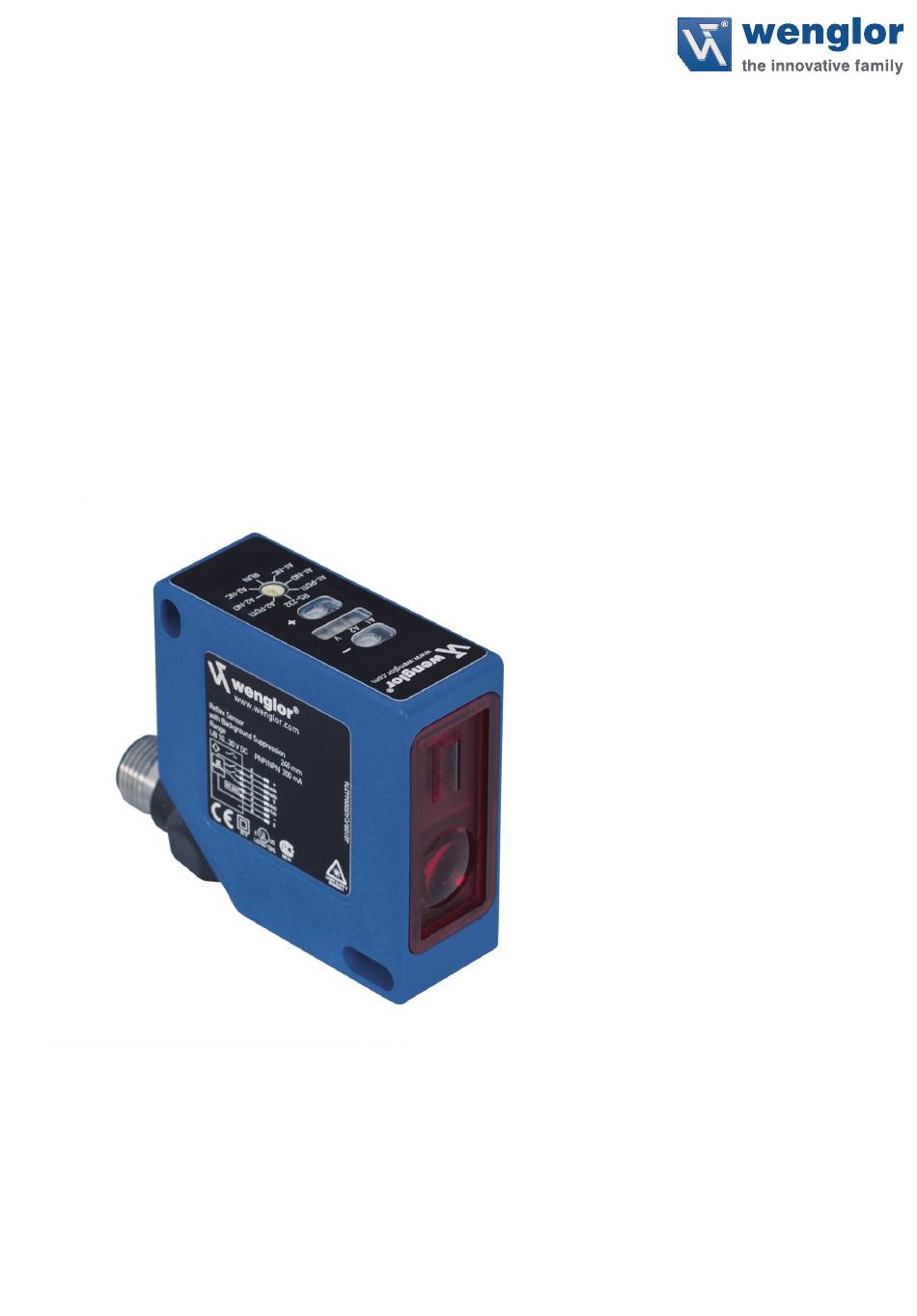

- Page 1 CP25QXVT80 CP70QXVT80 OCP662X0080 High-Performance Distance Sensor Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Status: 02.09.2019 www.wenglor.com...
-
Page 2: Table Of Contents
Table of contents Proper Use Safety Precautions 2.1. Safety Precautions 2.2. Laser/LED warning 2.3. Approvals and IP Protection Technical Data Installation Instructions Initial Operation Function Manual Settings Maintenance Instructions Proper Disposal 10. EU Declaration of Conformity... -
Page 3: Proper Use
1. Proper Use This wenglor product has to be used according to the following functional principle: These sensors work with a high-resolution CMOS line and DSP technology and determine distance using an- gular measurement. As a result, material, color and brightness related switching point differences are virtually eliminated. -
Page 4: Approvals And Ip Protection
2.3. Approvals and IP Protection RoHS... -
Page 5: Technical Data
3. Technical Data Optical Data CP70QXVT80 CP25QXVT80 OCP662X0080 Range 660 mm 240 mm 660 mm Adjustable Range 60…660 mm 40…240 mm 60…660 mm Switching Hysteresis* <1 % <0,5 % <1 % Light Source Laser (red) Laser (red) Laser (red) Wave Length... - Page 6 Connection Diagram 10 to 30 V supply power A1/ 1 Switching output A1 A2/ 2 Switching output A2 Error Output Interface input lead Interface output lead – Minus Shield Housing Dimensions Transmitter Diode Receiver Diode Screw M4 = 0,5 Nm...
-
Page 7: Installation Instructions
= Teach-In Switching Point with Key Potentiometer for Output A2 Ý = Rotary selector switch Complementary Products (see catalog) wenglor offers Connection Technology for field wiring. Suiting Mounting Technology No. Suiting Connection Technology No. Interface Cable S232W3 Protection Housing Set ZSP-NN-02 Protection Housing ZSV-0x-01 4. -
Page 8: Initial Operation
5. Initial Operation Please control the proper connection of all conductors. Impress a supply voltage of 10...30 V DC. The LEDs A1 resp. A2 will now light up, if an object reaches the respective switching distance. The settings can be operated either with the RS-232 interface or manually. 6. -
Page 9: Manual Settings
7. Manual Settings This wenglor sensor is equipped with programmable output stages. Either PNP, NPN or Push-Pull can be ® selected. At the delivery status, PNP-stage is set. By the position of the rotary selector switch A1NC, A1NO, A2NC or A2NO you define, if the respective output operates as Normally Open or Normally Closed after the teaching process. - Page 10 Background Teach-In: HT Sensor • level the light spot at the background (e. g. conveyor belt) • press the minus key briefly è The teach mode HT is indicated by Making point the minus key LED , which lights up Hysteresis Ý...
- Page 11 Software Tools Software for the interface for download under: www.wenglor.com Interface configuration Baud rate (Delivery status): 38.400 baud (adjustable, view page 16) 8 data bits, no parity, 1 stop bit Plug connectors of the wenglor Plug Adapter S232W3: ® • 8-pin M12 plug connector for connecting the power supply and the outputs •...
- Page 12 Protocol for Communications via the RS-232 Interface Frame Layout for Data Transmission Transmitting Partner Characters (ASCII) Receiving Partner Frame Segment Start Character / (ASCII 47) Connect Frame header è Length information 2 Byte Connect Frame header è Command Bytes 2 Byte Frame header è...
- Page 13 Interface commands for CP70 and CP25 In the following commands is: = place holder for entered and emitted values = place holder for the Checksum Sensor Settings Sensor Reset: The reset sets the switching points back to delivery status and deactivates time delays, filter functions or extra hysteresis.
- Page 14 Off-Delay Output A2: /030Z2xxqq. answer: /040MZ2xxqq. xx= 00...99 Delay=xx times 10 ms Example: /030Z25071. Delay=500 ms answer: /040MZ2503B. Normally Open function Output A1: /020A115C. answer: /030MA1110. Normally Closed function Output A1: /020A105D. answer: /030MA1011. Normally Open function Output A2: /020A215F. answer: /030MA2113.
- Page 15 Set switching-off point for output 1: For flexible setting of the switching-off point resp. diminution of the switching hysteresis with the use of the filter function. Check switching function on sufficient hysteresis afterwards. /060S3xxxxxqq. Acceptance: /020MS332. Refuse: /020XS3qq. xxxxx: Value in 1/100 mm Set switching-off point for output 2: For flexible setting of the switching-off point resp.
- Page 16 Change baud rate The baud rate of the sensor is standardized with 38400 baud. If you want to change the baud rate, proceed as follows. Open your hyper terminal and take the following settings: Baud rate: 38400, Data bit: 8, Stop bit: 1, Parity: none, Flow control: none.
- Page 17 Query Off-Delay Time for Output 2: /020WZ222. answer: /050WZ20xxqq. xx times 10 ms: Off-Delay Time for Output A2 in ms Query On-Delay Time for Output A1: /020WZ323. answer: /050WZ30xxqq. xx times 10 ms: On-Delay Time for Output A1 in ms Query On-Delay Time for Output A2: /020WZ424.
-
Page 18: Maintenance Instructions
• It is advisable to clean the lens and the display, and to check the plug connections at regular intervals. • Do not clean with solvents or cleansers which could damage the device. 9. Proper Disposal wenglor sensoric gmbh does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. -
Page 19: Eu Declaration Of Conformity
10. EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in download area.
