. AZZA Hub Func�on Descrip�on :

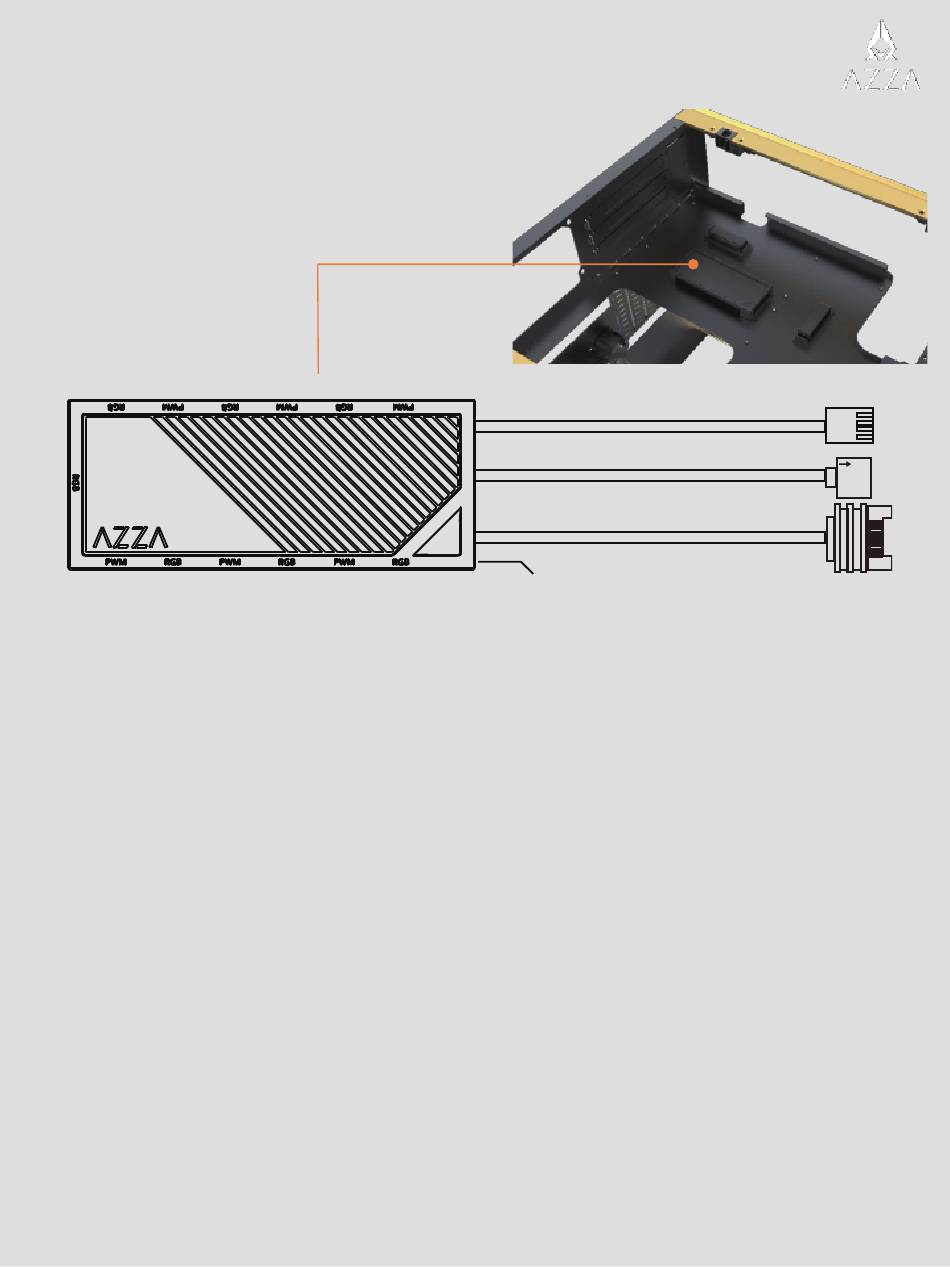

Ports and connectors
1.) 7x3 pin ARGB ports （supports ARGB devices : ARGB fan, ARGB strips...etc）
2.) 6x4 pin PWM fan ports
3.) 1x2 pin connector to Reset (or LED) switch
4.) 1xSATA power connector
5.) 1x3 pin ARGB connector to MB
6.) 1x4pin PWM fan connector to MB
Functions:
1.) Total of 17 lighting modes
2.) Lighting modes can be controlled by Reset (or LED) switch, or can be controlled by MB.
(Hold the LED button for 3 seconds to switch the RGB control function between motherboard
RGB software and LED button)
A.) Magnet on the back of the hub box or using velcro on the back of the hub box,
it can put in any place inside the metal part of the case.
B.) 6 sets of ARGB port next to PWM port to ease the connection on fans
3 Pin Addressable RGB
SATA power connector
2 pin connector to Reset(or LED) Switch
4 Pin PWM
