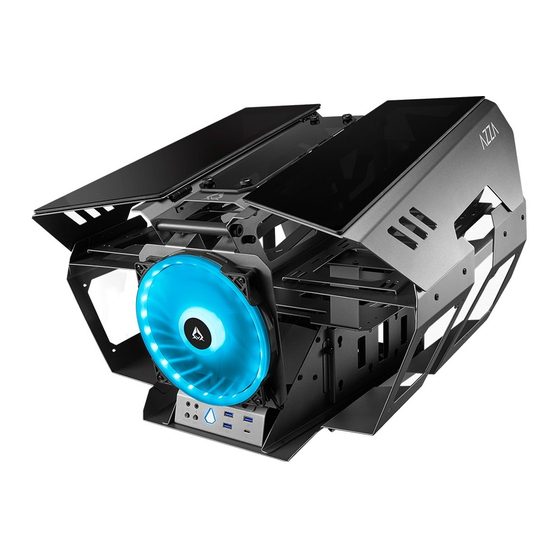

Summary of Contents for AZZA OVERDRIVE

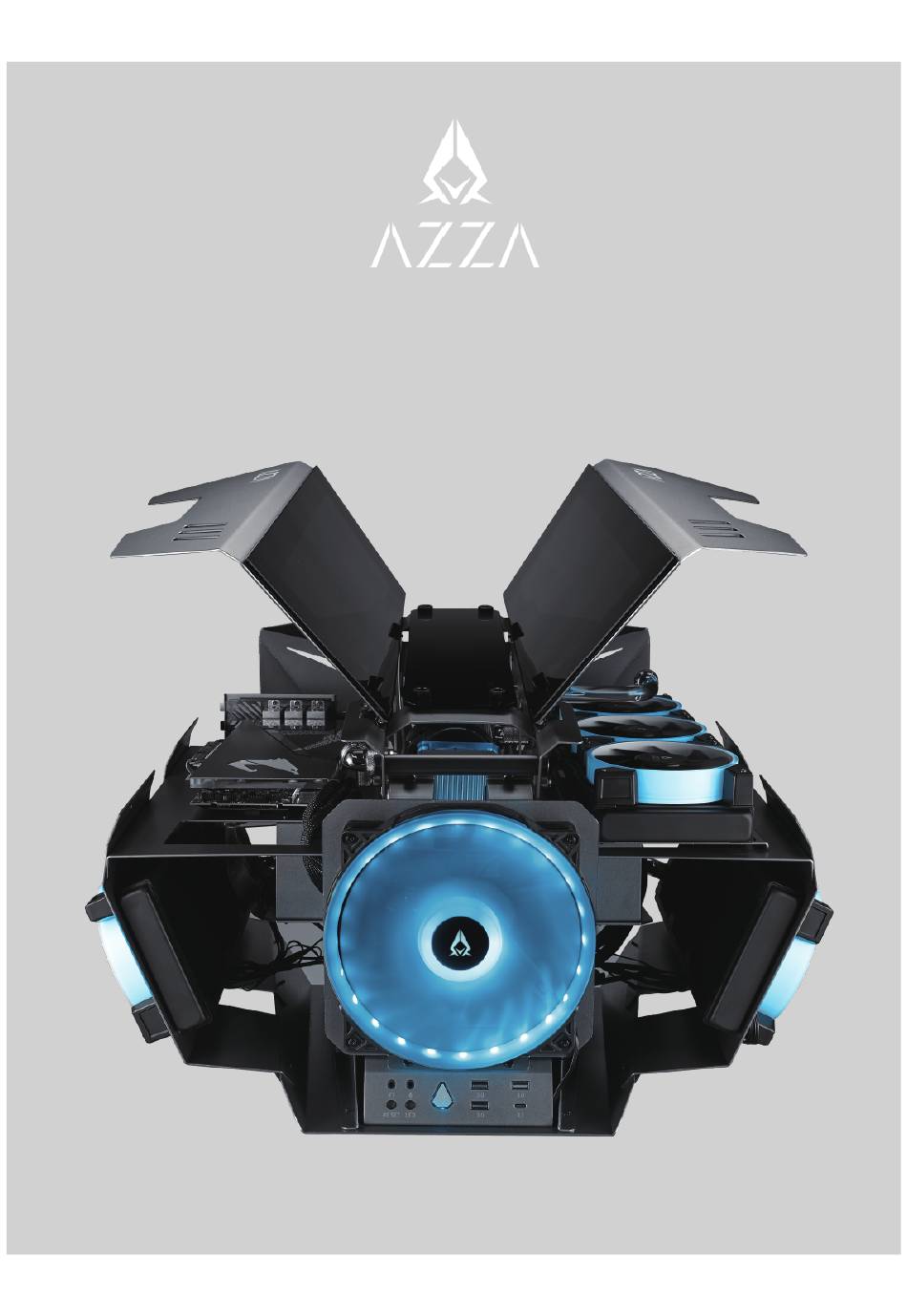

- Page 1 OVERDRIVE...
- Page 2 Easy Installation Cooler: eliminating the need to remove the motherboard Radiator bracket x 2 - Support 280/360mm on top two sides. Accessories 300 mm PCI-e 3.0 Riser Cable AZZA Hub (RGB+Fan Controller) x1 PCI-e Slot Brackets x2 Decorative Backplates x2...
-
Page 3: Front Panel Functionality
. Front Panel Functionality : Front Fan: 200mm Addressable RGB Fan included Front I/O: Reset / LED / Audio / Mic / USB3.0*3 / Type C... -
Page 4: Motherboard Installation
. Motherboard Installation : Turn the screws counterclockwise Put the motherboard in from behind. to remove the glass. Screw the motherboard onto the tray through the chassis. -
Page 5: Power Supply Installation
. Power Supply Installation : Loosen the hand screws to remove the power supply bracket. Attach the power supply to the bracket before placing it back in. - Page 6 . Fan & Radiator Installation : 240 or 360 mm radiators or 6*120 mm fans on the sides...
- Page 7 . Fan & Radiator installation : • When installing a radiator: Use long screws to affix the fan and radiator onto the chassis as shown. • When installing fans only: Use nuts on the rear of the screw to affix the fan onto the chassis as shown.
- Page 8 . Reservoir & Pump Installation : Turn the handscrews counterclockwise to remove Install Reservoir and/or Pump...
- Page 9 . Graphics Card or Radiator Installation : Supports up to 280 mm or 360 mm radiator You can choose either side to install Graphics Cards or additional radiators Graphics Card length up to 400 mm / 3 slots...
- Page 10 . Graphics Card Installation: Attach the EVA foam supplied in the parts kit to support the graphics card PCI-e cable installation: Plug the cable onto the motherboard by passing the cable through the hole as shown...
-
Page 11: Storage Drive Installation
. Storage Drive Installation : Remove the 2 handscrews. Lift and pull away to remove. Disk Drive Mounts on both sides: Disk Drive Mounts on both sides: Two 2.5” drives or one 3.5” drive... - Page 12 . Rear Cover Installation : Slide into cut-out Screw to secure...
- Page 13 4 Pin PWM 3 Pin Addressable RGB SATA power connector 2 pin connector to Reset(or LED) Switch Ports and connectors 7x3 pin ARGB ports（supports ARGB devices: ARGB fan, ARGB strips…etc） 6x4 pin PWM fan ports 1x2 pin connector to Reset (or LED) switch 1xSATA power connector 1x3 pin ARGB connector to MB 1x4pin PWM fan connector to MB...
- Page 14 300 mm PCI-E 3.0 Cable(Support EATX、ATX Motherboard)
