Page 2: Installation Instructions
Installation Instructions 1. Specifications 2. Chassis Parts 3. Removing The Top Glass Panel 4. ITX Motherboard Mount 5. Power Supply Installation 6. 2.5"SSD Installation 7. Fan Installation 8. Digital RGB Fan Installation For Motherboard... -
Page 3: Specifications
Specifications Model Model Name: PYRAMID MINI 806 Model Number: CSAZ-806 Specifications Type: MINI ITX Tower Material: 1.5mm SPCC+ 2.0mm Aluminum 4 sides panel are tempered glass Side Panel Window: Max CPU Cooler Height: UP to 85mm Max Video Card Length:... -
Page 4: Chassis Parts

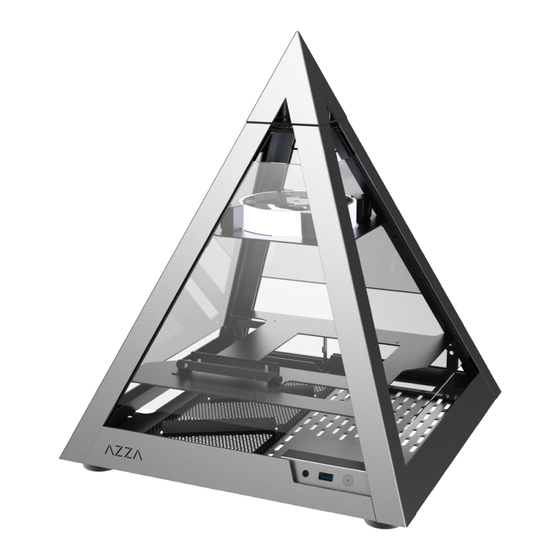

Chassis Parts Fan cable management cover TOP tempered glass panel cover Pyramid structure Screws for 2.5" SSD bracket Spring bolt screw of top panel cover Fan bracket 12cm ARGB Fan Removable(magnetic) dust proof mesh 2.5" SSD bracket Power supply rack PCIe slot I/O Ports: Power button,USB 3.0 x 1 , HD Audio... - Page 5 Removing The Top Glass Panel Lift to remove top panel Loosen the four screws...
- Page 6 ITX Motherboard Mount...
-
Page 7: Power Supply Installation
Power Supply Installation SFX Power Supply * Product photos are for reference only. -
Page 8: Ssd Installation
2.5"SSD Installation * Product photos are for reference only. -
Page 9: Fan Installation
Fan Installation ■ Fasten the fan screws ■ Secure the fan to the top of the Pyramid. * Manage the fan cables by hiding cable cover... - Page 10 Digital RGB Fan Installation For Motherboard The addressable RGB fans can connect directly to the 5V addressable RGB headers of compatible motherboards, such as those from MSI™, ASUS™, Gigabyte™ and AsRock™. Please note: Only 5V addressable headers from compatible motherboards are supported. Please do NOT connect the fan to a 12V non-addressable header.
