Summary of Contents for AZZA Celesta 340

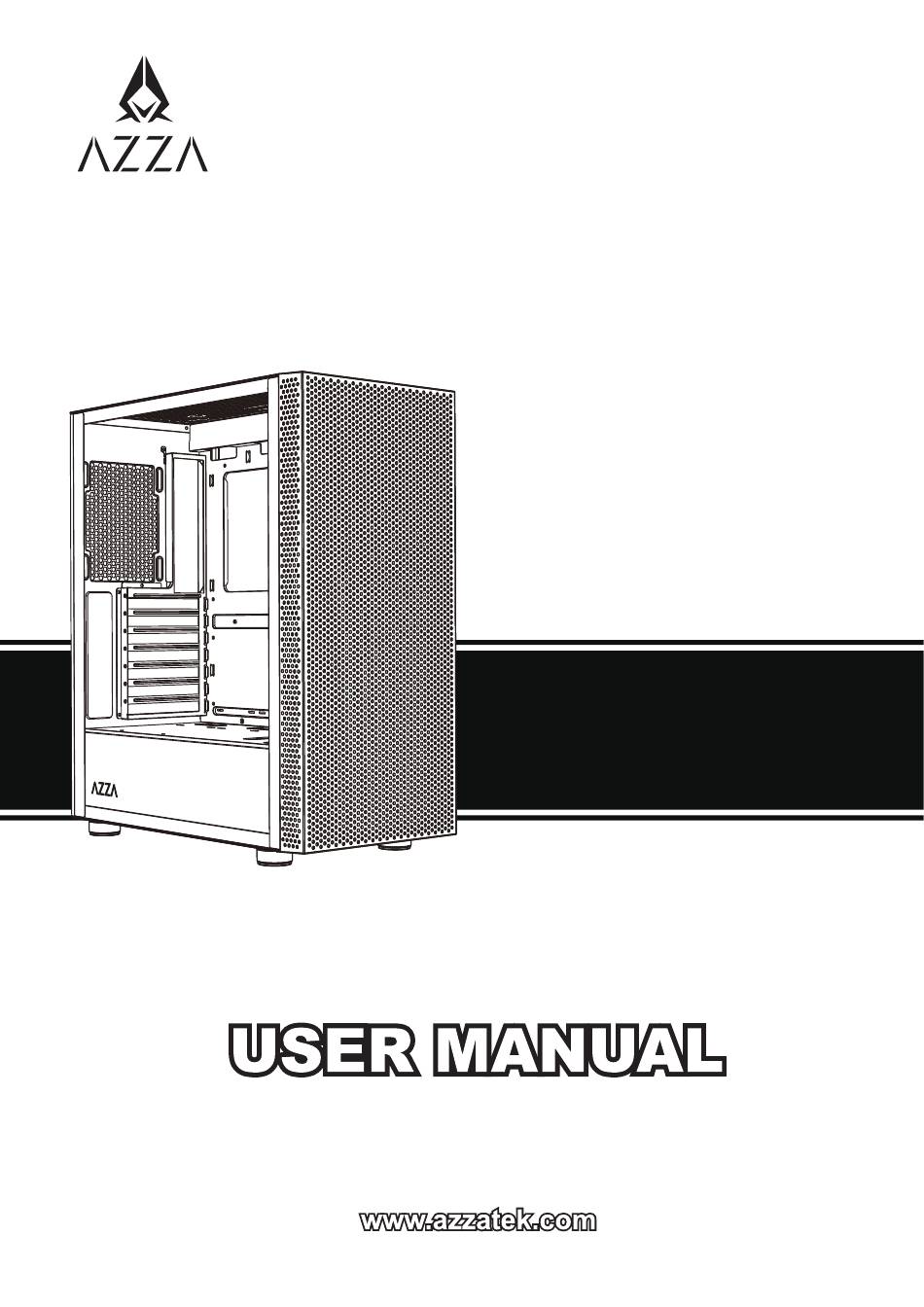

- Page 1 Celesta 340...
- Page 2 Installation Instructions 1. Specifications 2. Chassis Parts 3. Control Panel Functions 4. 3.5”/2.5” HDD/SSD Installation 5. Cooling System Installation 6. ARGB Control Modes Switching...
-
Page 3: Specifications
Specifications Model Model Name: CELESTA 340 Model Number: CSAZ-340/ CSAZ-340F Specifications Type: ATX Mid Tower Color: Black/Black(interior) Side Panel Window: Left side panel: tempered glass with rubber mounts Max CPU Cooler Height: UP to 160mm Max Video Card Length: Up to 350mm long video card... -
Page 4: Chassis Parts
Chassis Parts Removable (magnetic) dustproof mesh 2.5" SSD metal tray x 2 Right side metal panel Front panel ARGB led light strip Led light guide mesh Multifunctional hard disk bracket Multifunctional hard disk cage Steel dust filter Sliding tempered glass panel... -
Page 5: Control Panel Functions
Control Panel Functions POWER USB 3.0 (Blue) RESET USB 2.0 (Black) Audio... - Page 6 3.5 ˝/ 2.5˝ HDD/SSD Installation MAX 350mm video card MAX 350mm video card ▪Supports up to 350mm long video cards. 3.5″ 3.5″ 2.5″ 2.5″ ▪ Multifunctional hard disk bracket support 3.5” HDD or 2.5” SSD x 1 ( ▪2.5" SSD metal tray support 2.5” SSD x 2 ▪Multifunctional hard disk cage support 3.5”...
- Page 7 Cooling System Installation Front 120mm x3 Max Height of Radiator 360 mm 140mm x3...
- Page 8 Cooling System Installation Rear 120mm x1...
-
Page 9: Cooling System Installation
Cooling System Installation 120mm x2 140mm x2 Max Length of Radiator 280 mm... - Page 10 ARGB Control Modes Switching ※To control the front panel ARGB lighting modes, press the LED button to cycle through 13 RGB lighting modes. ※Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button. ※To synchronize all addressable RGB light devices, it needs to be switched to be controlled only by the motherboard.
- Page 11 ARGB Control Modes Switching ▪SATA connector plug to Power Supply. ▪ARGB 3pin connector plug to the 5V ARGB port of the motherboard. ※To synchronize all addressable RGB light devices, it needs to be switched to be controlled only by the motherboard.
