AZZA OPTIMA 803 User Manual

Power Switch
Tempered glass top panel and front panel x2
Hurricane II Digital RGB fan x2
Tempered glass side panel x2
2.5" SSD brackets x2
3.5" HHD brackets x2

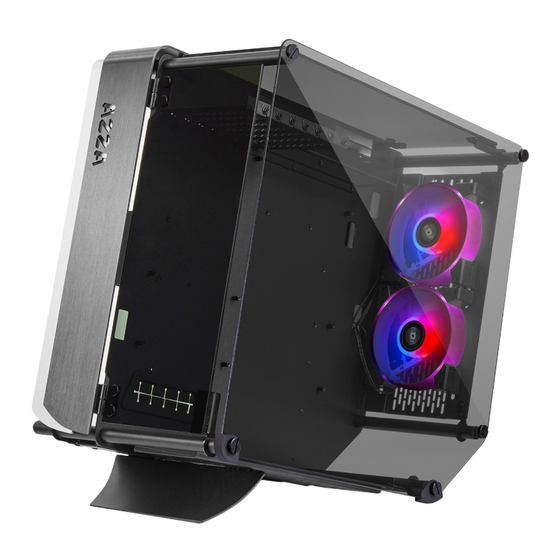

Model Name Optima 803
Model Number CSAZ-803
Specifications
Type ATX Mid Tower
Black(exterior)/black(interior)
Color
Left & Right Side of panel: Tempered Glass with rubber mounts
Side Panel Window
Top & Front side of panel : Aluminum plate and Tempered Glass with rubber mounts
Max CPU Cooler Height Up to 150mm
Max Video Card Length Up to 280mm long Video card
Power Supply Not Included
ATX
Motherboard Compatibility
Expansion
External 5.25" Drive Bays 0
Internal 2.5" Drive Bays Up to 6
Internal 3.5" Drive Bays Up to 2
Expansion Slots 7
Top Ports Power Button
Cooling System
All Digital RGB light devices controlled by RF Remote
Standard configuration has an RF connector and a remote controller.
Digital RGB Light Effects
If the motherboard has the WS2812B Individually Addressable RGB LED strip
5V connector, Digital RGB light devices can be connected with motherboard
instead of the RF connector.
Physical Specifications
Metal Chassis Dimensions (HxWxD) 422 x 301 x 419 mm / 16.6 x 11.9 x 16.5 inches
Dimension with Case Stand(HxWxD) 480 x 301 x 492mm / 18.9 x 11.9 x 19.4 inches
Weight 11.3kg /25lbs
Features
High-quality tempered glass side window allows for clear visuals to
Tempered Glass on Four
inner components.
Sides Windows
Video card can be viewed from front.
2x120mm fan ports in the rear
Available Fan Ports
(2xHurricane II Digital RGB Fan included)
2x120mm fan ports on the bottom
Water Cooling Supports radiators up to 240mm in the bottom and rear.
Power Supply Support Bottom mounted ATX Power Supply
1xDigital RGB RF Remote
Accessories
1x Designed Case Stand
A
B
A. Remove the PSU plate from the case.
B.Lock PSU plate and PSU together, then assemble the PSU on the case.
