AZZA Prime User Manual

Atx mid tower
Hide thumbs

Advertisement

Quick Links

Download this manual
Prime

Advertisement

loading
Need help?

Need help?

Do you have a question about the Prime and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AZZA Prime

Summary of Contents for AZZA Prime

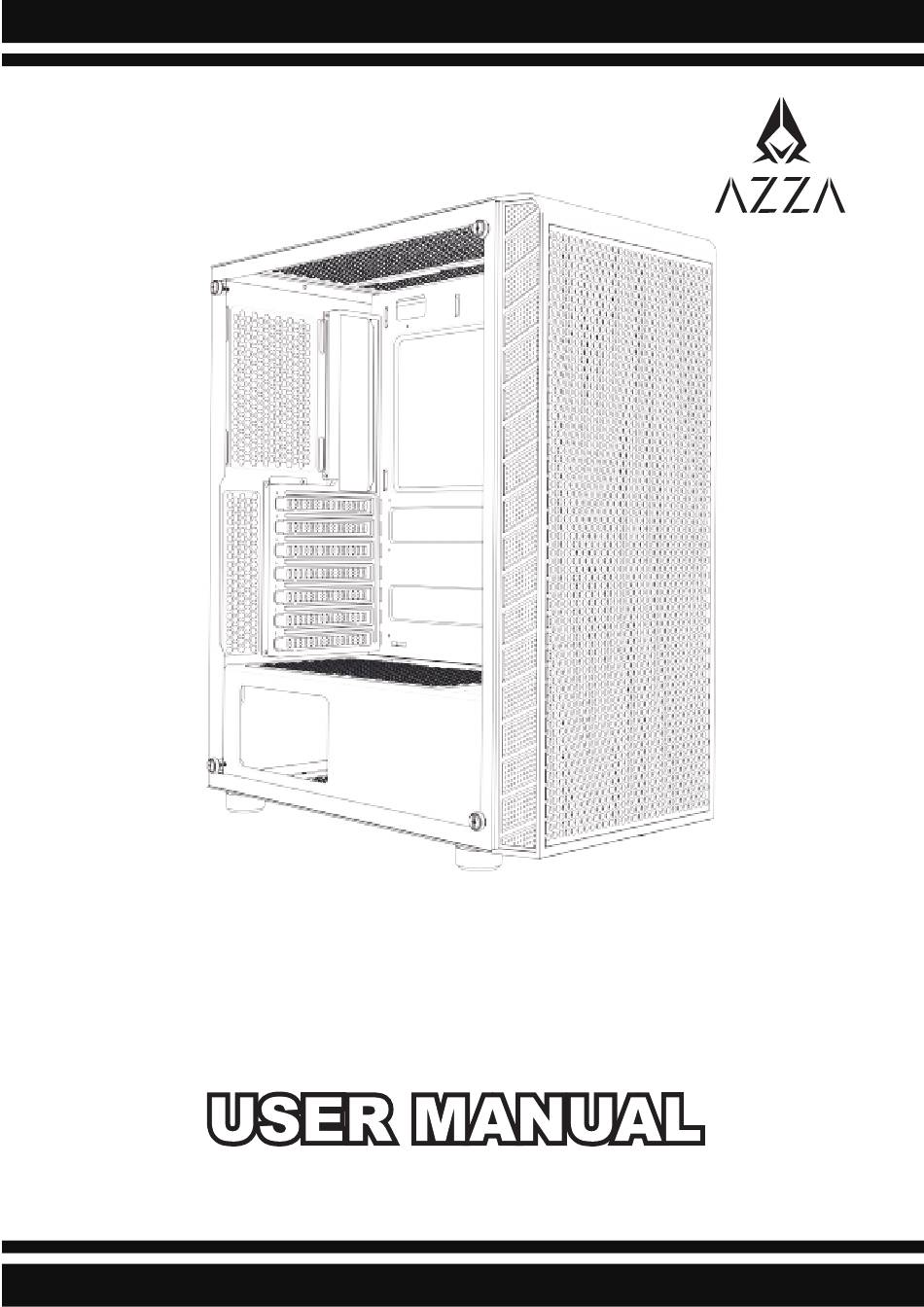

  • Page 1 Prime...
  • Page 2 Installation Instructions 1. Specifications 2. Chassis Parts 3. Control Panel Functions 4. 3.5”/2.5” HDD/SSD Installation 5. Cooling System Installation 6. ARGB Control Modes Switching 7. Fan Installation...

  • Page 3: Specifications

    Specifications Model Prime Model Name: Model Number: CSAZ-360 Specifications Type: ATX Mid Tower Color: Black/Black(interior) Side Panel Window: Max CPU Cooler Height: UP to 170mm Max Video Card Length: Up to 310mm long video card Power Supply: Not included Micro ATX ATX、...

  • Page 4: Chassis Parts

    Chassis Parts Front panel Metal side panel Hard disk cage Chassis Removable magnetic mesh Tempered glass panel Glass panel screws Removable dust filter Top I/O & buttons Shock-proof stand...

  • Page 5: Control Panel Functions

    Control Panel Functions POWER USB 3.0 USB 3.0 Audio...
  • Page 6 3.5 ˝/ 2.5˝ HDD/SSD Installation ▪Supports up to 310mm long video cards. MAX 310mm video card MAX 310mm video card 3.5″ 3.5″ 2.5″ 2.5″ ▪Multifunctional hard disk bracket support 3.5” HDD x 1 ( ▪Multifunctional hard disk cage support 3.5” HDD or 2.5” SSD x 1( ▪Two mounting holes support 2.5”...
  • Page 7 Cooling System Installation Front 120mm x3 Max Height of Radiator 240mm 140mm x2...
  • Page 8 Cooling System Installation Rear 120mm x1...
  • Page 9 Cooling System Installation 120mm x2...

  • Page 10: Cooling System Installation

    Cooling System Installation 2x120mm fan ports on the top of PSU shroud...
  • Page 11 ARGB Control Modes Switching ※Press the LED button to cycle through different ARGB 13 lighting modes.

  • Page 12: Fan Installation

    Fan Installation CONNECTOR CONNECTION Reset S/W (2pin) Button ① ARGB LED 5V (3pin) Motherboard: MSI™, ASUS™ and ASROCK™ ② ARGB LED 5V (VDG) Motherboard: Gigabyte™ ③ Fan Connector The master Fan connect to the sub-fan ④ Molex Power Supply ⑤ Other 5V/3pin ARGB devices ⑥...

This manual is also suitable for:

Csaz-360
