UTEPO UTP3226TS-PSB225 Quick Installation Manual

24-Port FE PoE+ 2-Port Gigabit Combo (RJ-45/SFP)
Unmanaged Ethernet Switch
Packing List
Please check the following items after unpacking, if any missing, please contact your local dealer.
Item
Switch
Power Cable
Mounting Accessory
Quick Installation Guide
Product Overview

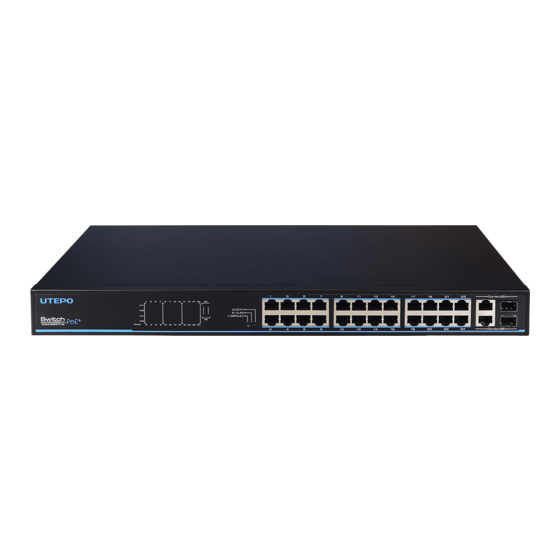

The product is 24-Port FE PoE+ 2-Port Gigabit Combo (RJ-45/SFP) Unmanaged Ethernet Switch.
The switch provides 24*10/100Mbps RJ-45 Ethernet ports, 2*1000Mbps combo (RJ-45/SFP) ports. All
downlink RJ-45 ports support Power-over-Ethernet (PoE), and deliver up to 30W power per port. It meets
IEEE 802.3af/at standard.
The switch supports 3 working modes through DIP switch: Default, VLAN and CCTV. Under VLAN and
CCTV mode, it supports PoE watchdog features, which can detect and restart the camera automatically if
it stops working. It can be widely used in video security monitoring systems, network projects, etc.

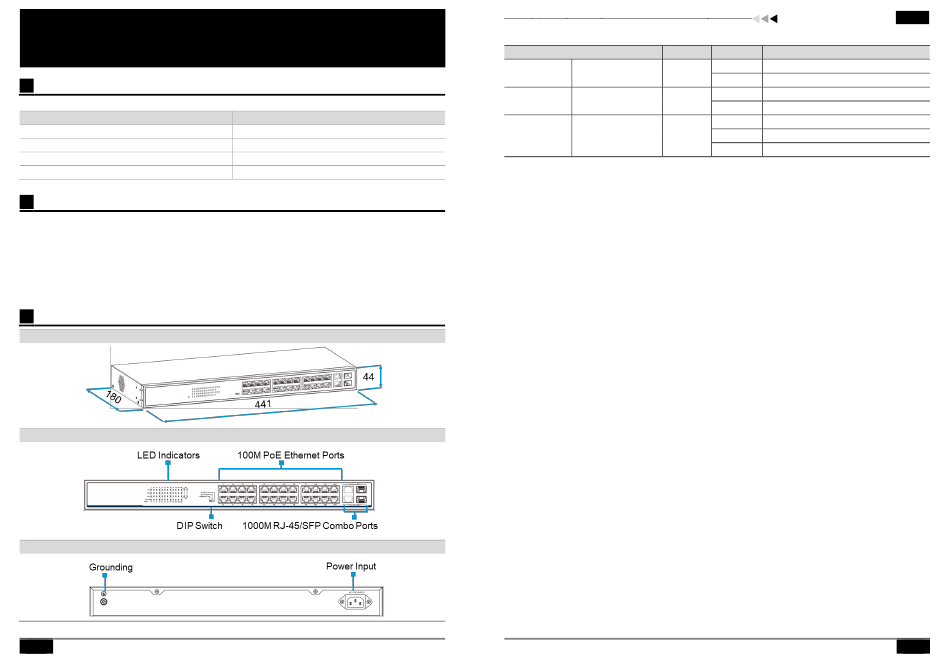

Appearance and Dimensions
Dimensions (mm)
Front Panel
Rear Panel
1
Quick Installation Guide
Quantity
1 pc
1 pc
1 set
1 pc
Indicator
Color
Indicator
PWR Power indicator Red
PoE PoE indicator Orange
Link Port indicator Green
DIP Switch

Default: All ports are free to communicate, transmission distance: 0~100m.

VLAN: Downlink ports are isolated from each other, but can communicate with uplink ports. This mode
supports PoE watchdog.

CCTV: The transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode
supports PoE watchdog.
Quick Installation Guide
Status Description
Solid On Power supply is on.
Off Power supply is off.
Solid On The port is supplying PoE properly.
Off The port stops supplying PoE.
Solid On SFP port is linking normally.
Blink SFP port is transmitting or receiving data.
Off SFP port is linking down.
2
