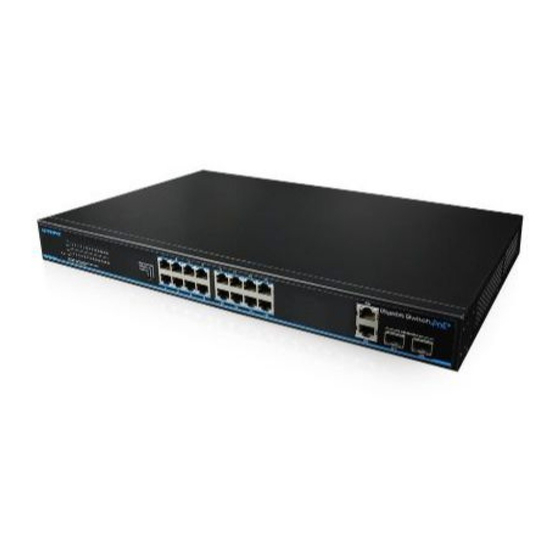

UTEPO UTP3-GSW1604TS-P200 User Manual

16-Port/24-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper Ethernet Switch
User Manual
Packing List
Open the box of the product and carefully unpack it. The box should contain the following items. Please
check before installation, if any missing, please contact your dealer immediately.
Items
Switch
AC Power Cable
Mounting Accessory
Quick Installation Guide
Product Introduction
This series products are 16-Port/24-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper
Ethernet Switch.
This series switches provide 16/24 Gigabit Ethernet RJ-45 downlink ports, 2 Gigabit Ethernet RJ-45
uplink ports and 2 Gigabit SFP uplink ports. All RJ-45 downlink ports support Power-over-Ethernet
(PoE+) and deliver up to 30W power per port.
The switches support working in three modes: default, VLAN, and flow control. It can be widely used in
video security monitoring systems, network projects, etc.
This series contains two types:

16-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper Ethernet Switch
(Short for 16-Port PoE Switch)

24-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper Ethernet Switch
(Short for 24-Port PoE Switch)
Hardware Introduction
The two types are of the same dimensions. Here takes 24-Port PoE Switch as example
Dimensions (mm)
1
Quantity
1 pc
1 pc
1 set
1 pc
16-Port/24-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper Ethernet Switch
Front Panel (16-Port PoE Switch)
Front Panel (24-Port PoE Switch)
Rear Panel (16-Port/24-Port PoE Switch)
Led Indicators
Indicators
Power Power Supply Indicator
Link Port Link Indicator
PoE Port PoE Indicator
DIP Switch
Status Descriptions
Default Default mode. All ports are free to communicate.
Downlink ports are isolated from each other, but can communicate with uplink ports.
VLAN
Enable flow control function. This mode is suitable for video surveillance transmission.
Flow control
Note:
After changing the working mode, please power on the device again to enter the corresponding mode.
Status Descriptions
On The main power supply is working.
Off The main power supply is off.
On The port is linking normally.
Blink The port is transmitting or receiving data.
Off The port links down.
On The port is supplying PoE normally.
Off The port stops supplying PoE.
2
