Hytronik HIR23 Installation And Instruction Manual

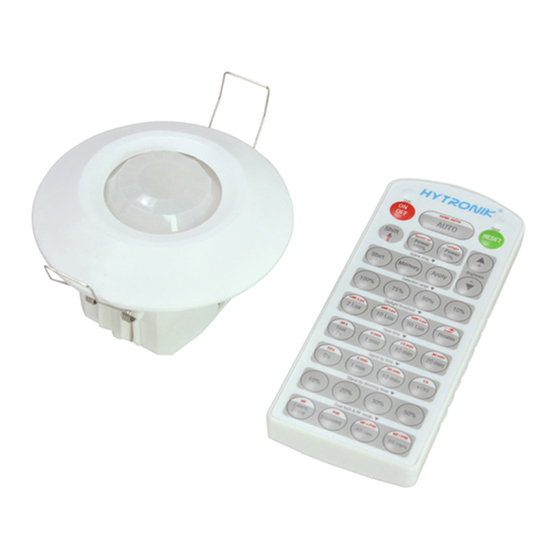

FLUSH MOUNT PIR DALI SENSOR HIR23
1. Technical Specifications
Product type Tri-level control PIR DALI sensor
Operating voltage 9.5 ~ 22.5VDC ( suitable DALI power supply)
Input current < 8mA
Power consumption < 0.5W
o
Detection angle 360
Detection area (DxH) 10 x 3m (Tangential)
Mounting height 5m (Maximum)
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 2Lux / 10Lux / 50Lux / Disable
Warmming-up time 30s
o
Operating temperature -20 C ~ +50

3. Rotary Switch Settings

A rotary switch is built inside the sensor for
scene selection / fast programming. Total
16 channels available:
Detection Hold
Channel
range time
0 100% 5s
1 100% 1min
2 100% 5min
3 100% 5min
4 100% 5min
5 100% 5min
6 100% 5min
7 100% 10min
8 100% 10min
9 100% 10min
A 100% 10min
B 75% 10min
C 50% 10min
D 100% 30min
E 100% 30min
F 100% 5s
Note: settings can also be changed by remote control HRC-11. The last action controls.

5. Functions

This DALI sensor is designed for incoporated in the DALI system, taking command from the DALI master,
accepting and carrying out the grouping work with up to 64 lumanaires. It can switch on/off, or dim the
assigned group members and feed back the status to the DALI master.

5.1 Tri-level Control (Corridor Function)

Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas require a
light change notice before switch-off.
It offers 3 levels of light: 100%-->dimmed light-->off; and 2 periods of selectable waiting time: motion
hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.

5.2 Synchronization Function

By connecting the DALI terminals in parallel (see wiring diagram), no matter which sensor detects motion,
all HMW23 in the group will turn on the lights when surrounding natural light is below the daylight
threshold. The sensor antenna is shared and the detection area could be widely enlarged in this way.
Installation and Instruction Manual
o
C
Rotary switch preset (Please
see the location in 2. Installation)
Stand-by Stand-by Daylight
time dimming level threshold
10s 10%
5min 10%
10min 10%
30min 10%
0s Disable
+∞ 10%
+∞ 30%
10min 10%
30min 10%
+∞ 10%
+∞ 30%
+∞ 10%
+∞ 10%
+∞ 10%
+∞ 30%
10s 10%

2. Installation

Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect supply before installing.
Infrared receiver
Rotary switch preset
Disable
2Lux
10Lux
30Lux

4. DALI group selection

10Lux
30Lux
DALI group configuration can be done on PC or on the rotary switch:
Disable
1. There are 16 channels available on the rotary switch. "0" is
2Lux
for DALI broadcast, the rest 15 channels is for end user to
10Lux
define the application unit.
30Lux
2. PC grouping can overwrite rotary switch grouping, the last
Disable
setting controls.
30Lux
3. The rotary switch channel is corresponding to the groups
10Lux
listed below:
50Lux
Disable
Switch channel
2Lux
0
1
2
3
4
5
6
7
70mm
4
3
(1) Sensor inset
(2) Lens pluggable
(3) Protection cover (covers the
high-voltage terminals, and leaves
Photocell
the DALI terminals exposed).
1
LED indicator
(4) Ceiling (drill hole O 70mm).
PIR
2
Note: the blind can be plugged to the cover for
reducing detection angle if necessary.
DALI group Switch channel
broadcast 8
group 0 9
group 1 A
group 2 B
group 3 C
group 4 D
group 5 E
group 6 F
64.7
Blind
DALI group selection (Please
see the location in 2. Installation)
DALI group
group 7
group 8
group 9
group 10
group 11
group 12
group 13
group 14
HIR23-20160912-A2
