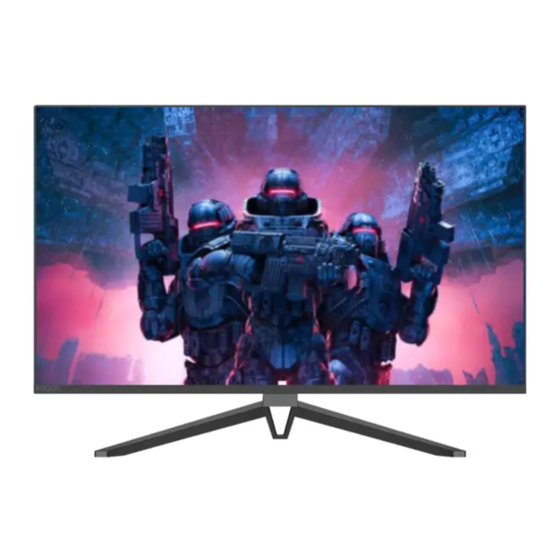

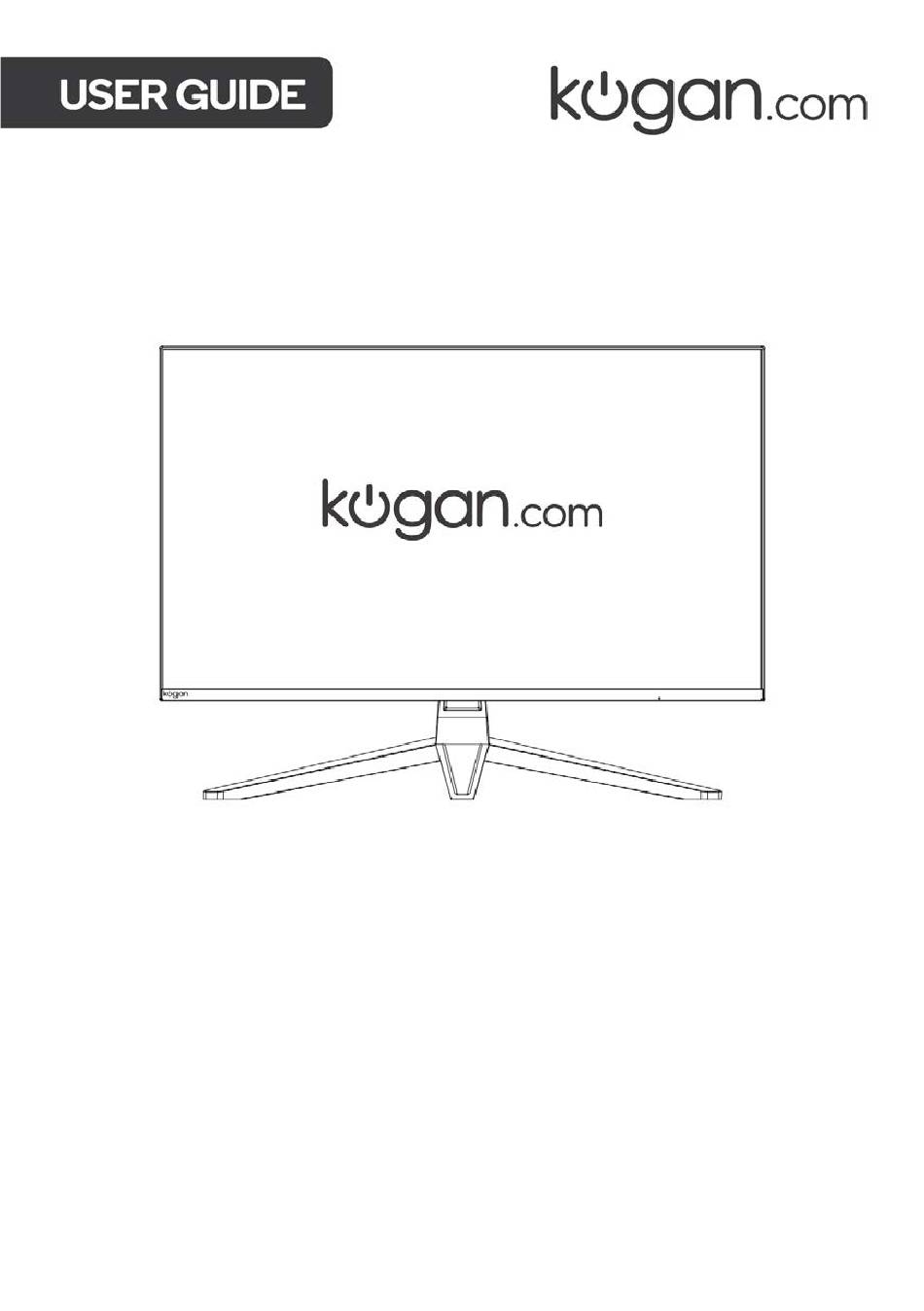

- Page 1 32” FULL HD 75HZ USB-C FREESYNC MONITOR (1920 x 1080) KAMN32F7USA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Read all instructions before using the appliance and retain for reference. • Unplug the monitor before cleaning it. • Use a clean, slightly dampened cloth to wipe the main monitor body. • To clean the screen, turn it off unplug it and wait for it to cool completely, then wipe it with a dry micro-fibre cloth. - Page 4 COMPONENTS Monitor Stand arm Base Stand screw VESA screws (x4) (M6x16mm) (x1) HMDI cable USB-C cable Power cable User guide...
- Page 5 OVERVIEW Button Function a. Press and hold the “Power” button for 6 seconds to turn the monitor on/off. b. When the monitor is on, press the "Power " to wake up the main Power menu for one second. c. Select "direction key" to select the items to be adjusted up and down in the main menu.
- Page 6 Button Function HDMI input USB-C input Audio out Power input...
- Page 7 ASSEMBLY WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand. Attach the stand base to the stand Carefully remove the monitor, stand arm using the supplied M6 screw. arm and stand base from the box. Insert the connection block into the Lift monitor up straight and remove back cabinet and push down until...
-
Page 8: Vesa Mount
VESA MOUNT VESA mounting pattern 75 x 75mm, screw size M4. Note: VESA mount or mounting accessories are not included. Open the box, take out the monitor with protection foam attached and gently place it on a desktop or table. Ensure all components are removed from the foam covering. - Page 9 CONNECTIVITY Power cable Connect the included power cable to the monitor power port, then connect the other end to a power outlet. Earphones (Audio Out) Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm audio port on your computer.
- Page 10 USB-C In order for the monitor to receive USB-C signals from the computer, use the USB-C cable to connect the monitor to the computer. HDMI In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.
-
Page 11: Operation
OPERATION Connect the monitor to the input device via HDMI / TYPE-C. Connect the power cable to the monitor, then connect the other end directly to a power socket. Use the power button to turn the monitor on. On-Screen Display The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on the screen after turning on the monitor and pressing the “Power”... - Page 12 Refer to the following pages for a detailed list of the OSD menu functions. Menu Sub-Menu Options Description Brightness ~0-100 Adjust display brightness Contrast ~0-100 Adjust display contrast ON/OFF STANDARD/MOVIE /TEXT/GAME Preset colour modes /FPS/RTS Standard Warm Colour Select colour temperature mode or Cool Temperature allow manual colour configuration...
- Page 13 Auto Select/ Select input source or allow manual Input Source HDMI/TYPE-C selection Enable or disable monitor speaker Mute ON / OFF output Volume 0-100 Adjust monitor speaker volume Reset Restore factory defaults Full Screen Display Size Select the display's aspect ratio Auto Low blue Weak...
- Page 14 ECO MODES Press “Power” left to switch ECO modes. These modes include; Standard, Text, Movie, Game, FPS and RTS and can be used to optimise settings according to your activity. Standard mode is suitable for most activities.
-
Page 15: Specifications
SPECIFICATIONS Screen size Aspect ratio 16:9 Brightness 300cd/m (typical) Panel Resolution 1920 x 1080 Refresh rate 75Hz Response time 6.5ms with Overdrive enabled(6.5ms typical) Viewing angle ≥178°(H) / 178°(V) Contrast ratio 4000:1 VESA mounting 100 x 100mm Colours 16.7M Signal input HDMI 1.4 x 1, USB-C x 1 Power 100-240V ~50/60Hz 2.5A... - Page 16 Additional functions Low Blue Light Flicker Free Physical dimensions Dimensions (w. Stand) 717.36*504.89*249.47mm Dimensions (w/o Stand) 717.36*421.46*71mm Net weight 7.2KG Gross weight 9.6KG...
- Page 17 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
