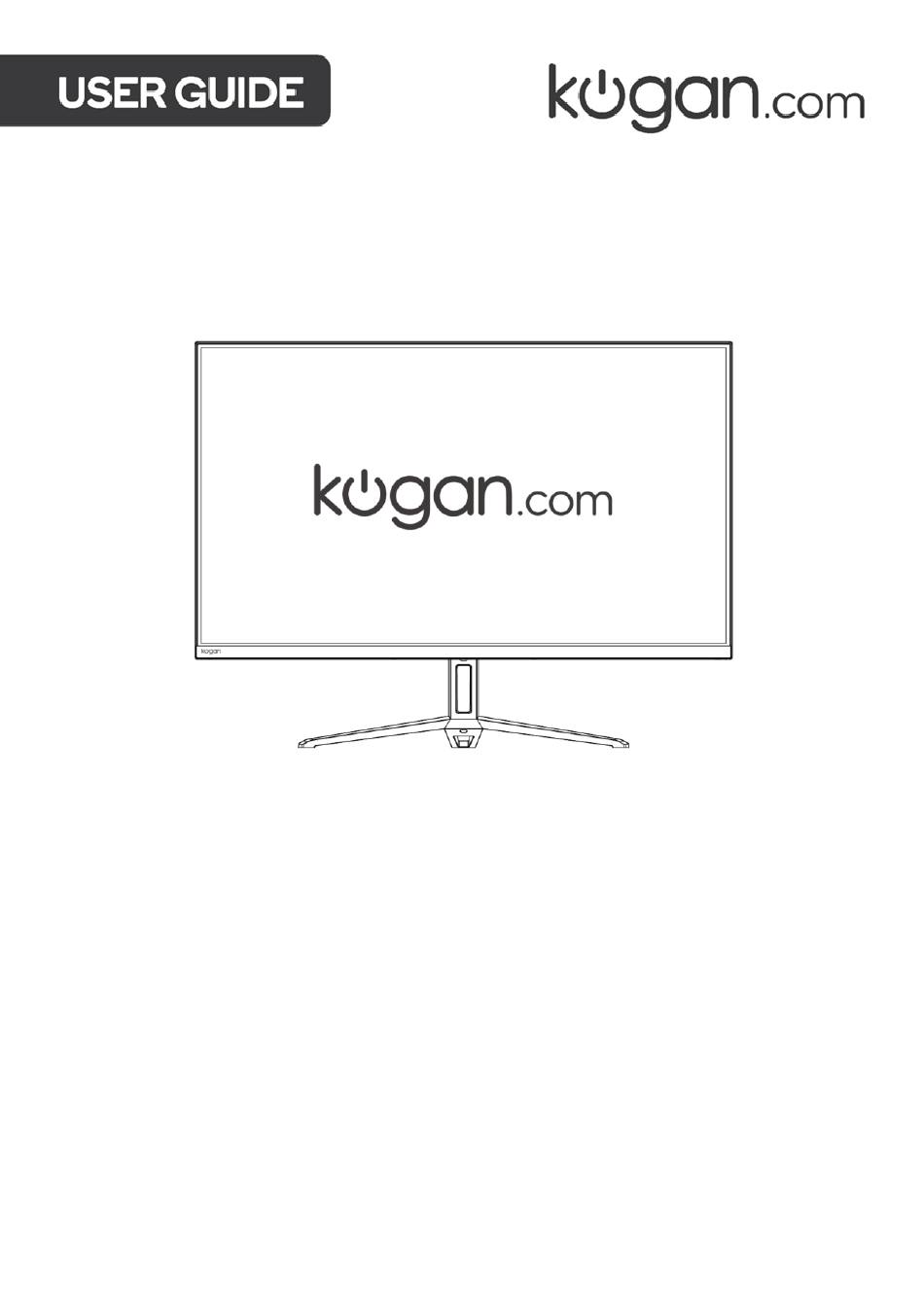

- Page 1 32” FULL HD 75HZ FREESYNC MONITOR (1920 x 1080) KAMN32F7SD...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Read all instructions in this guide before using this monitor. Retain this guide for future reference. • Unplug the monitor before cleaning it. • Use a clean, slightly dampened cloth to wipe the monitor body. • To clean the screen, turn the monitor off, unplug it and wait for it to cool completely. - Page 4 COMPONENTS Monitor Stand connector VESA screws Stand base screw Stand base (M4x10mm) (M4x10mm) (x4) Power adapter & power HDMI cable User guide cable...
- Page 5 OVERVIEW Monitor Controls Menu button Press to display the OSD menu or enter sub-menus. Down button Press to move down in the menu. Up button Press to move up in the menu. Exit button Press to exit the menu. Power button Press to turn the monitor on/off.
- Page 6 Monitor Ports HDMI port VGA port Audio in (3.5mm) Audio out (3.5mm) Power port (DC 12V)
-
Page 7: Stand Assembly
STAND ASSEMBLY WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand. Carefully remove the monitor, stand Attach the stand base to the stand connector and stand base from the connector using the provided M4 box. -
Page 8: Vesa Mount
VESA MOUNT VESA mounting pattern 75 x 75mm, screw size M4. Note: VESA mount and mounting accessories are not included. Open the box, take out the monitor with protective foam attached and gently place it on a desktop or table. Remove all components and the protective foam from the back of the monitor. - Page 9 CONNECTIVITY Power Cable Connect the power cable and power adapter together. Connect the assembled cable to the monitor power port, then connect the other end to an electrical outlet. Power cable Earphones (Audio Out) Earphones, headphones or other audio devices can be connected to the 3.5mm audio port (Audio Out) on the monitor.
- Page 10 Audio In Connect an audio cable to the 3.5mm audio port (Audio In) on the monitor and the audio port on your computer. HDMI In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.
-
Page 11: Operation
OPERATION Connect the monitor to the input device via HDMI or VGA. Connect the power cable to the monitor, then connect the other end to an electrical socket. Use the power button to turn the monitor on. FreeSync • In order to use this feature, ensure your hardware has FreeSync capability and the graphics drivers are fully up to date. - Page 12 GamePlus • Press the exit button to switch to GamePlus mode. • These overlay icons are primarily designed to assist aim during FPS games, though they can be used in other scenarios. Modes • Press the down button to switch modes (Standard, Text, Game, Movie, FPS and RTS) and optimise settings according to your activity.
- Page 13 On-Screen Display (OSD) Functions Main Menu Sub-Menu Options Description Picture ~0-100 Adjust display brightness Contrast ~0-100 Adjust display contrast Blacklight ~0-100 Adjust display blacklight Low blue Enable/disable blue light reduction Brightness STANDARD/ TEXT/GAME/ Preset colour modes MOVIE/ FPS/RTS Enable/disable dynamic contrast ratio Adjust video display area left to right H.POSITION...
- Page 14 Warm mode Red/green/blue Adjust red/green/blue levels Cool mode Red/green/blue Adjust red/green/blue levels Colour User mode Red/green/blue Adjust red/green/blue levels On/Off Enable or disable HDR mode English, 简体中, Русский, Español, Deutsch, Language Italiano, Set OSD language Français, Portugues, Turkce, Polski, Nederlands Settings OSD H.POS.
- Page 15 Signal source VGA/HDMI Adjust input source Enable or disable monitor speaker Mute output Misc Volume ~0-100 Adjust monitor speaker volume When the refresh rate reaches MPRT 75Hz, MPRT can be turned on...
-
Page 16: Specifications
SPECIFICATIONS Screen size 32” Aspect ratio 16:9 Brightness 300cd/m (typical) Panel Resolution 1920x1080 Refresh rate 75Hz Response time Viewing angle ≥178°(H) / 178°(V) Contrast ratio 1200:1 VESA mounting 75 x 75mm Colours 16.7M Signal input HDMI 1.4 x 1, VGA x 1 Power DC12V --- 4.0A Audio... - Page 17 Additional functions Low Blue Light Flicker Free Physical dimensions Dimensions (w. stand) 715.1x540.2x198.9mm Dimensions (w/o stand) 715.1x422.8x49.3mm Net weight 5.65kg Gross weight 7.27kg...
- Page 18 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
