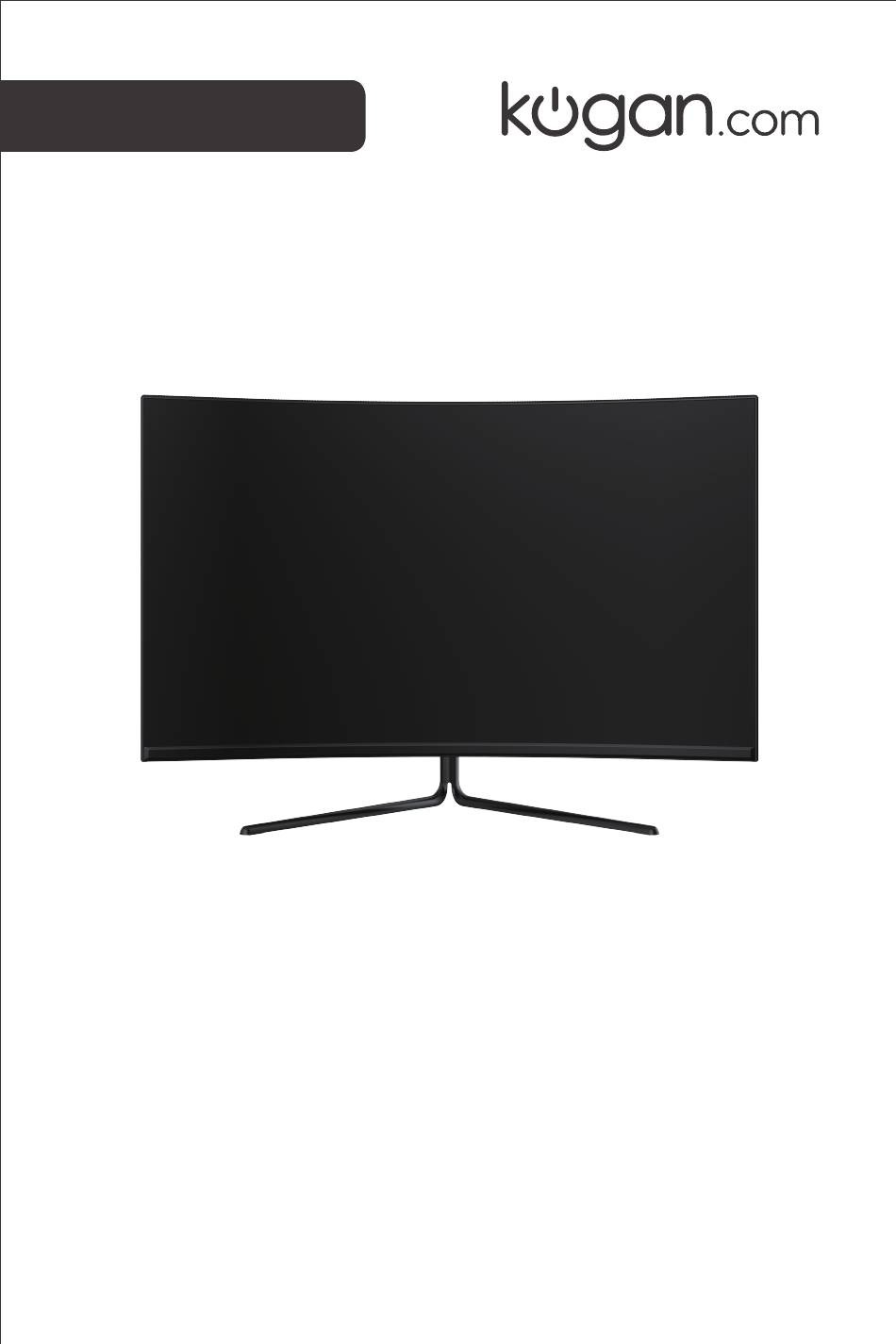

- Page 1 USER GUIDE 32" UHD CURVED GAMING MONITOR 3840x2160 60Hz KAMN32UCFLA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS Read all instructions before using the appliance and retain for reference. This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them. Do not insert any object or spray any liquid into the vents. Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking adequate ventilation. - Page 4 COMPONENTS Monitor Stand arm Base Stand screws VESA screws (PM5*11 x4) (M4*12 x4) USER GUIDE 32" UHD CURVED GAMING MONITOR 3840x2160 60Hz KAMN32UCFLA Headphone stand DP cable Power cable User guide...
- Page 5 OVERVIEW Button Function Menu button: Confirm/call up the main menu. Down button: Move down in the menu/quickly enter the GamePlus. Up button: Move up in the menu/quickly enter the ECO. Exit button: Exit/return to the previous menu/quickly enter the RGB Range. Power button: Turn on/o the monitor.
- Page 6 ASSEMBLY Open the carton, remove the stand arm, base and headphone stand. Leave the monitor in foam. Secure the stand arm to the base using one of the screws. Attach the headphone stand to the stand arm. Headphone stand Headphone stand Stand Stand arm Stand...
- Page 7 3. Attach the stand plate and stand assembly back onto the rear of the monitor. Remove the remaining protective foam and stand the monitor upright. Note: To remove the stand from the monitor, slide the quick-release button up and pull the stand assembly outwards. Quick- release button...
-
Page 8: Vesa Mount
VESA MOUNT VESA mounting pattern 75x 75mm, screw size M4. Note: VESA mount or mounting accessories are not included. Open the box, take out the monitor with protection foam attached and gently place it on a desktop or table. Ensure all components are removed from the foam covering. Press the quick release button to remove the stand plate. - Page 9 3. Remove the four VESA screws from the accessory bag and attach them to the rear casing. VESA screws 4. During hanging of the product, do not pinch the screen with your hand to avoid damaging the screen. Instructions for attaching to the specific wall mount will be included with the mount. Mount (not supplied) Notes: To prevent the monitor on the mount from failing, please install it firmly and protect it fully.
-
Page 10: Power Cable
CONNECTIVITY Power Cable Connect the included power cable to the monitor power port and then connect the other end to a power outlet. Power cable Audio Out Connect an audio output device (speakers, headphone etc.) to the 3.5mm audio port on the monitor. - Page 11 HDMI Connect an HDMI cable from the computer's display output to the monitor's display input. HDMI cable (not included) DisplayPort Use the supplied DP cable to connect the computer's display output to the monitor's display input.
-
Page 12: Operation
OPERATION Connect the monitor to your input device via HDMI or DP. Connect the power cable to your monitor and then connect the other end directly to a power socket. Use the power button to turn the monitor on. On-Screen Display (OSD) The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on the screen a er turning on the monitor and pressing the (M) button. -
Page 13: List Of Functions
List of Functions Main Menu Sub Menu Option HDMI1(2.0) Input Source HDMI2(1.4) HDMI3(1.4) Brightness 0-100 Blacklevel 0-100 Brightness/ Contrast Contrast 0-100 On/O Gamma 1.8/2.0/2.2/2.4/2.6 Picture Mode Standard/Photo/Movie/Game/FPS/RTS Color Temperature Warm/Cool/USER Color Setting Low Blue Light 0-100 0-100 Saturation 0-100 Sharpness 0-100 Response Time O /High/Middle/Low... - Page 14 Main Menu Sub Menu Option English/简体中文/한국어/РУССКИЙ/Español/ Language 日本語/Français OSD H-Position 0-100 OSD V-Position 0-100 OSD Transparency 0-100 OSD Time Out 5-100 OSD Rotation Normal/90/180/270 DP Version DP1.1/DP1.2 Adaptive-Sync On/O Other On/O /Auto Detect Reset None...
- Page 15 GAMEPLUS & RGB RANGE Press any of the buttons ( ) to activate the navigation window. Press button to switch GamePlus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.
-
Page 16: Specifications
SPECIFICATIONS Screen Size 32 inch Aspect Ratio 16:9 Viewing Angle 178°(H) / 178°(V) Pixel Pitch 0.18159(H) x 0.18159(V) Contrast Ratio 3000:1 Display Color 16.7M Resolution 3840×2160 Refresh Rate 60Hz 100-240V~ 50/60Hz 1.5A Power Input The standard voltage and power supply may vary with countries, please refer to the label at the back of the product. - Page 17 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
