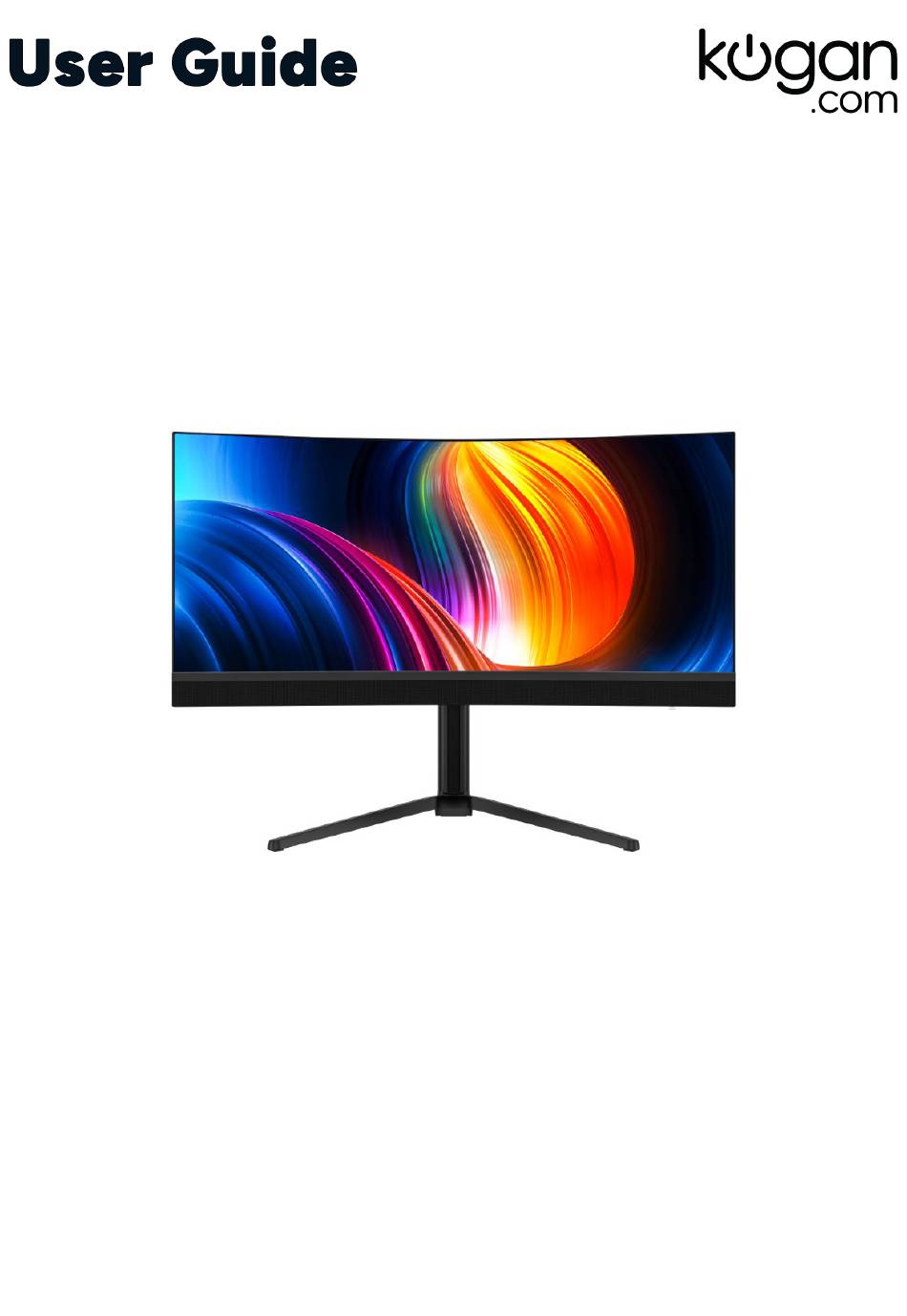

- Page 1 Infinity 34" Curved Mini LED Ultrawide Gaming Monitor USB-C, WQHD, 180Hz & 65W KAMN34MLQCLA...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Assembly Operation Specifications Notes... -
Page 3: Safety & Warnings
Safety & Warnings • Read all instructions before using the monitor and retain this user guide for future reference. • Ensure the ventilation holes on the back of the monitor remain unobstructed. • Do not insert objects or spray liquids into the vents. •... -
Page 4: Components
Components Monitor Stand Arm Stand Base Screws (x4) DP Cable Power Cable Power Adaptor USB-C Cable User Guide... -
Page 5: Overview
Overview 2 3 4 Centre Button Confirm key or access the main menu Exit Button Exit or return to the previous menu. Down Button Move down in the menu or select turn off the monitor. Right Button Quickly adjust the input signal. Up Button Move up in the menu or quickly adjust the Brightness. -
Page 6: Assembly
Assembly WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand. Before disposing of any packaging, place all items on a soft, clean and flat surface to ensure all components are accounted for. Stand Base Lay the monitor screen face down on a table, ensuring it is placed on the packing foam for protection. -
Page 7: Vesa Mount
VESA Mount VESA mounting pattern 100 x 100 mm, screw size M4. Note: VESA mount and mounting accessories are not included. WARNING: If you are not confident in wall mounting this product, consult a licensed trade professional. Open the box, lay the monitor screen facing down on a table with the monitor still resting on the packing foam. - Page 8 Follow the directions received with your mount and install the monitor on the wall or fixture as desired. Mount (not provided) Note: To prevent the monitor from falling, ensure it is securely mounted. Avoid placing or hanging any objects on the mount and ensure the mount is installed at a height of less than 2 meters.
- Page 9 Adjustments 20° 20° Rotation angle -20°~+20° 20° -5° 120mm Height adjustment Tilting angle 0-120mm -5.0°-+20°...
-
Page 10: Operation
Operation Powering the Monitor Connect the power adaptor to the power cable. Plug the adaptor into the monitor's DC port. Finally, connect the power cable to a properly grounded power outlet. DC port HDMI Connection • Use the HDMI cable (not provided) to connect the computer's HDMI port to the monitor's HDMI port. -
Page 11: Hdmi To Dvi Connection
HDMI to DVI Connection Use an HDMI to DVI cable (not provided) to connect the monitor's HDMI port to the computer's DVI port. HDMI cable (not provided) Note: Audio may not be transmitted through a DVI port. DisplayPort Connection Connect a DisplayPort cable from the computer's DisplayPort to the monitor's DisplayPort. -
Page 12: Usb-C Connection
USB-C Connection Insert one end of the provided USB-C cable into the computer's USB-C port and connect the other end to the monitor's USB-C port. Note: For MacBook/Mac users connecting to this monitor, the MacBook must be running at least MacOS version 14.5. USB-C cable USB-A-USB-B To allow your monitor to receive signals from a USB device, connect a USB-A to USB-B... -
Page 13: Audio Out Connection
Audio Out Connection Earphones, headphones or other audio devices can be connected to the monitor's 3.5mm audio port. The monitor may need to be set as the PC's default sound output device. Earphones & speakers (not provided) -
Page 14: On-Screen Display (Osd) Menu
On-Screen Display (OSD) Menu The on-screen display (OSD) menu allows you to adjust the monitor's settings and appears on the screen once the monitor is powered on and the ‘Menu’ (M) button is pressed. Press the ‘Home’ button to activate the OSD menu. Press the joystick up/down to navigate through the functions. - Page 15 OSD Lock Feature The OSD lock prevents changes to the monitor's on-screen display settings while still allowing power controls. Follow the steps below to activate or deactivate the OSD lock. Activating the OSD Lock Access the OSD menu by navigating to: System Setting > OSD Lock > On. Once enabled, only the monitor's power functions (on/off) will be available.
-
Page 16: On-Screen Display (Osd) Functions
On-Screen Display (OSD) Functions The monitor's functions may vary depending on the model and the functions described in this user guide are provided for reference only. Main Menu Sub Menu Options Standard Mode Off/On (Custom) RTS/RPG Mode Off/On (Custom) FPS Mode Off/On (Custom) MOBA Mode Off/On (Custom) - Page 17 Eye Shield Off/On Remind Picture Settings Reset Picture Off/On Settings All Game Mode Wide Screen/25”/sPX Mode Off/Auto/HDR Game/HDR Movie Adaptive-Sync Off/On Local Dimming Off/On Colour Enhancement: Off/Level 1-10 CR Enhancement: Off/Level 1-5 Shadow Balance: 0-100 Night Vision Mode: Off/Level 1-2/Auto Level1-2 Picture Enhancement...
- Page 18 Colour: Red/Yellow/Green/Cyan/Blue/Purple/ Colourful Strength: Highlight/Standard/Soft Mode: Normal/Breath/Flicker/Plain Led Bar Water/Star/ Colourful Pearls/Colourful Water Game Fore colour Illumination (Red/Green/Blue/Yellow/Purple/Cyan) Back colour (Red/Green/Blue/Yellow/Purple/Cyan) Reset Game Off/On Illumination Volume 0-100 Audio Mute Off/On Audio Settings Reset Audio Off/On Settings Off/PIP Mode/PBP 2Win 1:1/PBP 2Win 2:1/ PIP/PBP Mode PBP 2Win 1:2 Sub-Signal...
- Page 19 简体中文/English/한국어/ / Portugues do Brasilazil/ Deutsch/Nederland/ Suomi/Français/Eλληvικαά /Indonesia/ Italiano/ Русскии ̆ /Español/ไทย/Украı ̈ н ська /Tie ế n g Vie ̂ ̣ t / Language 日本語/Malaysia/Polskie/Português/ 繁體中文/Türkçe OSD Time Out 5- 60 OSD H-Position 5-100 OSD V-Position 0-100 Transparency Hotkey1 Setting Brightness/Contrast/Volume/Audio Mute/ Shadow Balance/Game Crosshair/Magnifier System...
-
Page 20: Specifications
Specifications Screen Size 34 inches Aspect Ratio 21:9 Viewing Angle 178° (H)/178° (V) Contrast Ratio 4000:1 (TYP) Colour 16.7M Resolution 3440x1440 19.5V ⎓ 9.23A Refresh Rate 180Hz Power Input Without Stand 806.1 x 394.3 x 128.3mm Product Dimensions With Stand 806.1 x 600.66 x 302.1mm Forward tilting: -5°... - Page 21 Power Power Supply DC 180W 19.5V Input Power TYP. 56W, MAX. 215W Standby Power <0.5W Indicator Power button (Joystick) Weight Net Weight 7.7kg Gross Weight 11.45kg Wall Mount Size 100 x 100mm Adjustable Height Adjustable Swivel Tilt...
-
Page 22: Notes
Notes... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
