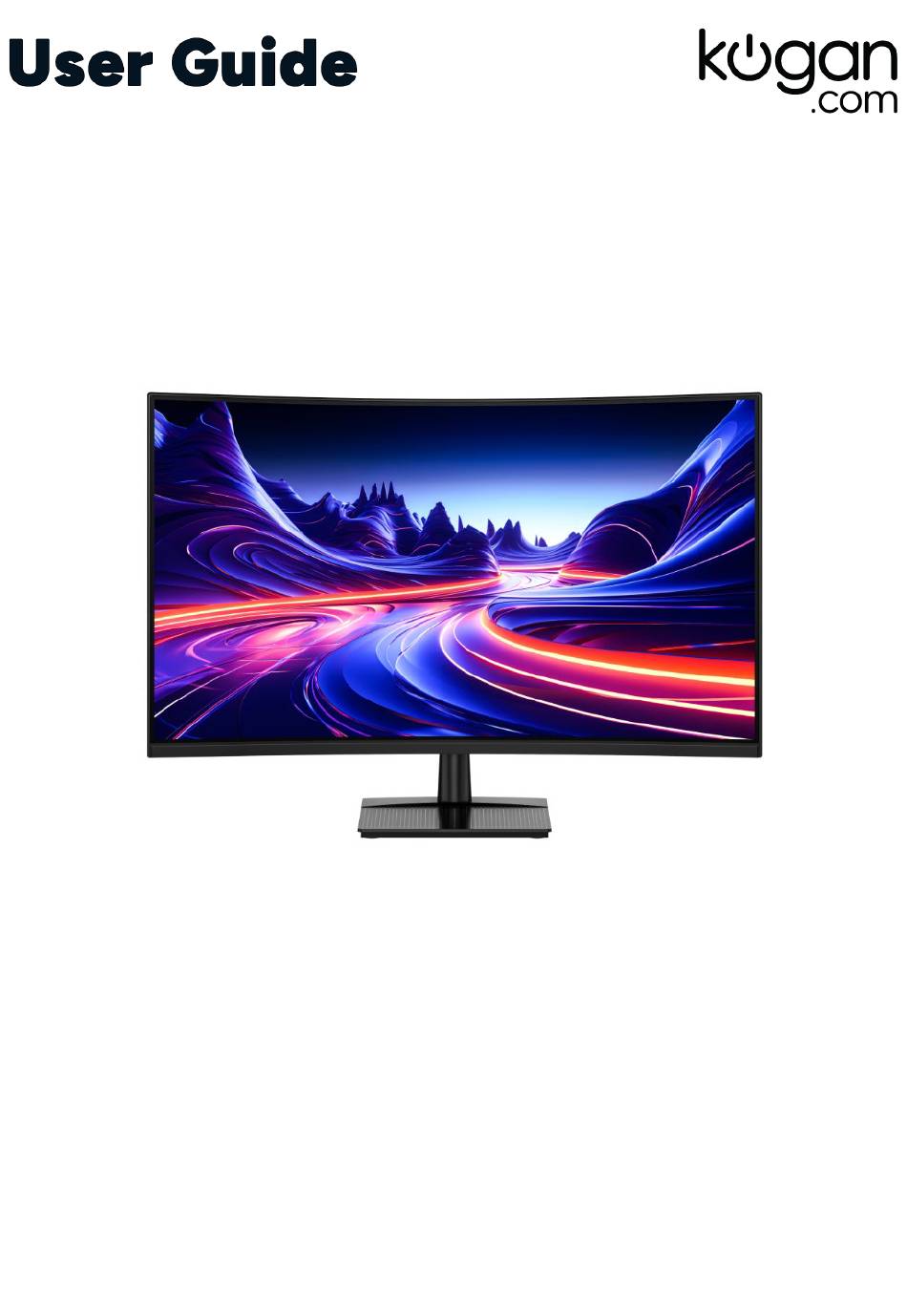

- Page 1 32" Curved Full HD 240Hz 1ms FreeSync Gaming Monitor (1920 x 1080) KAMN32F24LA...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Assembly Operation Specifications Notes... -
Page 3: Safety & Warnings
Safety & Warnings • Read all instructions before using the monitor and retain this user guide for future reference. • Ensure the ventilation holes on the back of the monitor remain unobstructed. • Do not insert objects or spray liquids into the vents. •... -
Page 4: Components
Components Monitor Stand Arm Stand Base DP Cable Power Cable Power Adaptor User Guide... -
Page 5: Overview
Overview Controls Menu button Press to enter sub-menus and quickly enter the main menu. Down button Press to move down in the menu. Up button Press to move up in the menu. Exit button Press to return to the previous menu. Power button Press to turn on/off the monitor. - Page 6 Ports DC port DP port HDMI port Audio port...
-
Page 7: Assembly
Assembly • Before disposing of any packaging, place all items on a soft, clean and flat surface to ensure all components are accounted for. • The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand. -
Page 8: Vesa Mount
VESA Mount VESA mounting pattern 100 x 100 mm. Note: VESA mount and mounting accessories are not included. WARNING: If you are not confident in wall mounting this product, consult a licensed trade professional. Open the box, lay the monitor screen facing down on a table with the monitor still resting on the packing foam. - Page 9 Follow the instructions received with your mount and install the monitor on the wall or fixture as desired. Mount (not provided) Note: To prevent the monitor from falling, ensure it is securely mounted. Avoid placing or hanging any objects on the mount and ensure the mount is installed at a height of less than 2 meters.
-
Page 10: Operation
Operation Powering the Monitor Connect the power adaptor to the power cable. Plug the adaptor into the monitor's DC port. Finally, connect the power cable to a properly grounded electrical outlet. DC input port HDMI Connection • Use an HDMI cable (not provided) to connect the computer's HDMI port to the monitor's HDMI port. -
Page 11: Hdmi To Dvi Connection
HDMI to DVI Connection Use an HDMI to DVI cable (not provided) to connect the monitor's HDMI port to the computer's DVI port. HDMI to DVI cable (not provided) Note: Audio may not be transmitted through a DVI port. DisplayPort Connection Connect a DisplayPort cable from the computer's DisplayPort to the monitor's DisplayPort. -
Page 12: Audio Out Connection
Audio Out Connection • Earphones, headphones or other audio devices can be connected to the monitor's 3.5mm audio port. • The monitor may need to be set as the PC's default sound output device. Earphones & speakers (not provided) -
Page 13: On-Screen Display (Osd) Menu
On-Screen Display (OSD) Menu The On-Screen Display (OSD) menu allows you to adjust the monitor's settings. • Press the ‘Menu’ button to enter the OSD menu. • Press the ‘Up’ or ‘Down’ buttons to scroll through the functions. • Select the desired function and press the ‘Menu’ button to enter the sub-menu. •... -
Page 14: On-Screen Display (Osd) Functions
On-Screen Display (OSD) Functions The monitor's functions may vary depending on the model and the functions described in this user guide are provided for reference only. Main Menu Sub Menu Options Standard Mode Off/On RTS/RPG Mode Off/On FPS Mode Off/On MOBA Mode Off/On Movie Mode... - Page 15 Off/Auto/HDR Game/HDR Movie Adaptive-Sync Off/On MPRT Off/On Colour Enhancement: Off/Level 1-10 CR Enhancement: Off/Level 1-5 Shadow Balance: 0-100 Picture Night Vision Mode: Off/Level 1-2/Auto Enhancement Level 1-2 Super Resolution: Off/Level 1-3 Dynamic OD: Off/Level 1-3/Top speed Reset Picture Enhancement: Off/On Refresh Rate: Off/On/Position (Top Right/Top Left/Bottom Right/Bottom Left) Game+...
- Page 16 简体中文/English/한국어/ / ﻋﺮﺑﻰPortugues do Brasilazil/ Deutsch/Nederland/Suomi/Français/Ελλ ηνικά/Indonesia/Italiano/日本語 Language /Malaysia/Polskie/Português/Русски Tie ế n g Vie ̂ ̣ t / й/Español/ไทย/Українська / 繁體中文/Türkçe OSD Time Out 5-60 OSD H-Position 0-100 OSD V-Position OSD V-Position OSD Transparency System Brightness/Contrast/Volume/Audio Settings Hotkey 1 Setting Mute/Shadow Balance/Game Crosshair/Refresh Rate/Game Time/Colour Hotkey 2 Setting...
-
Page 17: Specifications
Specifications Screen Size 31.5 inches Aspect Ratio 16:9 Viewing Angle 178° (H)/178° (V) Contrast Ratio 3500:1 (TYP) Colour 16.7M Resolution 1920 x 1080 Refresh Rate 240Hz Power Input 12V-4.0A Without Stand 711.7 x 422.4 x 119.1mm Product Dimensions With Stand 711.7 x 508.4 x 224.9mm Forward tilting: -5°... - Page 18 Weight Net Weight 6.0kg Gross Weight 8.0kg Wall Mount Size 100 x 100mm Adjustable Tilt...
-
Page 19: Notes
Notes... - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
