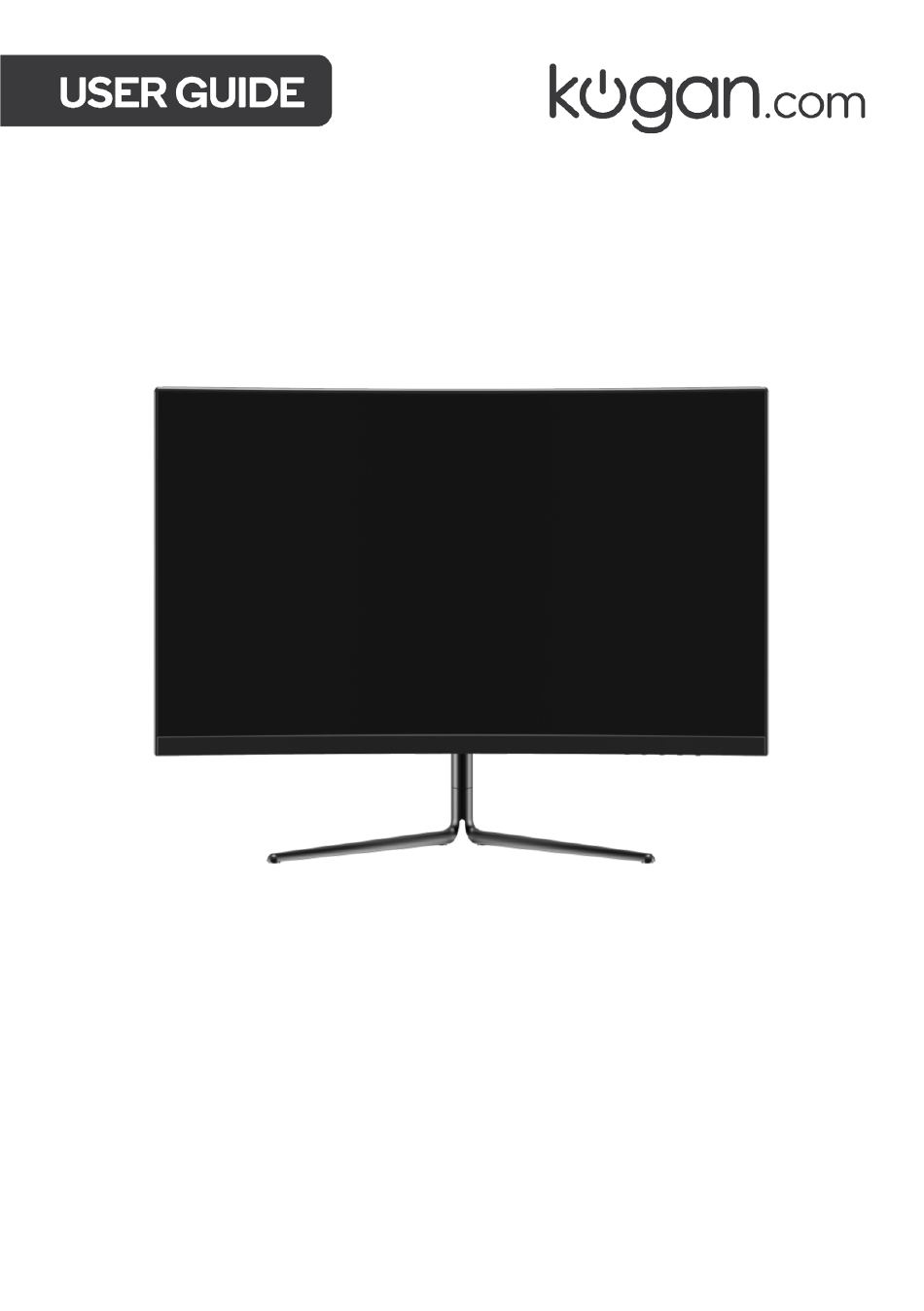

- Page 1 32" CURVED GAMING MONITOR 1920 x 1080, 165Hz KAMN32F16LB...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Stand Assembly VESA Mount Connectivity Operation Cleaning & Care Specifications Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. • Do not position the monitor on unstable surfaces. If the monitor falls, it may lead to damage and injuries to people around its vicinity. -
Page 4: Components
COMPONENTS A Monitor (x1) B Stand stem (x1) C Stand base (x1) D Headset hook (x1) E Cable guide (x1) F Stand plate (x1) G Screw (x4) H VESA connector (x1) I DisplayPort cable (x1) J Power cable (x1) K User guide (x1) -
Page 5: Overview
OVERVIEW Menu/enter button Down button Up button Exit button Power button LED indicator Ports Power port 3.5mm headphone jack HDMI port DVI port DisplayPort port... -
Page 6: Stand Assembly
STAND ASSEMBLY 1. Open the packaging and remove the stand stem (B) and stand base (C). Using a screwdriver (not supplied), secure the stand stem (B) to the stand base (C) with one screw. Ensure all components are present before disposing of any packaging. Stand stem Screw Stand base... - Page 7 4. Using a screwdriver, secure the stand plate (F) onto the stand stem (B) with two screws. Note: If this assembly needs to be removed, use a screwdriver to loosen the screws and separate the components. 5. Take out the monitor (A) and lay it on a flat surface. 6.
-
Page 8: Vesa Mount
VESA MOUNT 1. Open the packaging, and with the foam attached, take out the monitor (A) and place it gently on a flat surface. Remove the foam covering the back of the monitor. If the monitor is attached to the stand stem (B) or stand base (C), detach it. 2. -
Page 9: Connectivity
CONNECTIVITY Power cable Connect one end of the power cable into the power port on the monitor. Connect the other end into a power socket. Power cable Earphones Plug in earphones (not supplied) into the 3.5mm headphone jack on the monitor. Note: If audio devices are plugged into the monitor and computer, there will be no sound. - Page 10 DisplayPort To allow the monitor to receive DisplayPort signals from your computer, plug in one end of the provided DisplayPort cable into the DisplayPort port on the monitor. Plug the other end of the cable into the DisplayPort output on the computer. DisplayPort cable To allow the monitor to receive DVI signals from the computer, connect one end of a DVI cable (not supplied) into the DVI port on the monitor.
-
Page 11: Operation
OPERATION 1. Connect the monitor to your computer via HDMI/DisplayPort/DVI. 2. Connect one end of the power cable into the power port of the monitor. Plug the other end into a power socket. Switch the socket on. Note: It is recommended to use a surge protector with adequate voltage if the power cable is not directly connected to a wall socket. - Page 12 Navigation window Whilst turned on, press any button (M, , E, ) located underneath the monitor to bring up the navigation window. These include options to go to the on-screen display menu, as well as shortcuts to sub-menus. GamePlus menu Input source menu OSD menu ECO mode menu...
- Page 13 On-screen display menu The on-screen display (OSD) menu can be used to adjust the monitor’s settings. When the monitor is used for the first time, optimal settings will be set as default. 1. Press any one of the buttons (M/ / /E/ ) located underneath the monitor to activate the navigation window.
- Page 14 OSD menu options Below is a list of the various settings that can be adjusted through the OSD menu. Category Sub-Menu Options Description BRIGHTNESS Brightness 0–100 Adjusts the display brightness Contrast 0–100 Adjusts the display contrast Standard, Sets the display’s colour Game, RTS, balance to pre-set levels to FPS, Movie, Text...
- Page 15 Resets the monitor to RESET Reset factory default settings MISC Signal source HDMI, DVI, DP Selects the input signal source Volume 0–100 Adjusts the audio volume Low blue ray 0–100 Sets the level of blue light filtering Adaptive-Sync On, Off Turns the Adaptive-Sync function on/off Over Driver...
- Page 16 ECO modes There are various pre-set colour modes suited for various use cases available on this monitor. These can be accessed using the ECO modes menu. The modes include the following: • Standard (suitable for most activities) • Game (best suited general gaming) •...
-
Page 17: Cleaning & Care
• Ensure the monitor is turned off, unplugged, and cooled before cleaning. • Clean the screen by wiping it with a dry microfibre cloth. • Clean the monitor body with a slightly damp cloth with water. SPECIFICATIONS Model KAMN32F16LB Screen size 32" Aspect ratio 16:9 Backlight E–LED... - Page 18 Audio Audio out Speakers Accessories Power cable DisplayPort cable Additional functions Low blue light Flicker free Physical dimensions Dimensions (with stand) 712.5 x 505.6 x 226.5mm Dimensions (without stand) 712.5 x 422.8 x 113.3mm Net weight 7.07kg Gross weight 9.09kg...
-
Page 19: Notes
NOTES... - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
