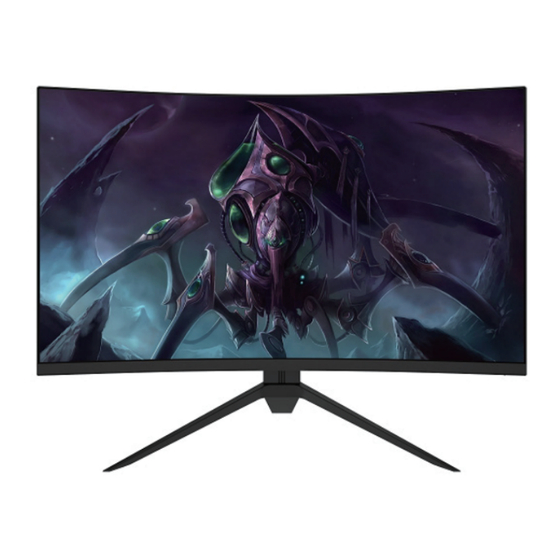

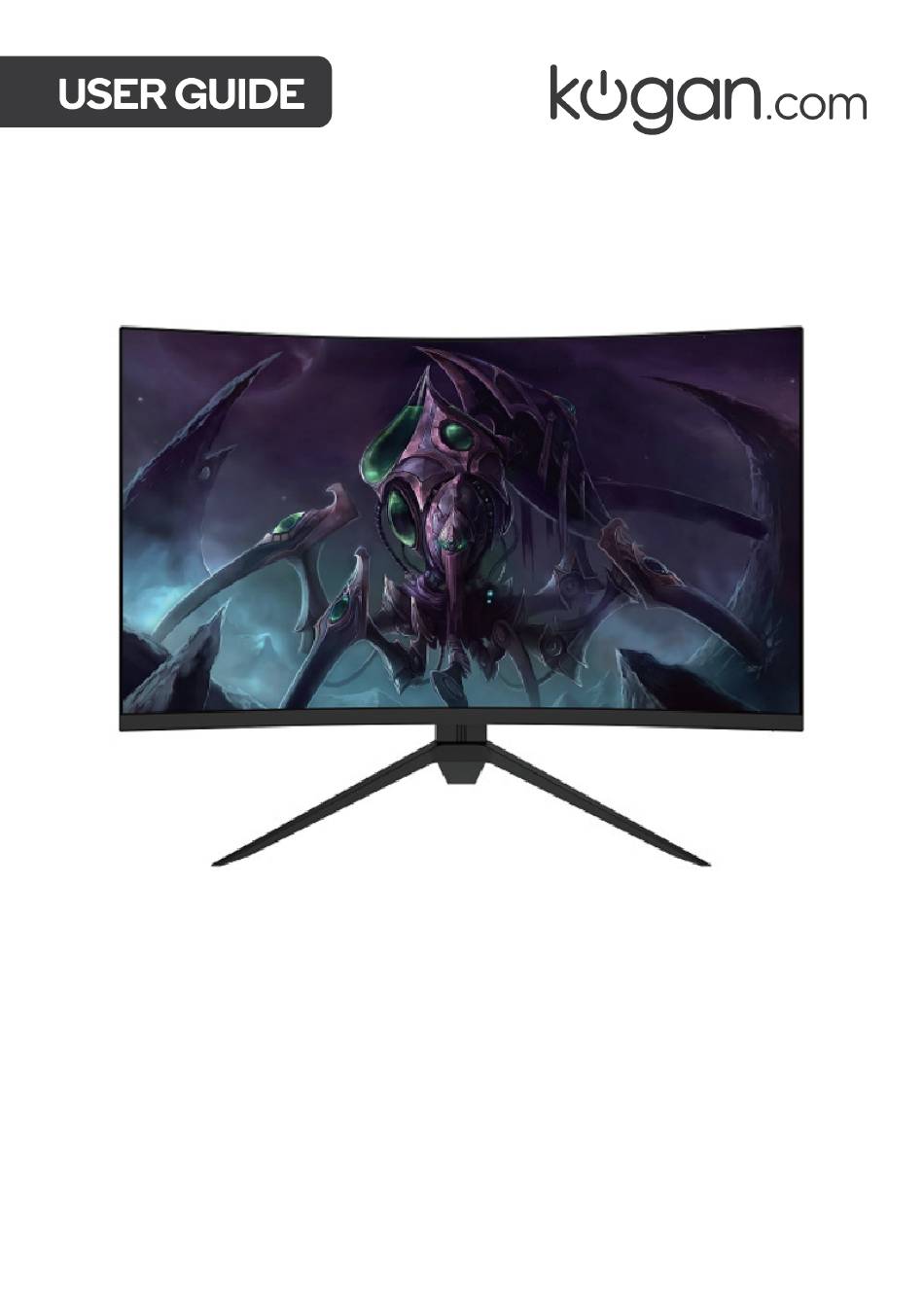

- Page 1 32" CURVED FULL HD 165HZ FREESYNC MONITOR 1920 x 1080 KAMN32F16PB...
- Page 3 SAFETY & WARNINGS • Read all instructions before using this monitor and retain this user guide for future reference. • This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them. • Do not insert any object or spray any liquid into the vents.
- Page 4 OVERVIEW Power button Power input port HDMI port HDMI port DisplayPort Audio in (3.5mm)
- Page 5 ASSEMBLY Base installation Attach the stand base to the stand arm with using the x2 M4x16 screws Attach the assembled stand into the rear of the monitor as shown below. Rotate the stand clockwise and downwards to install it.
- Page 6 Removing the base Push the slider on the rear cover. Rotate the stand counter-clockwise. Pull the stand away from the monitor in the direction of the arrow. Tips: • If you need to remove the stand, first place the monitor face down in the original packaging protection material to avoid screen damage.
- Page 7 INSTALLATION Display installation • This monitor should be installed adjacent to an easily luggable electrical outlet. • To ensure safety, this monitor must always be mounted using the stand or a wall bracket (not supplied). • In order to prevent injury, this monitor must be placed on a stable and level surface or fixed on a firm wall.
- Page 8 CONNECTIVITY Before connecting the monitor to your PC, shut off the power to both the PC and the monitor. Power Cable Connect the included power cable to the monitor power port, then connect the other end to a power outlet. HDMI In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.
- Page 9 OPERATION Connect the monitor to the input device via HDMI/DisplayPort. Connect the power adapter to the monitor and then connect the other end directly to an electrical outlet. Press the power button to turn the monitor on. FreeSync • In order to use this feature, ensure your hardware has FreeSync capability and the graphics drivers are fully up to date.
- Page 10 SPECIFICATIONS Panel size 31.5" Optimal working resolution 1920×1080@165Hz Power input 19V 3.42A Power supply management system: Normal working ≤ 65W Standby ≤ 0.5W Requirements for working environment: Altitude ≤5000m Working temperature and humidity 0°C~40°C 20%~85% Warehousing temperature and humidity -10°C~60°C 10%~90%...
- Page 11 TROUBLESHOOTING Phenomenon Troubleshooting Check the power adapter and ensure it is Power indicator is off and monitor is off. properly connected to the electrical outlet and the rear of the monitor Open the OSD and go to “Image Image is blurry, too large or too small. Settings”...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
