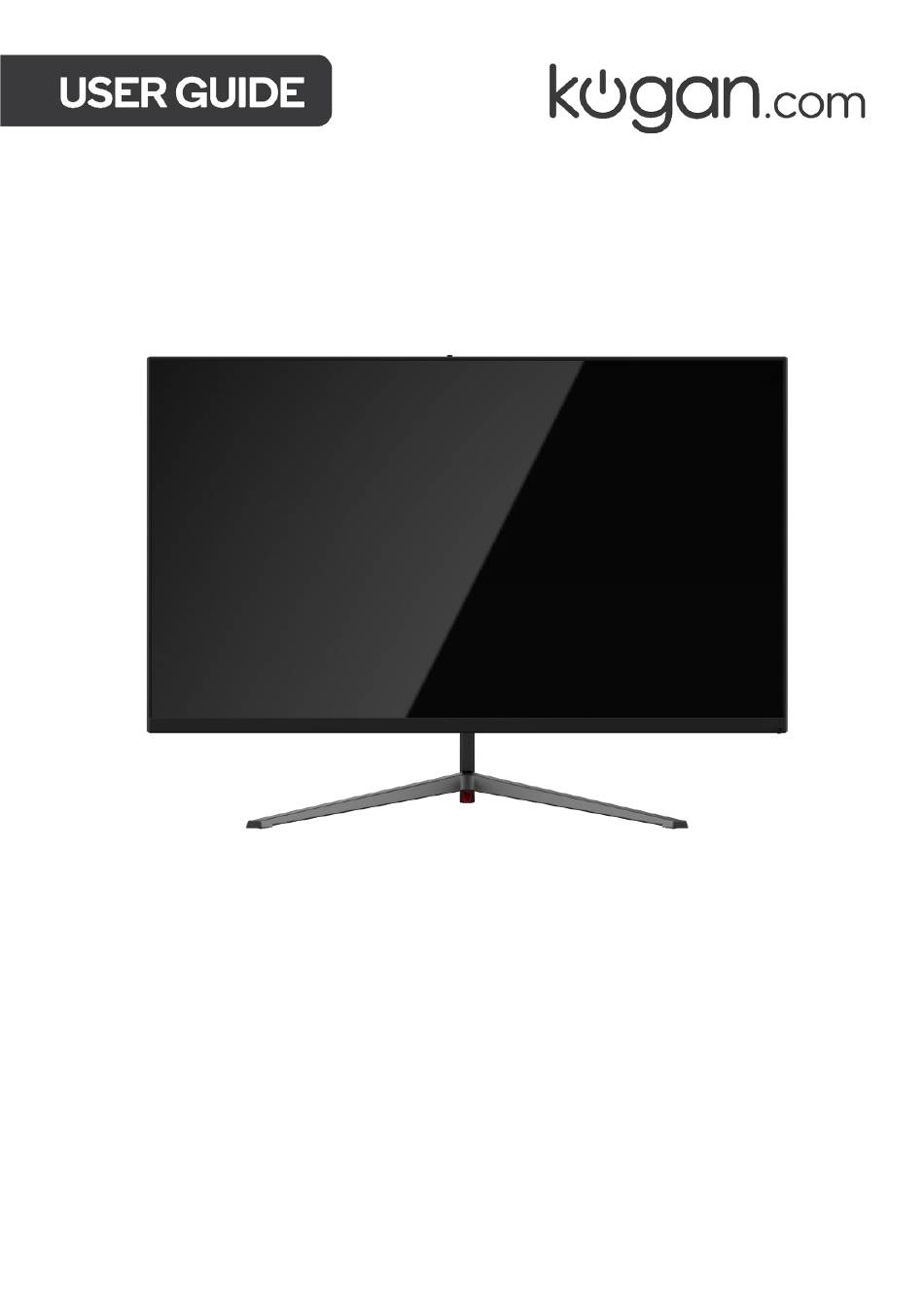

- Page 1 32" QHD IPS FRAMELESS MONITOR 2560 x 1440, 75Hz KAMN32QF7LA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. • Do not position the monitor on unstable surfaces. If the monitor falls, it may lead to damage and injuries to people around its vicinity. - Page 4 COMPONENTS A Monitor (x1) B Stand stem (x1) C Stand base (x1) D Base cover (x1) E 12mm M4 screw (x2) F 23mm M4 screw (x4) G VESA connector (x4) H DisplayPort cable (x1) I Power cable (x1) J Power adapter (x1) K User guide (x1)
- Page 5 OVERVIEW Menu/enter button Up button Down button Exit button Power button Ports 6 7 8 9 Power port DisplayPort port HDMI port Audio output port Front view LED indicator...
-
Page 6: Stand Assembly
STAND ASSEMBLY 1. Ensure all components are present before disposing of any packaging. Open the packaging and remove the stand stem (B) and stand base (C). Using a Phillips screwdriver (not supplied), secure the stand base (C) to the stand stem (B) with the 12mm M4 screws (E). -
Page 7: Vesa Mount
VESA MOUNT 1. Open the packaging, and with the foam attached, take out the monitor (A) and place it on a flat surface. Remove the upper foam and film covering the monitor, then place the monitor on the lower piece of foam. 2. - Page 8 CONNECTIVITY Power adapter Connect one end of the power adapter into the power port on the monitor. Connect the other end into one end of the power cable. Connect the other end of the power cable into a power socket. Earphones Plug in earphones (not supplied) into the 3.5mm headphone jack on the monitor.
- Page 9 HDMI To allow the monitor to receive HDMI signals from the computer, plug one end of an HDMI cable (not supplied) into the monitor. Plug the other end of the cable into the HDMI output port on your computer. DisplayPort To allow the monitor to receive DisplayPort signals from your computer, plug in one end of the provided DisplayPort cable into the DisplayPort port on the monitor.
-
Page 10: Operation
OPERATION 1. Connect the monitor to your computer via HDMI/DisplayPort. 2. Connect one end of the power adapter into the power port on the monitor. Connect the other end into one end of the power cable. Connect the other end of the power cable into a power socket. - Page 11 On-screen display menu The On-Screen Display (OSD) menu can be used to adjust the monitor’s settings. When the monitor is used for the first time, optimal settings will be set as default. 1. Press any one of the buttons located underneath the monitor to activate the navigation window.
- Page 12 OSD menu options Below is list of the options available that can be adjusted through the OSD menu. Category Sub-Menu Options Description Adjusts the display Brightness 0–100 brightness Contrast 0–100 Adjusts the display contrast Standard, Sets the display’s colour Game, RTS, balance to pre-set levels to PICTURE FPS, Movie, Text...
- Page 13 Resets the monitor to RESET Reset factory default settings HDMI1, HDMI2, Selects the input signal Signal source source Volume 0–100 Adjusts the audio volume Sets the level of blue light Low blue ray 0–100 filtering Turns the Adaptive-Sync MISC. Adaptive-Sync On, Off function on/off Setting these at higher...
-
Page 14: Cleaning And Care
• Ensure the monitor is turned off, unplugged, and cooled before cleaning. • Clean the screen by wiping it with a dry microfibre cloth. • Clean the monitor body with a slightly damp cloth with water. SPECIFICATIONS Model KAMN32QF7LA Screen size 32" Aspect ratio 16:9 Backlight E–LED... - Page 15 Audio Audio out Speakers Accessories Power cable Power adapter DisplayPort cable Additional functions Low blue light Flicker free Physical dimensions Dimensions (with stand) 718.59 x 519.17 x 236.05mm Dimensions (without stand) 718.59 x 422.07 x 47.40mm Net weight 6.87kg Gross weight 7.77kg...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
