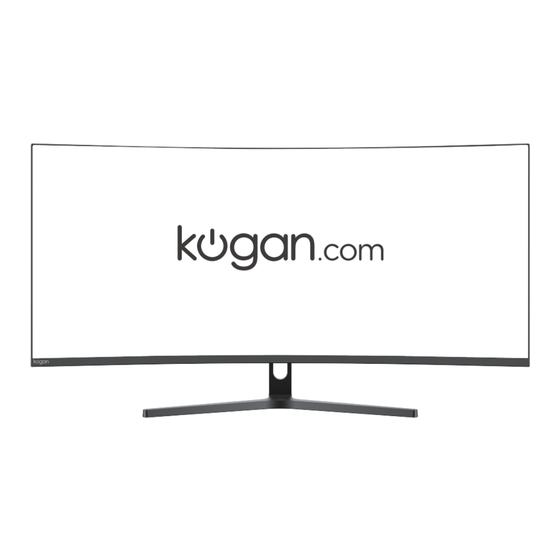

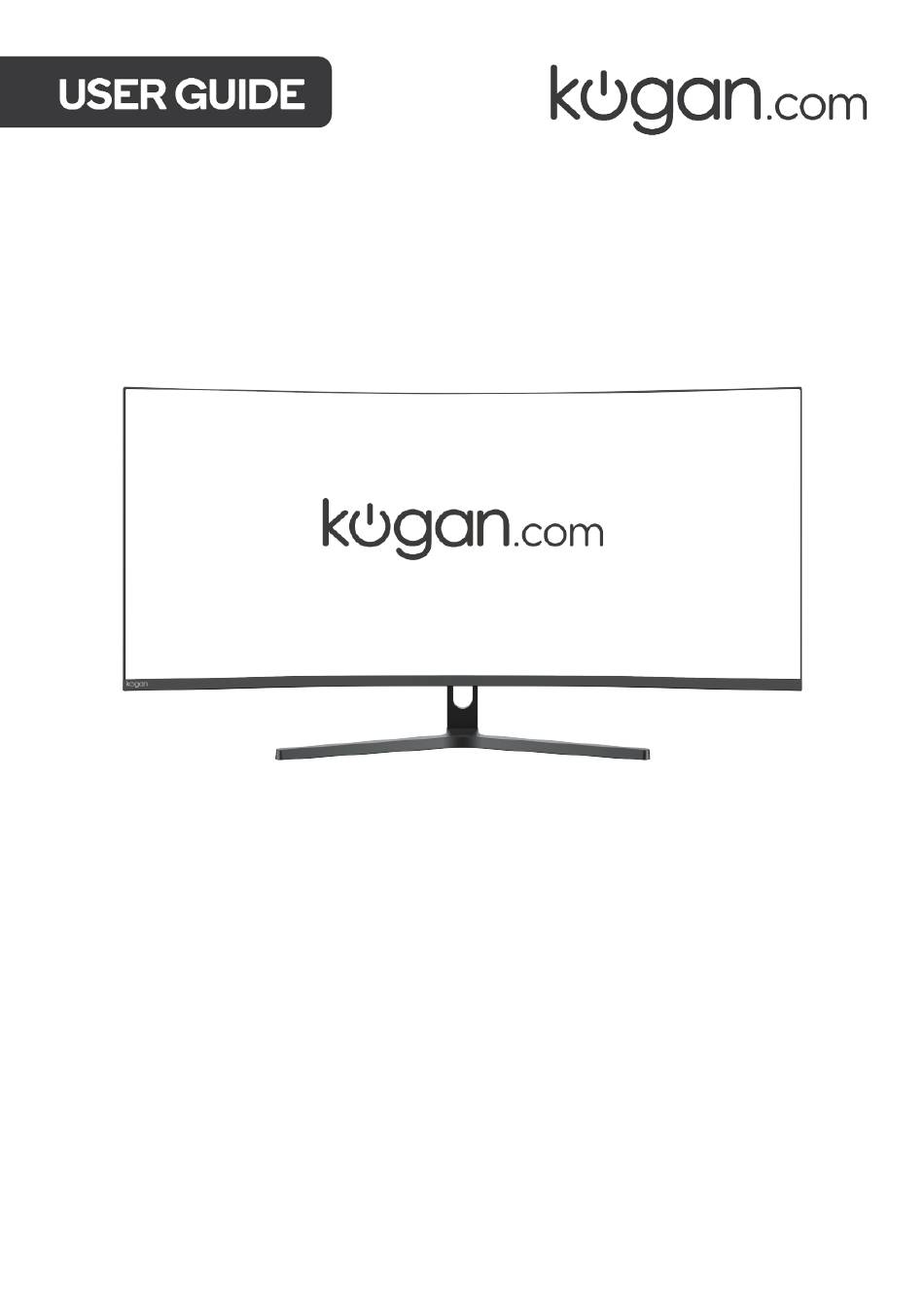

- Page 1 34" CURVED ULTRAWIDE FREESYNC GAMING MONITOR (3440 X 1440, WQHD 165HZ) KAMN34F14QUVA...
-
Page 2: Safety And Warnings
SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. • This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them. - Page 3 COMPONENTS Monitor Stand stem Stand base Power cord DP cable User guide Check if all items are included in your monitor set, if there are missing items; contact help.Kogan.com for support.
- Page 4 OVERVIEW Standby Power Off/On E-Exit/Input Menu Up/Brightness Down/Volume M-Menu/Select Button Function Press menu key display OSD and select. Press E key display source (HDMI/DP optional). Press down key volume; Press up key brightness.
- Page 5 ASSEMBLY Gently lay the monitor on the cloth with the screen facing down. Align the stand base with the stand stem, then clip the stand base into the stand stem. Attach the assembled stand to the rear of the monitor. Adjusting the angle of the monitor The screen can be tilted forwards up to 5°...
-
Page 6: Vesa Mount
VESA MOUNT If mounting to a wall, ensure the stand base and stand stem are disconnected from the monitor. With the display side facing down, lay the monitor on a soft cloth to prevent damage. Identify the four wall mounting screws on the back of the monitor. Mount the monitor as desired with the steps provided with your VESA mount. -
Page 7: Operation
OPERATION Connect the monitor to your computer via HDMI/DP. Connect one end of the power cable into the power port of the monitor. Connect the other end into an outlet, then turn the outlet on. Note: It is recommended that a surge protector with adequate voltage is used if the monitor cannot be directly connected to an outlet. - Page 8 OSD menu settings Below is a list of the settings available that can be adjusted through the OSD menu. Main Menu Sub-Menu Options Description Select the input signal Input Source source HDMI1 HDMI2 Brightness 0-100 Adjust display brightness Brightness/ Contrast 0-100 Adjust display Contrast Contrast...
- Page 9 Select window mode of Multi-Window PIP Mode the monitor PBP Mode Select sub-windows input Sub Win2 Input source HDMI1 HDMI2 Small Multi-Window PIP Size Medium Setting the PIP size Large Top Right Top Left PIP Position Setting the PIP position Bottom Right Bottom Left Window1...
- Page 10 FreeSync • To use this feature, ensure your hardware has FreeSync capabilities and that the graphics drivers are fully up to date. • After connecting the monitor, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in the graphics card menu.
- Page 11 CONNECTIVITY Power cable DP cable HDMI HDMI OUTPUT (PC) OUTPUT (PC) cable Earphone (excluded) HDMI Cable HDMI Cable (not supplied) (not supplied) Note: Before connecting, ensure the display is switched off.
- Page 12 Power cable Connect one end of the power cable into the power port on the monitor. Connect the other end into a power socket. Power Cable HDMI • For the monitor to receive HDMI signals to your computer, plug one end of the included HDMI cable into the HDMI port on the monitor.
- Page 13 Audio port (3.5mm) • To receive audio signals to your computer, plug your earphones, headphones or other audio device (not included) into the 3.5mm audio port on the monitor. • If any audio device is connected to the computer at the same time, it will not produce sound.
-
Page 14: Specifications
SPECIFICATIONS Screen size 34" Aspect ratio 21:9 Backlight E-LED Brightness 300cd/m² Panel Resolution 3440 x 1440 Refresh rate 165Hz Response time Viewing angle 178° (H) / 178° (V) (typical) Contrast ratio 3000:1 VESA mounting 75 x 75mm Colours 16.7M FreeSync Signal input x2 HDMI 2.0, x2 DP1.4 Power... -
Page 15: Cleaning And Care
CLEANING & CARE Ensure the monitor is turned off and unplugged before cleaning. • Wipe the body with a slightly damp, clean cloth. • Wipe the screen with a dry microfibre cloth. Note: Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners. - Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
