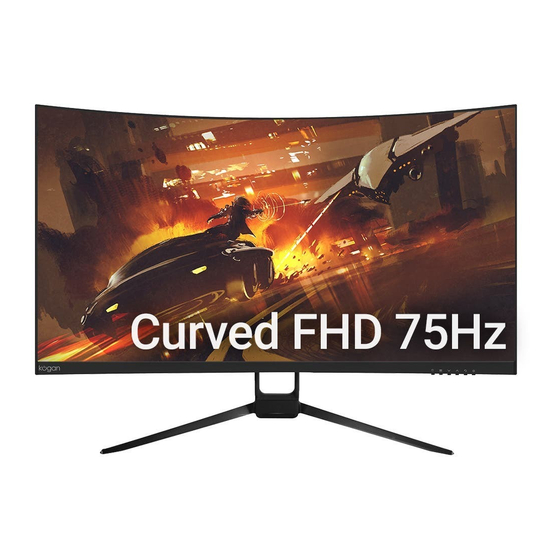

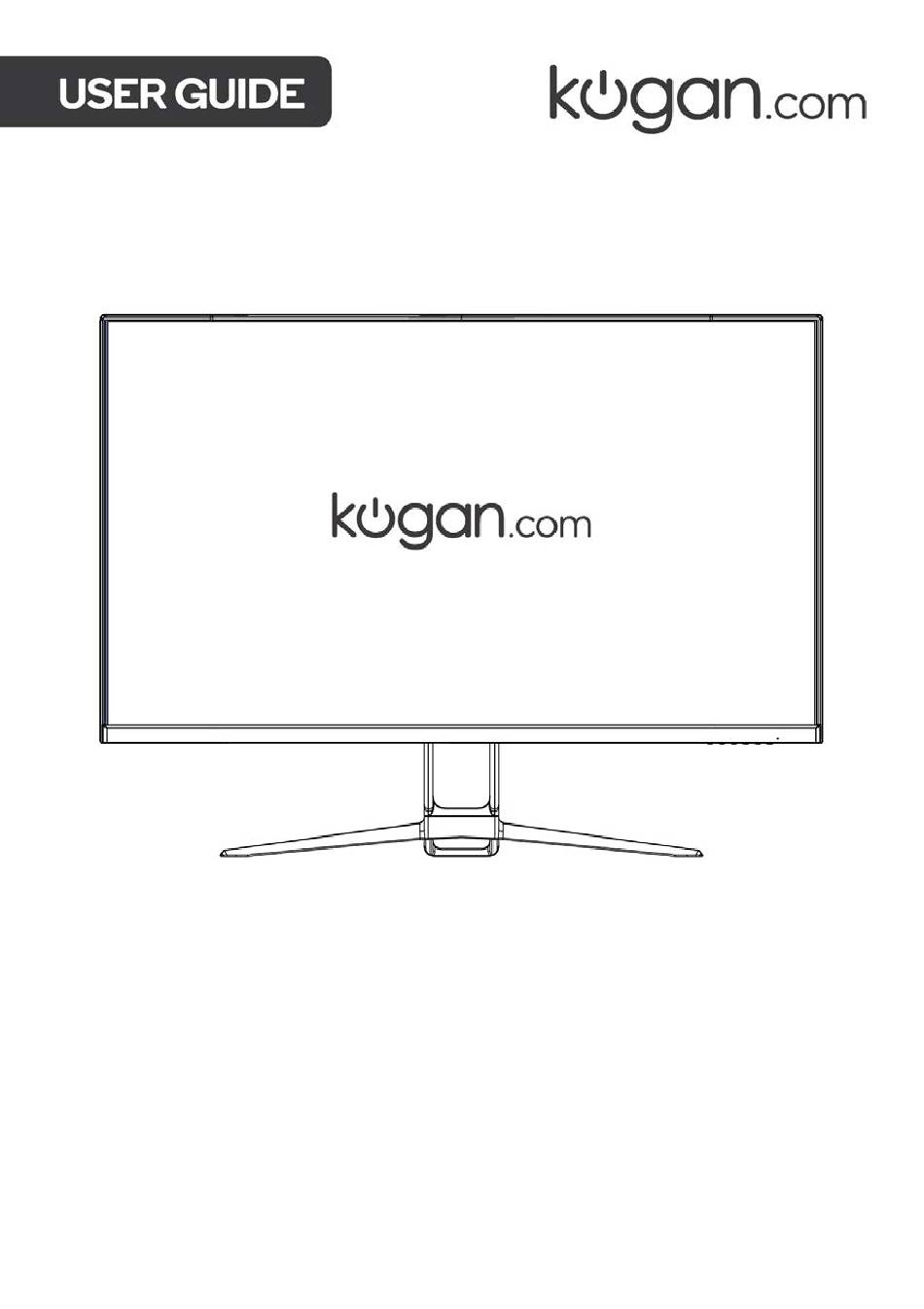

- Page 1 32 FULL HD CURVED FREESYNC GAMING MONITOR (1920 x 1080, 75Hz) KAMN32F7CSA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Read all instructions before using the appliance and retain this user guide for future reference. • Unplug the monitor before cleaning it. • Use a clean, slightly-dampened cloth to wipe the main monitor body. • To clean the screen: turn it off, unplug it and wait for it to cool completely, then wipe it with a dry microfibre cloth. - Page 4 COMPONENTS Monitor Stand arm VESA screws (x4) Stand base Stand base screw (M4 x 16mm) HDMI cable Power cable User guide...
- Page 5 OVERVIEW Monitor Controls Backlight button Press to turn the display backlight on/off. Menu button Press to display the OSD menu or enter sub-menus. Down button Press to move down in the menu. Up button Press to move up in the menu. Exit button Press to exit the menu.
- Page 6 Monitor Ports Audio in VGA input HDMI input Power input...
- Page 7 ASSEMBLY Before disposing of any packaging, place all items on a soft, clean and flat surface to ensure all components are accounted for. The panel of the monitor is fragile. Keep the foam WARNING: underneath the monitor screen while assembling the stand. Carefully remove the monitor, stand Attach the stand base to the stand arm and stand base from the box.
-
Page 8: Vesa Mount
VESA MOUNT VESA mounting pattern 100 x 100mm, screw size M4. Note: VESA mount or mounting accessories are NOT included. Open the box, take out the monitor with protection form attached and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor. Press the release button to remove the stand plate. - Page 9 CONNECTIVITY Power Connect the included power cable to the monitor power port, then connect the other end to a power outlet. Audio In Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm audio port on your computer.
- Page 10 HDMI Connect an HDMI cable from the computer’s display output to the monitor’s display input. Connect a VGA cable from the computer’s display output to the monitor’s display input.
-
Page 11: Operation
OPERATION Connect the monitor to the input device via HDMI or VGA. Connect the power cable to the monitor, then connect the other end directly to a power socket. Use the power button to turn the monitor on. Indicator Light The indicator light will illuminate green when the monitor is powered on. - Page 12 The On-Screen Display (OSD) The OSD menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the “ ” button. When using the monitor for the first time, settings will automatically adjust to optimal parameters according to your computer’s configuration and parts etc.
- Page 13 List of Functions Main Menu Sub-Menu Options Description Picture ~0-100 Adjust display brightness Contrast ~0-100 Adjust display contrast Blacklight ~0-100 Adjust display Blacklight Low blue Enable/disable blue light reduction Brightness STANDARD/ TEXT/GAME/ Preset colour modes MOVIE/ FPS/RTS Enable/disable dynamic contrast ratio Horizontal Adjust video display area left to right...
- Page 14 Warm mode Red/green/blue Adjust red/green/blue levels Cool mode Red/green/blue Adjust red/green/blue levels Colour User mode Red/green/blue Adjust red/green/blue levels HDR mode On/Off Enable or disable HDR mode English, 简体中文 ,한국어, Русский, Español, Deutsch, Language Set OSD language Italiano, Français, Portugues, Turkce, Polski, Nederlands OSD H- ~0-100...
- Page 15 Image None Restore VGA image defaults Automatically configure VGA colour Colour None settings Reset None Restore factory defaults Reset Power down Enable/disable Power down function Time count 10-90min Adjust Time count On (default) Enable/Disable Overdrive Signal VGA/HDMI Adjust input source source Enable or disable monitor speaker Misc...
- Page 16 GAMEPLUS MODE Gameplus Press “ ” button to switch Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.
-
Page 17: Specifications
SPECIFICATIONS Screen size Aspect ratio 16:9 Brightness 280cd/m² (typical) Panel Resolution 1920 x 1080 Refresh rate 75Hz Response time 10ms with Overdrive enabled (20ms typical) Viewing angle ≥178°(H) / 178°(V) Contrast ratio 3000:1 VESA mounting 100 x 100mm Colours 16.7M Signal input HDMI 1.4 x 1, VGA x 1 Power... - Page 18 NOTES...
