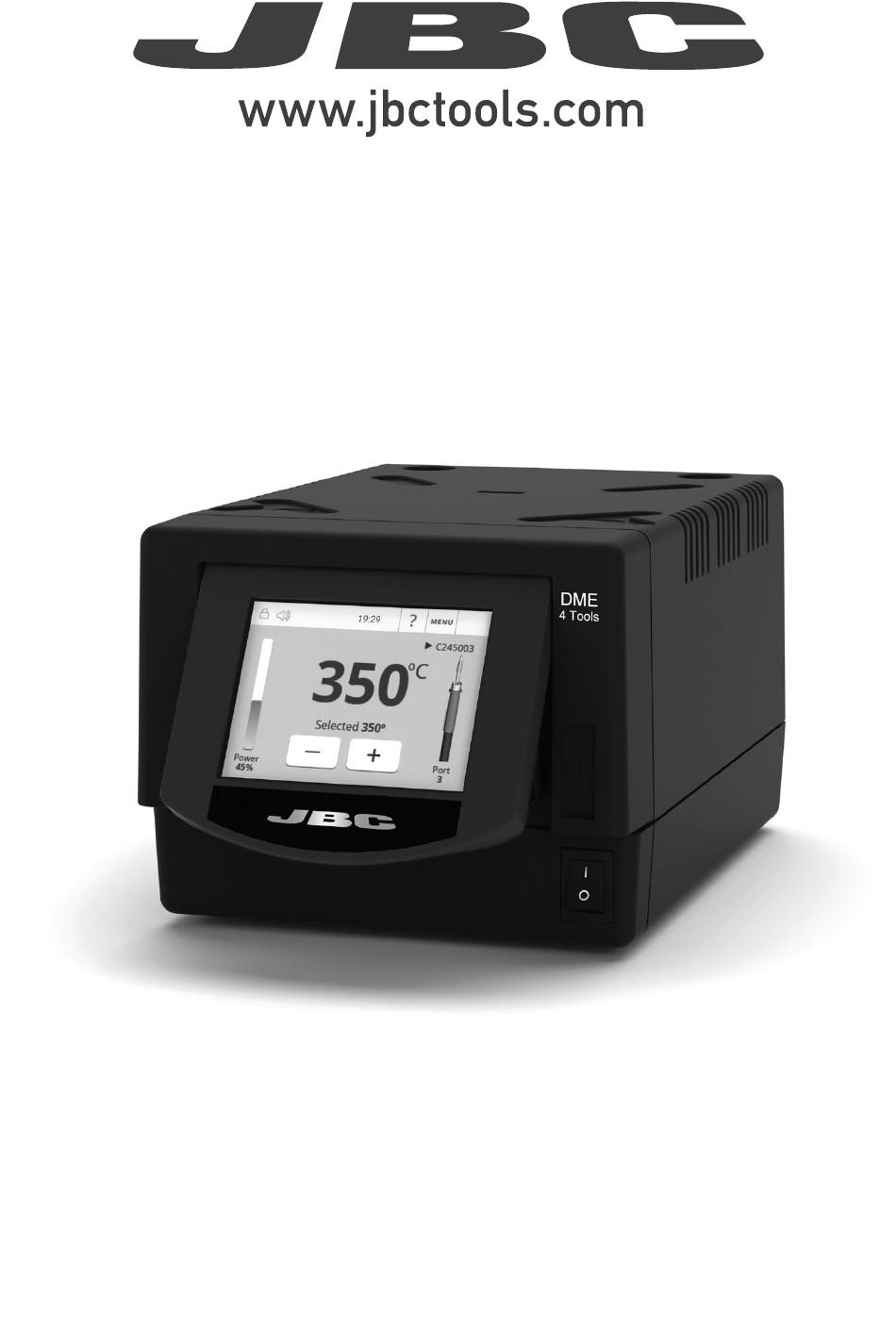

- Page 1 INSTRUCTION MANUAL 4-Tool Control Unit...
-
Page 2: Packing List
This manual corresponds to the following references: DME-9A (100V) DME-1A (120V) DME-2A (230V) Packing List The following items are included: Power Cord ....1 unit Manual ......1 unit 4-Tool Control Unit ....1 unit Ref. 0024077 (100V) Ref. 0028713 0023717 (120V) 0024080 (230V) Features... -
Page 3: Connection Example
para manuales - color gris 200 mm Connection Example 130 mm 130 mm 4-Tool Control Unit Stand connectors 100 mm Equipotential connector RJ45 connector for LAN 80 mm USB-B connector RJ12 connector for Robot Power socket and fuse Stand Cable Ref. - Page 4 Compatibility Select the equipment that best suit your soldering or desoldering needs. Modular System Peripherals Control Cartridge Stand Tool MSE / MVE P405 Unit Range T210 C210 T245 C245 T470 T210N C210 T245N C245 AP250 C250 AM120 C120 PA120 AT420 C420 HT420 DS360...
-
Page 5: Work Screen
para manuales - color gris 200 mm Work Screen 130 mm 130 mm DME offers an intuitive user interface which provides quick access to the station parameters. Default PIN: 0105 Station Information Help for each parameter 100 mm Station Lock Cartridge 17:14 MENU... -
Page 6: Utilities Submenu
Utilities Submenu It provides detailed graphics of tip temperature and power delivery in real-time during solder joint formation for analysis purposes. This helps you decide how to adjust your process or which tip to use to obtain the best quality soldering. Graphics Export graphics Insert a USB flash drive into the USB-A... - Page 7 para manuales - color gris 200 mm 19:29 19:29 MENU MENU 19:29 19:29 MENU MENU C245003 C245003 T245 T245 MSE / Pedal Initial Setup Sleep Sleep 130 mm 130 mm Tool in the stand Tool in the stand Selected 350ºC Selected 350ºC Actual Temp.
-
Page 8: Operation
Operation JBC’s Most Efficient Soldering System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the soldering quality. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip. -
Page 9: Usb Connector
If necessary use a tool to lever it off. return it to the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 11 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 12 Notes...
- Page 13 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 14 Notes...
-
Page 15: Specifications
para manuales - color gris 200 mm Specifications 130 mm 130 mm 4-Tool Control Unit Ref. DME-1A 120V 50/60Hz. Input fuse: T-3.5A. Output: 23.5V 100 mm Ref. DME-2A 230V 50/60Hz. Input fuse: T-3.15A. Output: 23.5V Ref. DME-9A 100V 50/60Hz. Input fuse: T-8A. Output: 23.5V - Peak Power (Tool): 160W per tool - Selectable Temperature:... - Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
