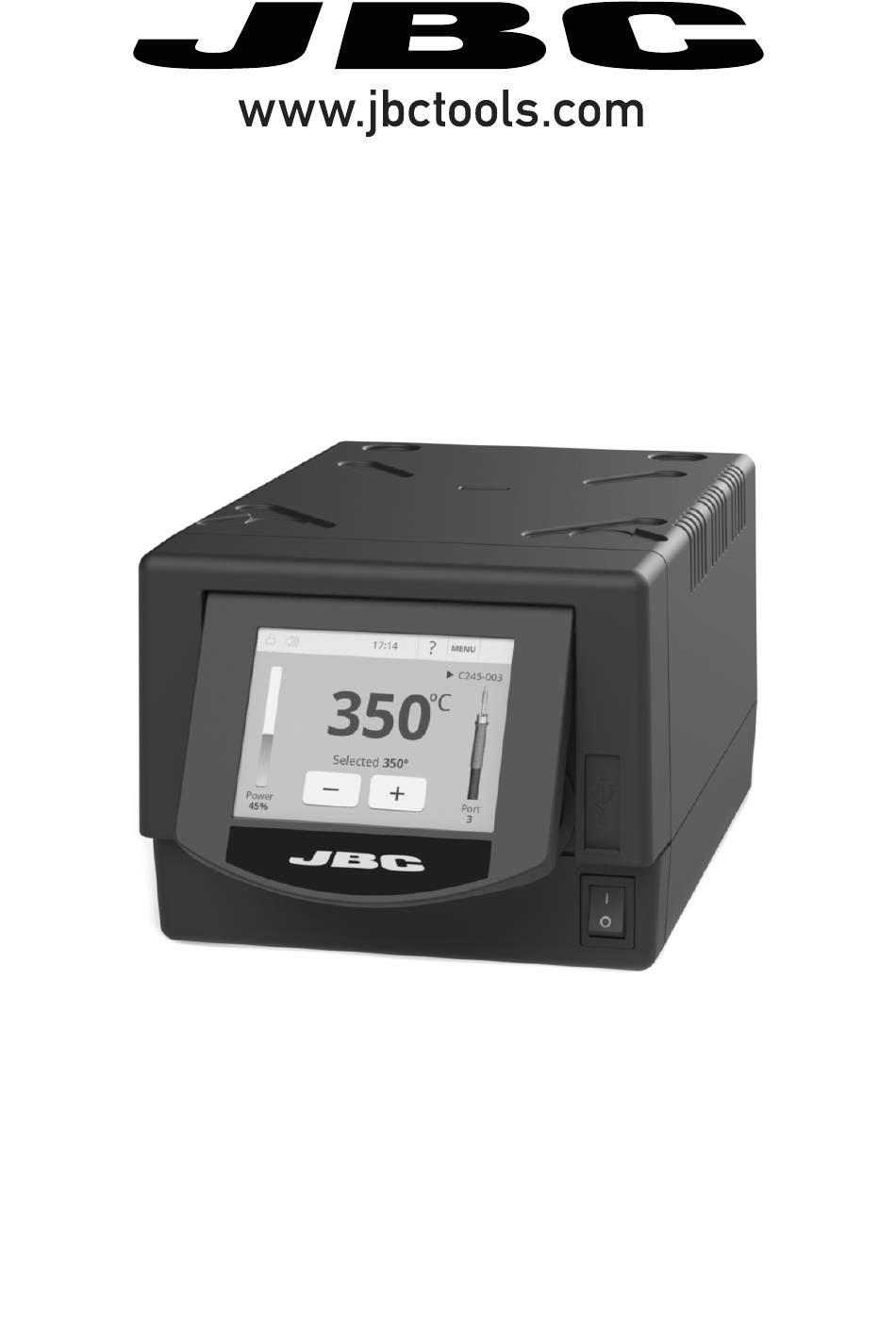

INSTRUCTION MANUAL
Four-Tool Control Unit
Ref. DME-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DME-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc DME-A

Summary of Contents for jbc DME-A

  • Page 1 INSTRUCTION MANUAL Four-Tool Control Unit Ref. DME-A...

  • Page 2: Packing List

    3.5” Color TFT Touch screen USB-A connector Tilt the display for easy reading Main Switch Work Screen The DME-A offers an intuitive user interface which provides quick access to the station parameters. Default PIN: 0105 Station Information Help for each parameter...
  • Page 3 FSE-A P-005 Unit Range MVE-A T210-A C210 T245-A C245 AD-SD T470-A C245 T210-NA* C210 T245-NA* DN-SE C245 DME-A T470-NA* AP250-A C250 AP-SD PA120-A C120 PA-SD HT420-A C420 HT-SD DS360-A C360 DS-SD DR560-A C560 DR-SD * The MNE Nitrogen Flow Regulator is required.

  • Page 4: Menu Screen

    Work Screen The DME-A offers an intuitive user interface which provides quick access to the station parameters. Default PIN: 0105 Station Information Help for each parameter Station Lock Cartridge 17:14 MENU PIN required in use for unlocking Introduce the C245-003...

  • Page 5: Advanced Functionalities

    Up to 25 fully configurable Profiles soldering profiles can be stored. The first system to optimize traceability in soldering JBC Net - Get greater quality and control in your production - Manage your whole soldering process remotely in real time Simultaneous control of ports See the information for all ports in real time when pressing the tool image on the Work screen.
  • Page 6 Temp. Levels Temp. Levels Power Port Power Power Port Port MSE Initial Setup After connecting the electric desoldering module (MSE-A), a popup window is opened. Peripherals 17:14 17:14 Peripherals Peripherals Port Port MS a MS a PERIPHERAL Peripheral 1 plugged: Electric Suction Module Setup Postpone...

  • Page 7: Operation

    Operation The JBC Most Efficient Soldering System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip.

  • Page 8: System Notifications

    System notifications The following icons will be displayed on the screen’s status bar. USB flash drive is connected. Warning. Press INFO for failure description. Station is controlled by a PC. Error. Station is controlled by a robot. Press INFO for failure description, the type of error and how to proceed.
  • Page 9 Soldering Network Remotely manage and monitor your stations from a PC. 1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html 2. Connect the stations via USB-B or LAN (RJ45) and the PC will automatically detect them.
  • Page 10 Control Unit RS-232 connection Update the station software 1. Download the JBC Update File from 2. Insert the USB fl ash drive to the station. www.jbctools.com/software.html and The icon is diplayed while updating. save it on a USB flash drive. Preferably one with no other files.

  • Page 11: Maintenance

    If necessary use a tool to lever it off. return it to the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 12 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Make sure that it is properly grounded before use.
  • Page 13 w w w.jbctools.com 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
  • Page 14 Notes...

  • Page 15: Specifications

    w w w.jbctools.com Specifications DME-1A 120V 50/60Hz. Input fuse: T-3,5A. Output: 23.5V DME-2A 230V 50/60Hz. Input fuse: T-3.15A. Output: 23.5V DME-9A 100V 50/60Hz. Input fuse: T-8A. Output: 23.5V - Output Peak Power: 160W per tool - Temperature Range: 90 - 450 °C / 190 - 840 °F - Idle Temp.
  • Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
