Summary of Contents for jbc DDE-A Series
- Page 2 www.jbctools.com English 2 Tools Control Unit Ref. DDE-A...
-
Page 3: Packing List
w w w.jbctools.com Packing List Connections The following items should be included: Work simultaneously with up to 2 tools and 1 module + 1 pedal for each tool (Peripherals). - 2 Tools Control Unit ......1 unit Ref. DDE-1A (120V) Control Unit DDE-2A (230V) DDE-9A (100V) - Page 4 w w w.jbctools.com Stands & Tools For a basic working system you need: 1 Stand, 1 Tool and 1 Cartridge or tip. Stands Ref. AD-SD Ref. DN-SD Ref. AP-SD Ref. PA-SD Ref. HT-SD Ref. DS-SD Ref. DR-SD Tools Precision General HD General Nitrogen Solder Feed Iron...
- Page 5 w w w.jbctools.com Peripherals Compatibility Join station ports with modules and work simultaneously with 1 module and 1 pedal for each tool. Select the equipment that best suit your soldering or desoldering needs. Electric Desoldering Module Pneumatic Desoldering Module Basic working system Peripherals Ref.
-
Page 6: Operation
Operation Work Screen The JBC Exclusive Heating System The DDE-A offers an intuitive user interface which provides quick access to station parameters. Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. - Page 7 This helps you decide which tip to use to obtain the best quality solder joints. 1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html 2. Connect the stations via USB-B connector and the PC will automatically detect them.
-
Page 8: Maintenance
If necessary use a tool to lever it off. and replace it in the station. Updater - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. -
Page 9: Exploded View
w w w.jbctools.com Safety Exploded View It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. -

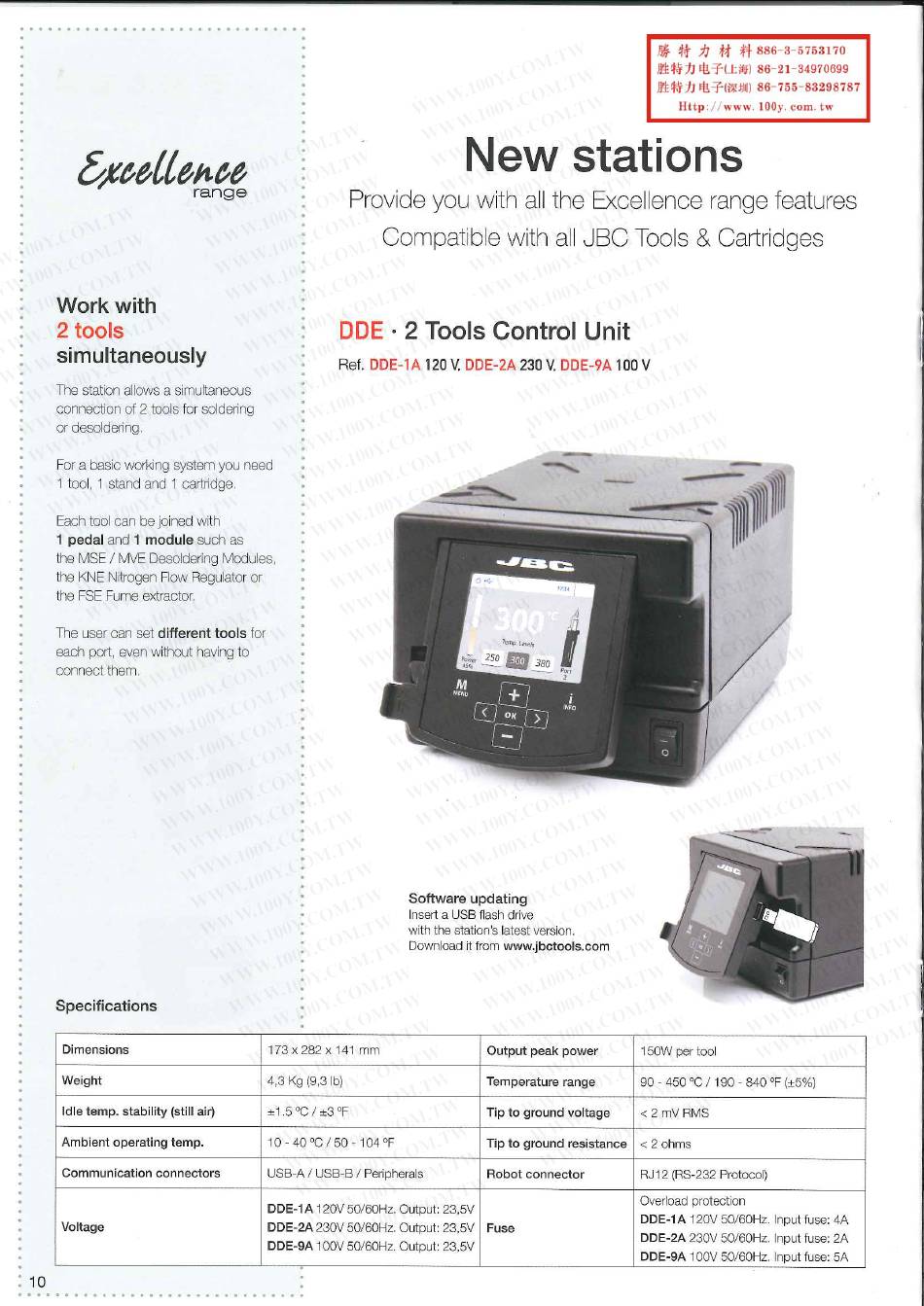

Page 10: Specifications
- RJ12 connector for Robot Complies with CE standards ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use.
