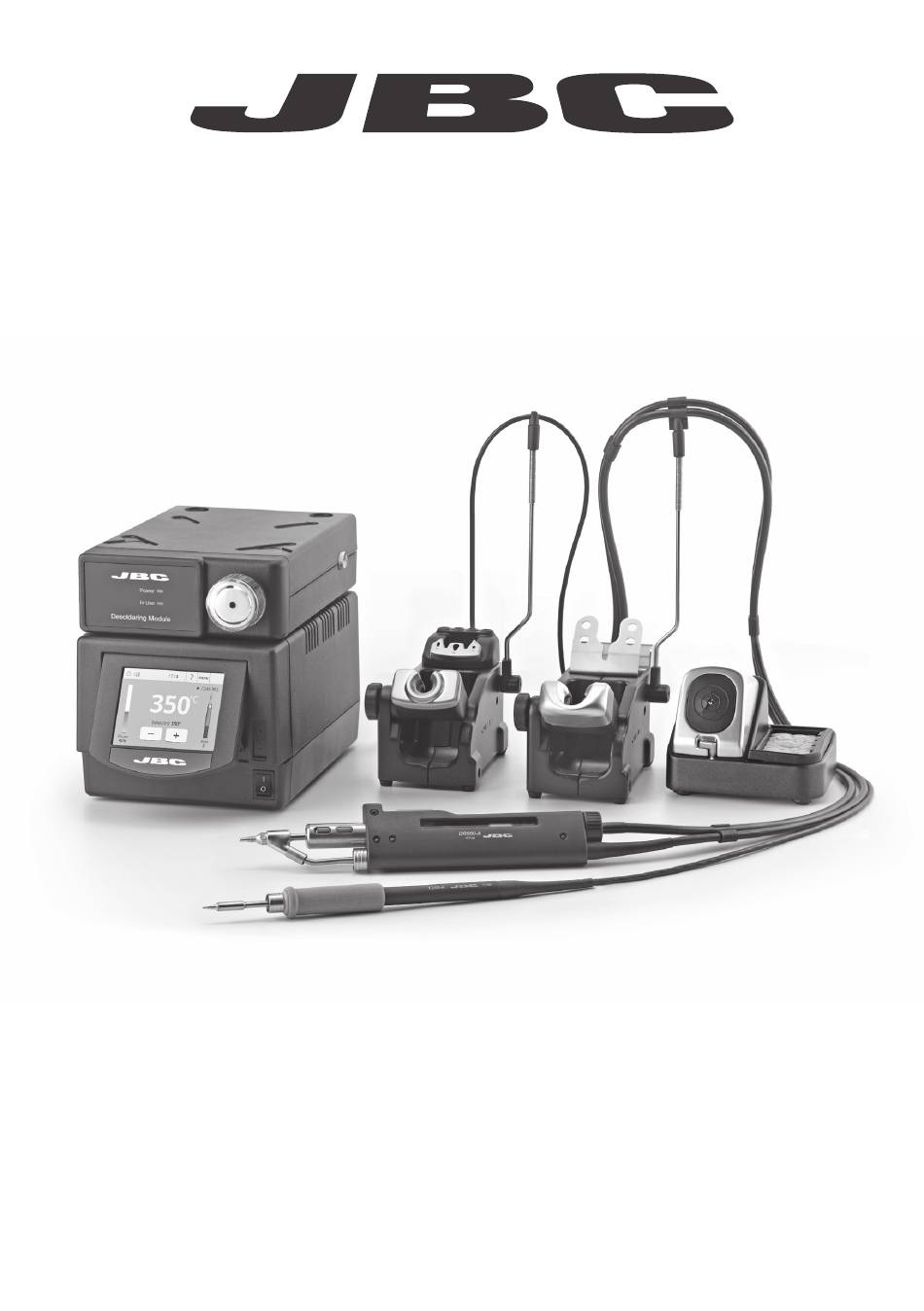

- Page 1 INSTRUCTION MANUAL Premium 4 Tools Rework Station with Pneumatic Pump Ref. DMVE-A...
-
Page 2: Packing List
Packing List The following items should be included: DME Control Unit ..1 unit Pneumatic Desoldering ESD Tip Cleaner ... 1 unit Ref. DME-1A (120V) Module ......1 unit Ref. CL8499 DME-2A (230V) Ref. MVE-A DME-9A (100V) General Purpose Stand ....1 unit Desoldering Stand .... - Page 3 Ref. 0011356 Ref. 0008446 Cotton Filter ....1 unit Suction Filter ....1 unit Manual ......1 unit Ref. 0781046 Ref. 0821830 Ref. 0020517 It contains 10 filters w w w.jbctools.com Premium 4 Tools Rework Station with Pneumatic Pump Ref. DMVE-A...
- Page 4 Features Work simultaneously with up to 2 tools and join each station port with 1 module + 1 pedal (Peripherals). Stand Cable Ref. 0011283 Equipotential connection RJ45 connector for LAN USB-B connector RJ12 connector for Robot Power Socket RJ12 connector for PSE General Purpose Handle...
-
Page 5: Pneumatic Desoldering Module
w w w.jbctools.com 3.5” Color TFT Touch screen USB-A connector Tilt the display for easy reading Speaker Module Cable Ref. 0014874 Pneumatic Desoldering Module Ref. MVE-A To another peripheral To Pedal Ref. P-005 Suction Filter Ref. 0821830 Air pressure (4-6 bar) -
Page 6: Maintenance
If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 7 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 8: Specifications
Specifications 4 Tools Rework station with Pneumatic Pump DMVE-1A / DMVE-2A / DMVE-9A - Total weight: 10,1 kg (22.3 lb) DME-1A 120V 50/60Hz. Input fuse: 6A. Output: 23.5V DME-2A 230V 50/60Hz. Input fuse: 3.15A. Output: 23.5V DME-9A 100V 50/60Hz. Input fuse: 8A. - Page 9 w w w.jbctools.com 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
-
Page 10: Exploded View
Exploded View... - Page 11 w w w.jbctools.com...
-
Page 12: Warranty
Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
