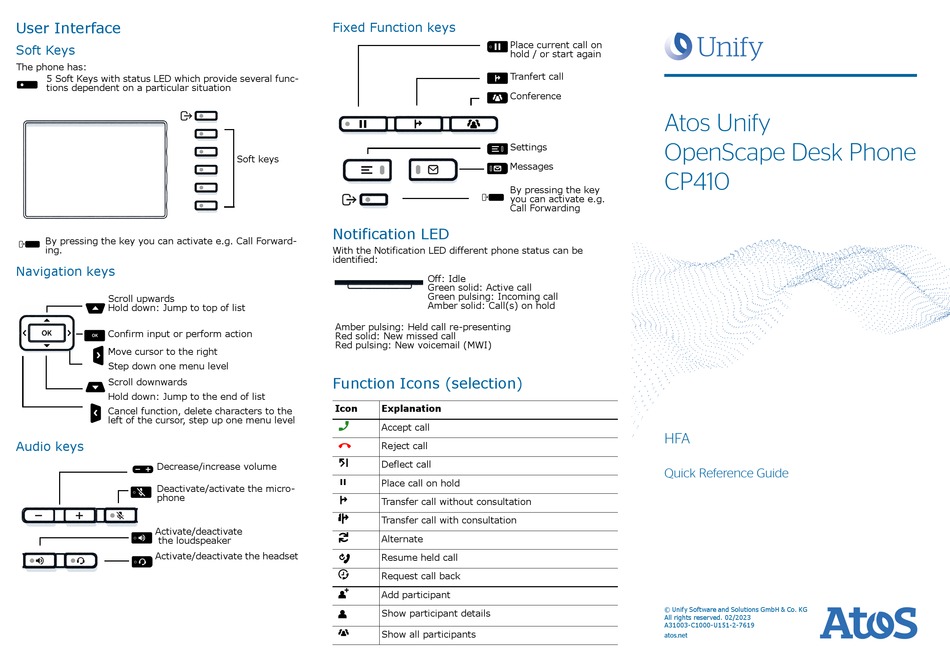

Atos OpenScape Unify CP410 Quick Reference Manual

User Interface

Soft Keys

The phone has:
_ 5 Soft Keys with status LED which provide several func-
tions dependent on a particular situation
\
By pressing the key you can activate e.g. Call Forward-
ing.

Navigation keys

Scroll upwards
µ
Hold down: Jump to top of list
Z
Confirm input or perform action
«
Move cursor to the right
Step down one menu level
€ Scroll downwards
Hold down: Jump to the end of list
^
Cancel function, delete characters to the
left of the cursor, step up one menu level

Audio keys

"
Decrease/increase volume
;
Deactivate/activate the micro-
phone
Activate/deactivate
:
the loudspeaker
. Activate/deactivate the headset

Fixed Function keys

Soft keys

Notification LED

With the Notification LED different phone status can be
identified:
Amber pulsing: Held call re-presenting
Red solid: New missed call
Red pulsing: New voicemail (MWI)

Function Icons (selection)

Icon Explanation
j
Accept call
k
Reject call
Ó
Deflect call
e Place call on hold
n
Transfer call without consultation
E
Transfer call with consultation
a
Alternate
m
Resume held call
B
Request call back
G
Add participant
Show participant details
p
J
Show all participants
Ä
Place current call on
hold / or start again
Ã
Tranfert call
Á
Conference
@
Settings
Â
Messages
By pressing the key
\
you can activate e.g.
Call Forwarding
Off: Idle
Green solid: Active call
Green pulsing: Incoming call
Amber solid: Call(s) on hold

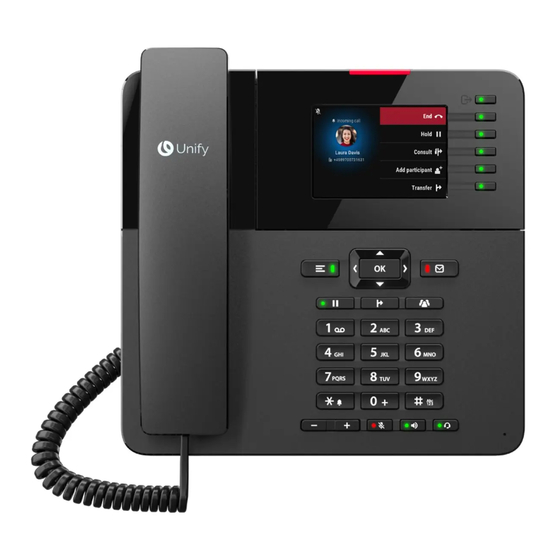

Atos Unify
OpenScape Desk Phone
CP410
HFA
Quick Reference Guide
© Unify Software and Solutions GmbH & Co. KG
All rights reserved. 02/2023
A31003-C1000-U151-2-7619
atos.net
