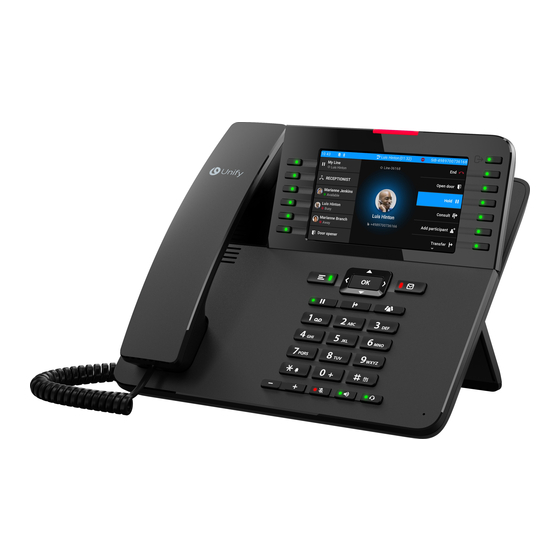

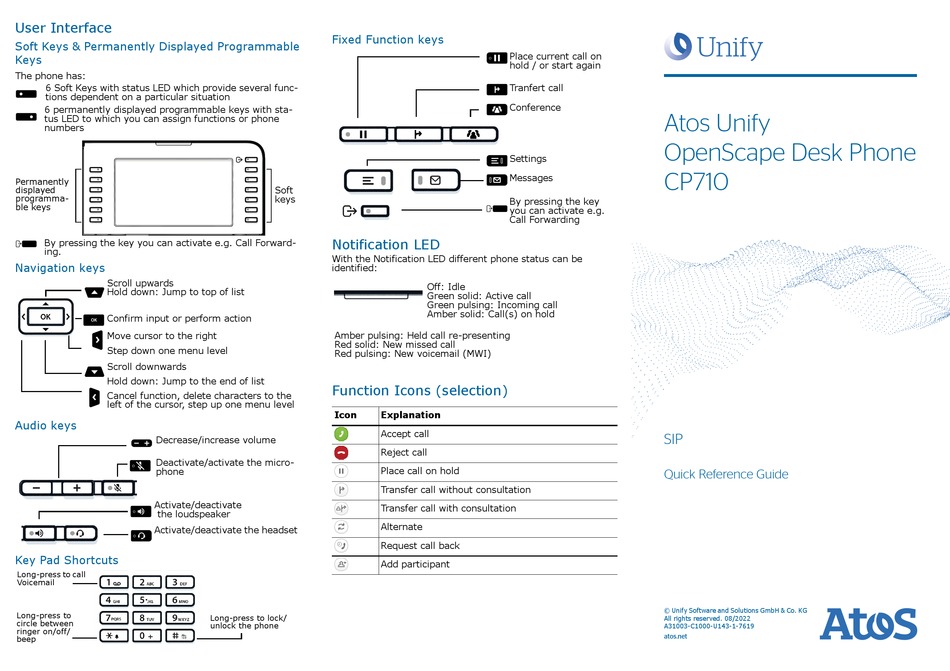

Atos Unify OpenScape CP710 Quick Reference Manual

User Interface
Soft Keys & Permanently Displayed Programmable
Keys
The phone has:
_ 6 Soft Keys with status LED which provide several func-
tions dependent on a particular situation
6 permanently displayed programmable keys with sta-
`
tus LED to which you can assign functions or phone
numbers
Permanently
displayed
programma-
ble keys
\
By pressing the key you can activate e.g. Call Forward-
ing.
Navigation keys
Scroll upwards
µ
Hold down: Jump to top of list
Z
Confirm input or perform action
«
Move cursor to the right
Step down one menu level
€ Scroll downwards
Hold down: Jump to the end of list
^
Cancel function, delete characters to the
left of the cursor, step up one menu level
Audio keys
"
Decrease/increase volume
;
Deactivate/activate the micro-
phone
: Activate/deactivate
the loudspeaker
. Activate/deactivate the headset
Key Pad Shortcuts
Long-press to call
Voicemail
Long-press to
circle between
ringer on/off/
beep
Fixed Function keys
Soft
keys
Notification LED
With the Notification LED different phone status can be
identified:
Amber pulsing: Held call re-presenting
Red solid: New missed call
Red pulsing: New voicemail (MWI)
Function Icons (selection)
Icon Explanation
Accept call
Reject call
Place call on hold
Transfer call without consultation
Transfer call with consultation
Alternate
Request call back
Add participant
Long-press to lock/
unlock the phone
Ä
Place current call on
hold / or start again
Ã
Tranfert call
Á
Conference
@
Settings
Â
Messages
By pressing the key
\
you can activate e.g.
Call Forwarding
Off: Idle
Green solid: Active call
Green pulsing: Incoming call
Amber solid: Call(s) on hold
Atos Unify
OpenScape Desk Phone
CP710
SIP
Quick Reference Guide
© Unify Software and Solutions GmbH & Co. KG
All rights reserved. 08/2022
A31003-C1000-U143-1-7619
atos.net
