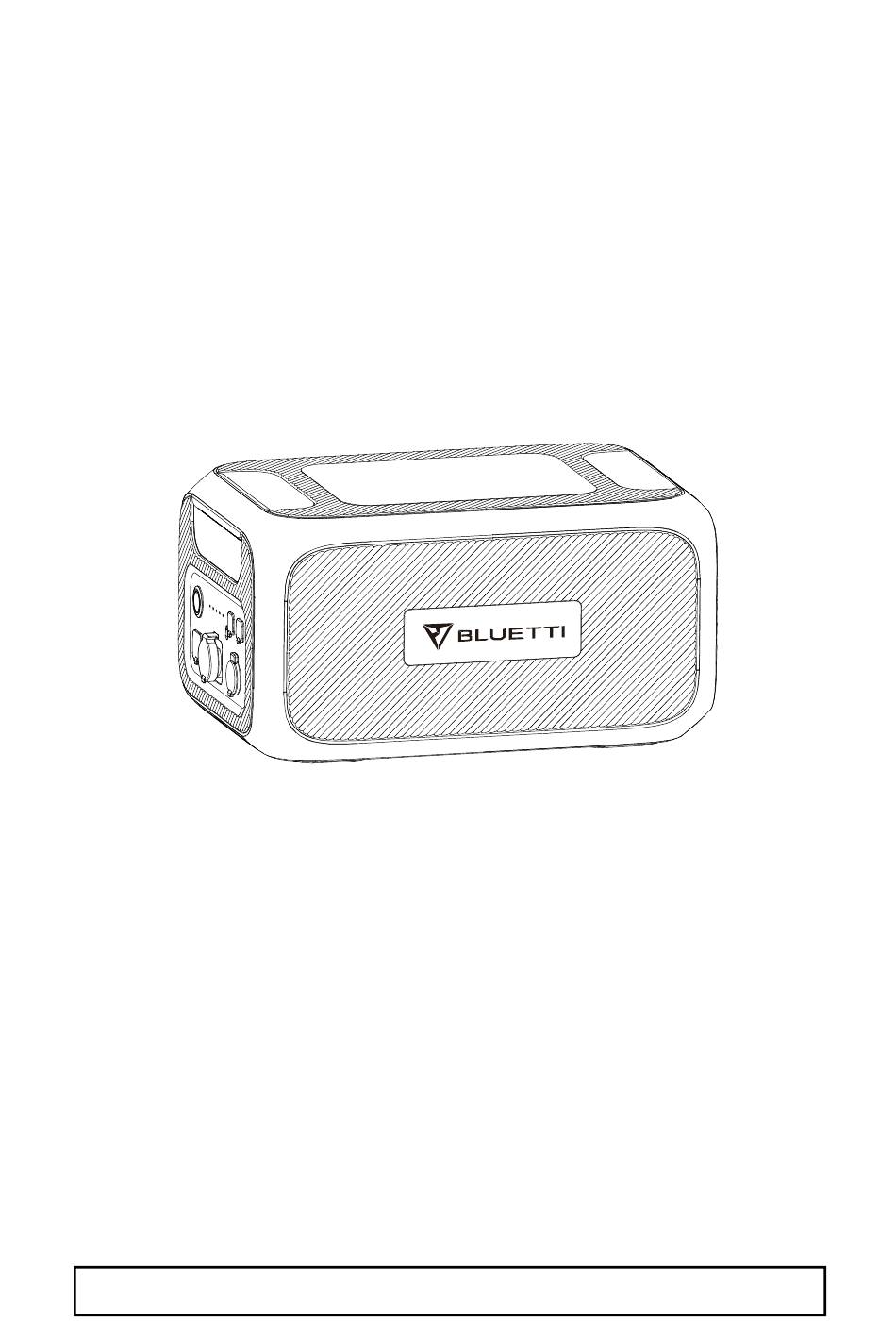

  • Page 1 User Manual Please read this manual before use and follow its guidance. Keep this manual for future reference.

  • Page 2: Table Of Contents

    English ..........01-10 01. BRIEF INTRODUCTION ......01 02. ABBREVIATION ........01 03. SAFETY INSTRUCTION ......01 04. BLUETTI APP ......... 02 05. IN THE BOX .......... 03 06. LET`S GET STARTED ......05 07. FEATURES ..........05 08. RECHARGE ..........06 09.

  • Page 3: English

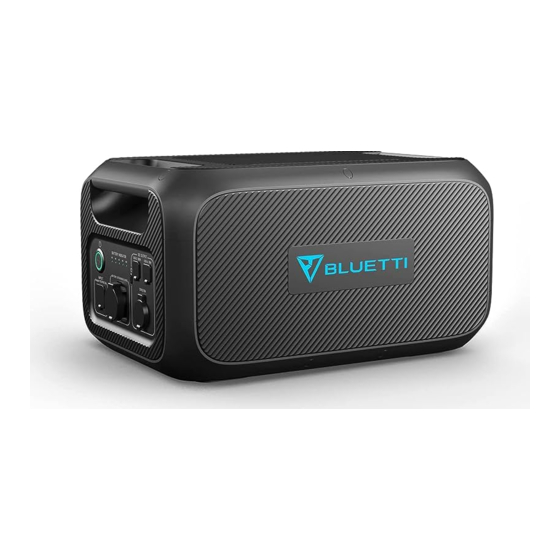

    1. BRIEF INTRODUCTION B230, extension battery pack owns 2048Wh capacity to support BLUETTI AC200MAX series. AC200MAX + B230 setup can be an emergency power center to run your home or travel essential appliances , or with enough solar panels, you can even live off-grid life on the way.

  • Page 4: Bluetti App

    We are not liable for damage caused by third- party equipment and may render your warranty invalid. 4. BLUETTI APP With BLUETTI App, the remaining capacity of B230 can be viewed via Bluetooth or on the touchscreen of AC200MAX when B230 has been connected to AC200MAX already.

  • Page 5: In The Box

    5. IN THE BOX Standard Accessories Category Quantity B230 Extension Battery Battery Extension Cable(P090D) For battery expansion, connect B230 with AC200MAX. B230 Portable Power Station User Manual Please read the manual before use and follow its guidance, keep this manual for future reference.
  • Page 6 Additional Purchase Accessories Sold on BLUETTIPOWER.COM Type Category Adapter D050S Charging Kit (Including D050S unit, PV Charging Cable, Car Charging Cable) D050S Lead-acid Charging Cable Optional Cigarette Lighter Port to DC5521 Input Cable camera, laptop etc) P090D-7909 Connect B230/B300 with EB120, EB150, EB180, EB240 Connect B230/B300 with AC200/P, AC200MAX, EB200/P, PS200A P090D-MC4...

  • Page 7: Let`s Get Started

    6. LET`S GET STARTED illuminate. 7. FEATURES Power Button DC Button Press to turn ON/OFF DC output. Press to turn ON/OFF the unit. LED Capacity Indicator Cigarette Lighter Port Show the remaining capacity of the unit(0-20-40-60-80-100%) USB-C Battery Extension Port To connecting B230 with AC200MAX.

  • Page 8: Recharge

    8. RECHARGE AC Charging (Default) (Charge B230 through adapter) Extension Charging 01 (Recharge AC200MAX by adapter)
  • Page 9 SOC-A: the remaining capacity of AC200MAX SOC-B: the remaining capacity of B230 battery pack will be charged simultaneously. Extension Charging 02 (adapter on B230) charged simultaneously.

  • Page 10: Ac200Max + B230 Extra Battery

    9. AC200MAX + B230 EXTRA BATTERYS the battery port of AC200MAX. a: Button 01 b: Switch 02 (Hotswap extension battery easy setup.) (AC200MAX + *1 B230 = 4096Wh Capacity)

  • Page 11: Technical Specifications

    10. TECHNICAL SPECIFICATIONS General Specs Model No. B230 Net Weight 21.8kg (48.0lbs) Dimensions 420*280*227.5mm (16.5*11.0*8.91in) Charge Temperature Discharge Temperature Storage Temperature 10-90% Humidity Capacity 2048Wh (40Ah) Battery Type LiFePO4 Standard Battery Voltage 51.2VDC DC Output Cigarette Lighter Port * 1 12VDC/10A USB-A * 1 3.6-12VDC, 3A,18W...

  • Page 12: Faq (Frequently Asked Questions)

    11. FAQ (Frequently Asked Questions) the product from. When B230 has been connected to AC200MAX, the firmware including ARM, Yes B230 supports simultaneous recharge&discharge. battery life, over-discharge will damage the battery cell. 12. DECLARATION specifications due to availability of material supplies or hardware improvements of the product over time.
  • Page 13 (2) this device must accept any interference received, including interference that may cause undesired operation. for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 14 Mobile Stromversorgung B230 bewahren Sie dieses Handbuch auf.
  • Page 15 Benutzerhandbuch bewahren Sie dieses Handbuch auf.

  • Page 16: Deutsch

    1. KURZE EINFÜHRUNG 2. ABKÜRZUNG 3. SICHERHEITSHINWEISE dieser Umgebung zu betreiben.
  • Page 17 4. BLUETTI APP oder auf dem Touchscreen des AC200MAXs eingesehen werden wenn der B230 bereits mit dem AC200MAX verbunden ist.
  • Page 18 5. IN DER BOX Standardzubehör Kategorie Menge B230 Erweiterungsbatterie an den AC200MAX angeschlossen. B230 Portable Power Station Benutzerhandbuch Bitte lesen Sie dieses Handbuch und befolgen Bitte bewahren Sie dieses Handbuch für zukünftige Referenzen auf. Garantiekarte Bitte bewahren Sie diese Garantiekarte...
  • Page 19 Verkauft auf BLUETTI POWER.COM Kategorie Adapter D050S Ladeset D050S Bleiakkumulator-Ladekabel Optionales Zigarettenanzünderanschluss an DC5521 Eingangskabel wie Routers,Kameras,Laptops usw.) P090D-7909 Verbinden Sie den B230/B300 mit dem EB120, EB150, EB180, EB240 P090D-XT90, XT90-Luftfahrtstecker Verbinden Sie den B230/B300 mit dem AC200/P, AC200MAX, EB200/P, PS200A...
  • Page 20 6. FANGEN WIR AN Betriebsschalteranzeige auf. erlischt die Betriebsschalteranzeige. 7. EIGENSCHAFTEN Netzschalter DC-Taste DC-Ausgang ein-/auszuschalten. Zigarettenanzünderanschluss an (0-20-40-60-80-100%) mit entsprechendem Stecker wie Fahrzeugstaubsauger, Minikühlschrank. USB-C USB-C-Kabel können genutzt werden um 100W Max) aufzuladen,wie zum Beispiel Smartphone, Tablet usw. Eingangsanschluss USB-A-Ausgangsanschluss Zum Aufladen der B230 über einen Adapter.
  • Page 21 8. AUFLADEN AC-Laden (Standard) (Laden Sie den B230 mit einem Adapter auf) Adapter aufgeladen wird. Verlängerungsladung 01 (Sie können AC200MAX durch den Adapter aufladen)
  • Page 22 SOC-A: die verbleibende Kapazität der AC200MAX SOC-B: die verbleibende Kapazität des B230-Akkupacks beide Einheiten gleichzeitig geladen. Verlängerungsladung 02 (Adapter auf B230) beide Einheiten gleichzeitig geladen.
  • Page 23 9. AC200MAX + B230 ZUSÄTZLICHE BATTERIEN a: Taste 01 b: Schalter 02 (Hotswap-Erweiterungsakku ist einfach einzurichten.)
  • Page 24 10. TECHNISCHE SPEZIFIKATIONEN Modell Nr. B230 Nettogewicht 21.8kg (48.0lbs) Dimensionen 420*280*227.5mm (16.5*11.0*8.91in) Ladetemperatur Entladetemperatur Lagertemperatur Luftfeuchtigkeit in der 10-90% Arbeitsumgebung 2048Wh (40Ah) Batterietyp LiFePO4 Standard-Batteriespannung 51.2VDC DC-Ausgang Zigarettenanzünderanschluss * 1 12VDC/10A USB-A * 1 3.6-12VDC, 3A,18W 5-15VDC,3A; USB-C * 1 20VDC,5A,100W Adapter AC-Eingang...
  • Page 25 dadurch zu vermeiden. 12. ERKLÄRUNG...
