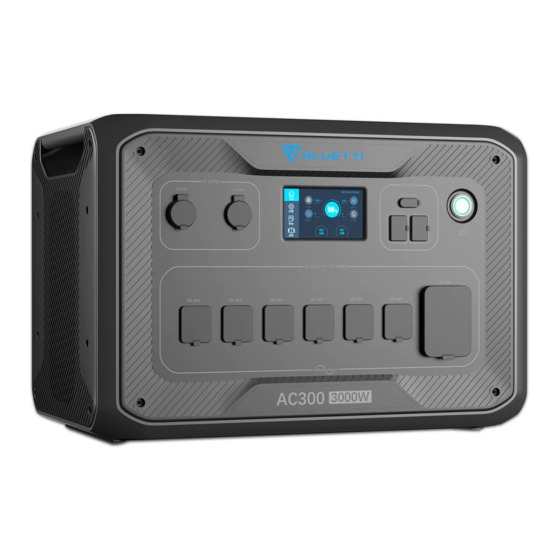

How to connect the AC300+B300 to
the US utility power.
https:// bluettipower.com/ technical support /10220706
Associated product(s):AC300+B300
Entry type: FAQ, Entry ID: 10220706, Entry date: 08/13/2022

Advertisement

Table of Contents
loading

Related Manuals for Bluetti AC300

Summary of Contents for Bluetti AC300

  • Page 1 How to connect the AC300+B300 to the US utility power. https:// bluettipower.com/ technical support /10220706 Associated product(s):AC300+B300 Entry type: FAQ, Entry ID: 10220706, Entry date: 08/13/2022...

  • Page 2: Table Of Contents

    1. How to connect one AC300+B300 to the utility power for 120 Volt Circuits “Single Phase” is set as the default machine type if you are operating a single AC300+B300. This is the only and correct setting if a single AC300+B300 is being used.
  • Page 3 How to connect the AC300+B300 to the US utility power Then installed by the electrician refer to the example as below:...

  • Page 4: How To Connect Two Ac300+B300 To The Utility Power For 240 Volt Circuits

    2. How to connect two AC300+B300 to the utility power for 240 Volt Circuits If you purchased two AC300+B300 to get the back-up power for household as 240 Volt Circuits. Firstly, please purchase a manual transfer switch and the accessories as following:...
  • Page 5 (5) If one of the AC300+B300 is out of power, the Split Phase Bonding function will deactivate automatically. Warning: If you insist to charge the AC300+B300 which has been connected into split phase box already, please make sure the L1/L2/N wire is set at the right place or the AC300+B300 will be damaged.
  • Page 6 How to connect the AC300+B300 to the US utility power Step7: Click the “single phase” of the Machine Type setting, then click the “Split phase” Step8: Click the “Master” Step 9: Turn on another AC300+B300. Step10: Click the setting button on the LCD.
  • Page 7 CONNECTION: Machine type is just used to set for Split Phase, “Split Phase” is only used for connecting 2* AC300+B300 ( 100-120V Version) bonded 1 pairs of AC300+B300 to one power system to double the output power, voltage, so as to capacity. Please refer to Split Phase setting for detailed information.
  • Page 8 How to connect the AC300+B300 to the US utility power NEMA L14-30R outlet to install the AC charge plug, the connect method as following:...
  • Page 9 NOTE: 1）In split phase system, you may charge it via PV with the same method you charge one of them, id est charge through DC Input port on AC300. You may also dual charge it via PV and the BLUETTI 30A-AC-charging-cable simultaneously. (AC input only through the BLUETTI 30A-AC-charging-cable but not the original AC charging cable) 2）Before you begin installing your Reliance Controls transfer switch system, you need to create a plan for the appliances you choose to run during a power outage.
  • Page 10 How to connect the AC300+B300 to the US utility power Please installed by the electrician refer to the example as below:...

  • Page 11: Accessories

    How to connect the AC300+B300 to the US utility power 3. Accessories: 3.1 Transfer switch a) If you want to get 6-circuit,please purchase a manual transfer switch as following: https://www.amazon.com/30-Amp-6-Circuit-Manual-Transfer-Switch/dp/B00X7VVVTS/ref=asc_df_B00X7VVVTS/?tag=hyprod- 20&linkCode=df0&hvadid=309788238907&hvpos=&hvnetw=g&hvrand=14413753645099096762&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=1013962&hvtargid=pla -570657575965&psc=1 If you want to get 10-circuit,please purchase a manual transfer switch as following:...

  • Page 12: Nema L14 Extension Cord

    If you want to get 10 FT NEMA L14 extension cord , the referenced purchase address as following https://www.amazon.com/VOGREX-Generator-Extension-L14-30P-L14- 30R/dp/B099R9YWT8/ref=sr_1_2?crid=N3G3QLMF57TD&keywords=nema%2Bl14%2Bextension&qid=1658719628&sprefix=name%2Bl14%2Bextention%2Caps%2 C249&sr=8-2&th=1 3.3 BLUETTI 30A-AC-charging-cable If you purchased two AC300+B300 to get 240V, you need to purchase one 30A AC Charging Cable for split-phase function Purchase address: https://www.bluettipower.com/products/30a-ac-charging-cable-for-split-phase-function...

  • Page 13: Bluetti Fusion Box

    How to connect the AC300+B300 to the US utility power 3.4 BLUETTI FUSION BOX The BLUETTI FUSION BOX as following, you could connect the FUSION BOX to the transfer switch by the L14 extension cord https://www.amazon.com/BLUETTI-Fusion-Voltage-Capacity- Station/dp/B0B2WG9B9Y/ref=sr_1_5?crid=1D8POL0HYBHZS&keywords=p030A&qid=1658881772&sprefix=p030a%2Caps%2C261&sr=8-5 NEMA L14-30 inlet Box NEMA L14-30 inlet box connect to the transfer switch, plug the L14-30R of the L14 extension cord.

  • Page 14: Nema L14-30R Outlet

    How to connect the AC300+B300 to the US utility power 3.6 NEMA L14-30R outlet The BLUETTI 30A-AC-charging-cable need plug into a L14-30R outlet for charging both EP500 pro. The purchase address as following https://www.amazon.com/Journeyman-Pro-Receptacle-Industrial-Grounding-Generator/dp/B07P8CGH52/ref=sr_1_7?crid=1WRMKA4V397S&keywords=l14- 30r+receptacle&qid=1657944329&s=hi&sprefix=%2Ctools%2C405&sr=1-7 Extension Cord Adapter NEMA TT30-P to L14-30R https://www.amazon.com/Adapter-Extension-L14-30R-Welding-Generator/dp/B094HSBVVV/ref=sr_1_10?crid=1CI1AA0X59T03&keywords=tt-...

  • Page 15: More Information

    How to connect the AC300+B300 to the US utility power 4. More information: Website: www.bluettipower.com Email: service@bluettipower.com...
