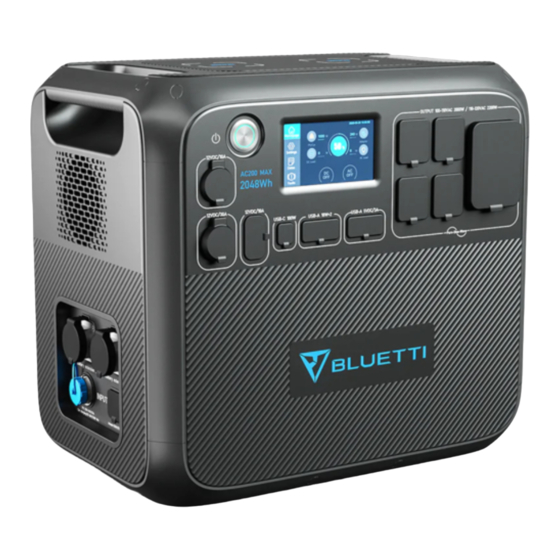

Bluetti AC200MAX User Manual
  1. Manuals
  2. Brands
  3. Bluetti Manuals
  4. Power Supply
  5. AC200MAX
  6. User manual

Bluetti AC200MAX User Manual

Ac200 portable power station
Hide thumbs Also See for AC200MAX:
Table of Contents

Advertisement

Quick Links

Download this manual
AC200 Portable Power
Station
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC200MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bluetti AC200MAX

Summary of Contents for Bluetti AC200MAX

  • Page 1 AC200 Portable Power Station User Manual...

  • Page 2: Safety Instructions

    Safety instructions Please observe the following instructions to ensure safe usage: Do not alter or disassemble this product. Do not move during charging or using it, because the vibration and impact during moving will lead to poor contact of output interface. In case of fire, use dry powder fire extinguishers for this product.

  • Page 3: Packing List

    1. Packing list No. Product Quantity(pcs) standard option Power Station √ AC adapter (including AC charging cable) √ MC4 Solar charging cable (MC4 to XT90) √ Car charging cable (car to XT90) √ XT90 to aviation plug (input) √ User manual √...

  • Page 4: Function Introduction

    2. Function introduction Power button 12V / 25A output 12V / 10A cigarette lighter port 8. 12V / 3A output Type-C charging port 9. PV / car input port Touchable interaction LCD display 10. AC adapter input port USB output x 4pcs 11.

  • Page 5: How To Use The Touch Screen

    3. Startup and shutdown operation (1) Start up: short press the power button, the indicator light is on, and the machine is in standby mode. (2) Shutdown: press and hold the power button for more than 2 seconds, and the indicator light will be off and the machine shut off.
  • Page 6 (Figure1) Homepage button Date/Time Settings button DC load information display button Data button i. DC ON/OFF button Faults button AC ON/OFF button PV/Car charging display button Adapter charging display button BMS information display button AC load information display button (2) Click the settings button in the main interface (Figure 2) to enter the setting interface as follows (Figure 3) : Warm tip: Please enter the setting interface to set the date and time according to the local time zone, and check the output voltage, frequency and other parameters for the first...
  • Page 7 Language: Japanese, English Date and time: 2000-00-00、00：00：00 Please set the "Date and time" at least once every 2 weeks. Press to configure it. （ Figure2 ） （ Figure3 ） (3) Return to the main interface (Figure 1), click the “Data” button to enter the page (Figure 4) : ●Click the “Product Info”...

  • Page 8: Charging The Product

    ●Click the “BMS Maintenance” button, you can view the operation information of BMS, and this part can also be accessed directly from the shortcut key in the main interface; ●Click the “Fault History” button, you can view all the fault information generated by the machine.
  • Page 9 ●Choose the solar panel with working voltage DC 35V-150V. ●Connect the solar panel to the product via solar charging cable included. ●Plug and play charging: it will start charging automatically after connecting the solar panel to the product even it is off status. ●...

  • Page 10: Application Scenario

    ●Connect to the positive and negative poles of the battery through the provided solar charging cable(pay attention to distinguish the positive and negative poles of the battery, the red head is the positive pole, and the black head is the negative pole) . ●Enter the setting interface as shown in (Figure 2) through the display screen to set DC input source to “car mode”...
  • Page 11 9. Examples of loads (1) 12V / 25A, 12V / 3A, cigarette lighter port, USB and type C output port are suitable for most products in the market, but some products may trigger overcurrent protection if there is a large current impact at the moment of starting. (2) The power of electrical products used for AC output should be less than 2000W.

  • Page 12: Specification

    11. Specification Output Rated output power 2000W Low rated voltage 100-120Vac High rated voltage 220-240Vac ＜ 5% Efficiency ＞ 88%（R load） AC output 2000W<load<2500W, 2min； Overload capacity 2500W<load, immediately Short circuit protection Over temperature protection yes load<1500W, Max.45dB； Noise load>1500W, Max.54dB Rated voltage Rated current DC12V/25A...
  • Page 13 Input input voltage 100-240VAC AC charging Maximum charging voltage 58.8 VDC maximum charging power 500W input voltage 11.5V-14.4V/23V-28.8V Car input Input current 8.2A input voltage 35V-150V 12A （ only 12A will be received When Input current Solar panel the current exceeds 12A） Input maximum power 700W Remarks:...

  • Page 14: Storage And Maintenance Instructions

    12. Storage and maintenance instructions (1) Please fully charge the machine before storing it. (2) Turn off all power buttons. (3) To preserve the battery liftspan, please use and recharge at least once every 6 months. (4) Ensure proper ventilation while in use or store and keep away from any combustible materials or gases.
  • Page 15 (4) Ensure that the load equipment meets the power limit of the product, that is, the load power is within the maximum input range of each output interface; If the above steps still do not solve the problem, please contact the seller for help. 15.
  • Page 16 Contact us For enquiries or comments about our products, please email us at ( sale-eu@bluetti.com or sale-uk@bluetti.com), and we will get back to you as soon aspossible.
