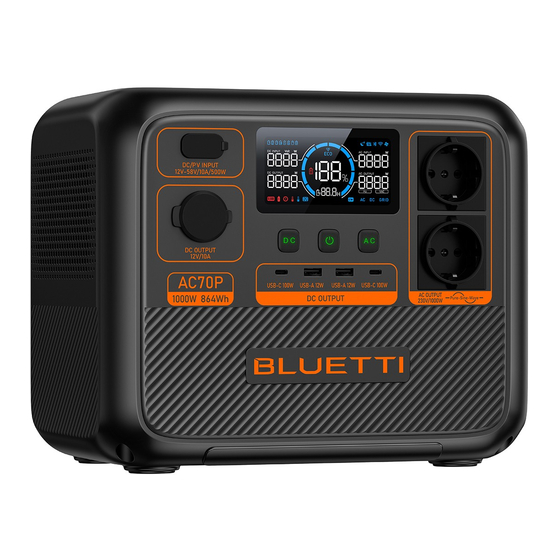

- Page 1 AC70P Portable Power Station User Manual Please Read This Manual Before Use And Follow Its Guidance. Keep This Manual For Future Reference.
- Page 2 Warning 1. Charge the unit before first use. 2. Do not use solar panels with open circuit voltage higher than 58V. Solar input voltage range for the unit is 12V-58VDC. 3. Charge the unit immediately when the SoC drops below 5%. If the SoC drops to 0, power off the unit and charge it for at least 30 minutes before restarting.
- Page 3 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 4: Table Of Contents
Contents Safety Instructions Packing List Product Overview Power ON/OFF LCD Screen Charging Discharging Settings BLUETTI App Specifications Troubleshooting Appx. 1 Estimating Operation Time Appx. 2 FAQs... -
Page 5: Safety Instructions
The safety instructions provided herein are for illustrative purposes that include but are not limited to those listed in this manual. Actual operation shall comply with all applicable safety standards. If you have any questions, feel free to contact BLUETTI support or your local BLUETTI dealers. - Page 6 the cord when disconnecting the product. f. Do not use a battery pack or appliance that is damaged or modified, as they may exhibit unpredictable behavior resulting in fire, explosion, or personal injury. g. Do not operate the product with a damaged cord or plug, or a damaged output cable. h.
- Page 7 s. In case of fire, use only a dry powder fire extinguisher appropriate for the product. t. WARNING - RISK OF ELECTRIC SHOCK. Never use the product to supply power tools to cut or access live parts or live wirings, or materials that may contain live parts or live wirings inside, such as building walls, etc.
- Page 8 It's recommended to charge the product via an AC source. If charging via solar energy, ensure that your solar system provides an output of more than 100W. BLUETTI shall not be liable for any equipment damage caused by the violation of the above instructions.
-
Page 9: Packing List
2. Packing List Standard Packaging Item Picture Qty. Portable Power Station AC Charging Cable Car Charging Cable Solar Charging Cable Grounding Screw （M5×10） User Manual Warranty Card JUST POWER ON... - Page 10 Cigarette Lighter to DC5521 Cable (For 12V devices with DC5521 port, such as routers, cameras, etc.) Lead-acid Battery Charger (Charge a 12V/10A lead-acid battery via AC70P. For gasoline vehicle batteries only.) Lead-acid Battery Charging Cable Kit (Charge the AC70P via a lead-acid battery.)
-
Page 11: Product Overview
Whether you're embarking on outdoor adventures, road trips, or camping trips with friends, the AC70P is built to accompany you every step of the way. So, go ahead and embrace your travel plans with confidence, knowing that the AC70P will provide reliable power whenever you need it. -
Page 12: Power On/Off
2 seconds to turn off the unit. • AC ON / OFF: When the AC70P is on, press the AC power button to turn it on / off. • DC ON / OFF: When the AC70P is on, press the DC power button to turn it on / off. -
Page 13: Lcd Screen
5. LCD Screen 4 5 6 ① ⑬ ECO Mode Power Lifting Mode ② ⑭ Turbo Charging Charge / Discharge Remaining Time ③ ⑮ Battery Capacity (SoC) Charge / Discharge Status ④ ⑯ Silent Charging Low Temperature Alert ⑤ ⑰ High Temperature Alert DC Input ⑥... - Page 14 LCD Instructions Startup LCD lights up Shutdown LCD lights off displays ECO Mode enabled displays Turbo Charging enabled State of Charge displays Silent Charging enabled displays DC input displays Bluetooth connected displays or flashes Fan on or abnormal AC input power AC output power displays AC input...
-
Page 15: Charging
AC70P supports four charging methods: AC, solar, car, and generator. 6.1 AC Charging Plug the AC70P into a standard wall outlet and start charging. Once it's fully charged, the AC70P automatically stops charging to prevent overcharging. For a fast charge, you can enable Turbo Charging in the BLUETTI App, which allows for an 80% capacity in just 45 minutes at an ambient temperature of 25℃... - Page 16 The AC70P also automatically stops charging when it's fully charged. On average, it takes about 7-9 hours to refill the AC70P using a 12V port and 4-5 hours with a 24V port at an ambient temperature of 25℃ (77 ℉).
-
Page 17: Discharging
Appliances up to 1000W power. 2 × AC Outlet 50Hz / 60Hz e.g., air conditioners, refrigerators Note: Do not apply AC70P to loads higher than 1000W, as this may cause damage to AC70P and your devices. 7.2 DC Discharging Item Specifications Compatible Loads 12V DC appliances up to 120W power. - Page 18 ECO Mode is a power-saving mode that is enabled by default. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC70P is bearing low (less than 40W or the set power) or no load for a while.
-
Page 19: Bluetti App
Offers a quiet, low-power Silent 4 hours operation. 9. BLUETTI App Scan the QR code below or search "BLUETTI" in the App Store or Google Play to download the BLUETTI App. For more details, please refer to BLUETTI APP INSTRUCTIONS. 10. Specifications Model... - Page 20 Country / Region EU / UK / AU AC Output Power 1000W in total Voltage 100VAC 120VAC 220VAC 230VAC Current 8.3A 4.5A 4.3A Frequency 50Hz / 60Hz DC Output Cigarette Lighter Port 12VDC / 10A USB-A *2 5VDC / 2.4A each port USB-C *2 5 / 9 / 12 / 15 / 20VDC, 3A;...
-
Page 21: Troubleshooting
Check if the grid frequency is too low. Contact E116 Grid underfrequency your local power provider if necessary. Disconnect the grid input and contact BLUETTI E117 Grid oscillation support for further assistance. Others Please contact BLUETTI support for assistance. -
Page 22: Appx. 1 Estimating Operation Time
Operation time = Battery Capacity (Wh) x DoD x η ÷ (Load Power + Self-consumption of AC70P) Note: DoD refers to depth of discharge. AC70P works at 90% DoD for longer battery life. η is the conversion efficiency of the inverter, typically over 85% for AC70P. -
Page 23: Appx. 2 Faqs
ECO Mode helps save power, and you can turn it on or off on the screen. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC70P is bearing low or no load for a while. You can set the power threshold of AC output and DC output to 10W-30W / 5W-10W, respectively, for 1, 2, 3, or 4 hours.
