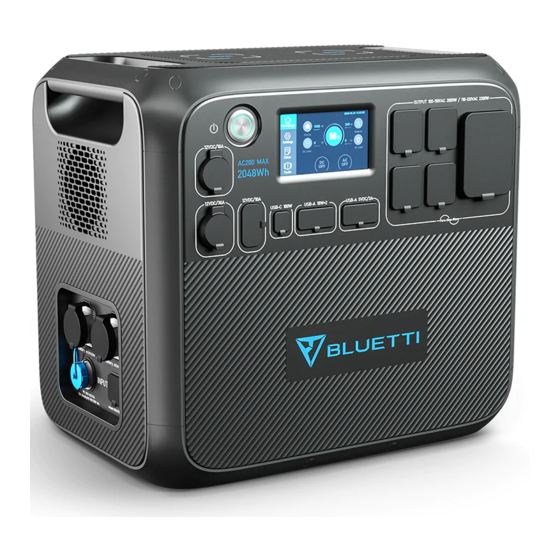

- Page 1 AC200MAX Portable Power Station Please read this manual before use and follow its guidance. Keep this manual for future reference.
- Page 2 User Manual Please read this manual before use and follow its guidance. Keep this manual for future reference.
-
Page 3: Table Of Contents
10. CHARGING ........... 11 11. DISCHARGING ........14 12. APPLICATION SCENARIO ......14 13. EXAMPLES OF LOADS ......14 14. AC200MAX + B230 CONNECTION ... 15 15. ESTIMATION OF OPERRTING TIME .... 17 16. TECHNICAL SPECIFICATIONS ....17 17. TROUBLE SHOOTINGS ......20 18. -
Page 4: Brief Introduction
BLUETTI B230 or B300. With two BLUETTI B300 you can easily expand your AC200MAX to a massive 8192Wh of capacity to run all of your essential needs at home or on-the-go for hours, days, or even more than a week! 2.ABBREVIATION... -
Page 5: Bluetti App
● DO NOT move the unit while operating as vibrations and sudden impacts may lead to poor connections to the hardware inside. ● Warning: DO NOT insert foreign objects into any ports of the AC200MAX (both AC & DC & ventilation holes). The power station generates the same potentially lethal AC power as a household wall outlet. -
Page 6: In The Box
Just Power On The basic information of your AC200MAX can be viewed after the unit has connected with the App successfully. Press the ‘’gear icon’’ to customize the current working mode and parameters of your AC200MAX under “Settings”. NOTE: Please keep your phone within 5m/16.4ft of the AC200MAX in order to reduce connectivity issues during update. - Page 7 BLUETTI PV Charging Cable (XT90 - MC4 For solar charging, up to 15A,900W. AC200MAX Portable Power Station Car Charging Cable (XT90 - Cigarette Lighter Port) Charge AC200MAX by car. AC200MAX Portable Power Station Multi-functional Aviation Cable (XT90 - Aviation) Expand the charging methods via PV input port.
- Page 8 Optional Output 2V/30A Output Bundle Accessories (Aviation - XT60, XT60 - SPC45) Perfect for RV. Optional Accessories D300S PV Step Down Module Step down the voltage of solar panels(especially rigid panels) to adapt to AC200MAX solar input limit range.
-
Page 9: Features
BLUETTI Optional Accessories B230 Extension Battery Pack Add extra 2048Wh capacity, up to 2 B230 can be connected to AC200MAX Optional Accessories B300 Extension Battery Pack Add extra 3072Wh capacity, up to 2 B300 can be connected to AC200MAX. 6.FEATURES... -
Page 10: Let`s Get Started
RV parks in the United States and Canada. Battery extension port x 2pcs USB-A 5V/3A output x 2pcs The port to connect AC200MAX with B230 or B300 battery pack. Classic USB-A ports. DC input port... -
Page 11: Touchscreen
BLUETTI (1) Startup: short press the power button to turn it on, the indicator light is on. (2) Shutdown: press and hold the power button for more than 1 seconds, and the indicator light will be off. The LED indicator lamp status... - Page 12 EU: 230V/50Hz UK: 230V/50Hz DC Input Source: Select the right method you choose to charge AC200MAX. ECO Mode: While it`s on, the AC output ports will be automatically turned off if the load on it is less than 50W over 4 hours.
- Page 13 ● Tap the “Fault History” icon, all the fault information generated by the AC200MAX in daily use. （Figure 4） (4) Tap Alarm Icon (mainpage) to view the current error information: the fault...
-
Page 14: Charging
Just Power On 10.CHARGING (1) From AC wall outlet ● Turn AC200Max ON and connect the plug of adapter to the wall outlet, the other side to AC input port. Charging will automatically stop when it reaches 100%(4.6-5.1Hrs). (2) From the solar panels ●... - Page 15 BLUETTI (4) Generator Charging(gasoline, propane or diesel) ● Connect the AC adapter input to the generator and the output port to the AC charging port of the machine. ● Press the power button, the product will be charged, the charging will automatically stop when it reaches 100%.
- Page 16 ● Set the DC input source to PV to achieve AC + PV Dual Charging ● Set the DC input source to others to achieve AC + T500/Lead-Acid Battery Charging. Others Lead-acid Battery Solar Panels Adapter (AC200MAX Dual Charging System)
-
Page 17: Discharging
BLUETTI 11.DISCHARGING (1) Turn on 12V/30A, 12V/10A, cigarette lighter port, USB and USB-C output: press the power button, then enter the main interface through the touch screen, tap the DC ON/OFF button and confirm, Turn off these output, and also tap the DC ON/OFF button and confirm. -
Page 18: Ac200Max + B230 Connection
(5) This machine supports charging and discharging simultaneously. 14.AC200MAX + B230 CONNECTION Capacity Extended ● AC200MAX can extend the capacity by 1-2 B230 battery pack to 4096- 6144Wh. ● AC200MAX can extend the capacity by 1-2 B300 battery pack to 5120- 8192Wh. - Page 19 BLUETTI a:Button 01 b:Button 02 a:press to turn ON/OFF the extended battery function. b:switch to LOCK/UNLOCK the cable with AC200MAX. AC200MAX AC200MAX B230 B230 Barb down ① Barb down Finish ② Lock ① ② Lock Second Step First Step B230...
-
Page 20: Estimation Of Operrting Time
200W 2048Wh × DOD × η ÷ (load W) = charging time（unit：h） Note：DOD is the battery discharge depth，η is the local inverter efficiency, DOD=90%, η =88%。 16.TECHNICAL SPECIFICATIONS Model No. AC200MAX Net Weight 28.1kg (61.9lbs) Dimensions 420*280*386.5mm (16.5*11.0*15.2in) Charge Temperature 0-40℃... - Page 21 BLUETTI 100V 2000W 110V 2200W Power of Output 120V 2200W 220-240V 2200W UK,EU 2000W<load<2500W,2min； 100V Error Range：± 30W ； 2500W<load,8~10S 110V Over-load Clear the alarm history 2200W<load<2750W,2min； 120V and reboot the unit. 2750W<load,8~10S 220-240V Surge 4800W 100ms 50/60Hz ± 0.5Hz...
- Page 22 Just Power On Voltage 13.5V Current Over-load 400W 2s, Turn off output function Power Short- circuit Turn Off all DC output ports. Protection Note: a: 30A Max. current for all DC output port b: The cigarette lighter port will be shut off once overload. c: 12V/30A port will be shut off when overload again.
-
Page 23: Trouble Shootings
Max. Charging Power 500W Note: a: AC200MAX can be automatically activated(turn the unit ON without pressing the power button from POWER OFF) via solar power. Please unplug the DC input cable if you want to enable the auto activation. b: AC200MAX is not able to activate via adapter. -
Page 24: Faq (Frequently Asked Questions)
Just Power On USB/TYPE-C/PD Over Current 12V/10A Over Current 12V/30A Over Current DC Start Failure DC Output Relay Error Bus Start Failure Inverter Start Failure Bus Low Voltage Bus High Voltage Inverter Low Voltage Inverter High Voltage Inverter Low Frequency Inverter High Frequency Battery High Voltage Battery Low Voltage... -
Page 25: Declaration
● Can the unit be upgraded? When AC200MAX connected with BLUETTI App via bluetooth, the firmware including ARM, DSP, IoT and BMS can be upgraded online through OTA. ● Can it be charged and discharged at the same time? Yes. - Page 26 P/N:17.0303.0380-00A0...
