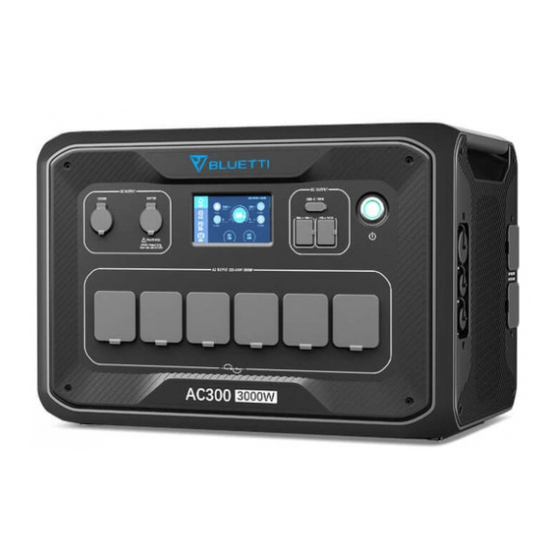

- Page 1 AC300 Portable Power Station Please read this manual before use and follow its guidance. Keep this manual for future reference.
- Page 2 User Manual Please read this manual before use and follow its guidance. Keep this manual for future reference.
- Page 3 Contents 01. AC300 INTRODUCTION ......01 02. GENERAL SAFETY INSTRUCTIONS .... 02 03. IN THE BOX ........... 05 04. APP USER GUIDE ........07 05. FEATURES OF AC300 ....... 11 06. STARTUP & POWER OFF ......11 07. USER INTERFACE ........12 08.
- Page 4 (Main Panel) (BLUETTI Sub Panel) ( AC300 grid-tie home power back-up system ) 1.2. Abbreviation ● BMS: Battery Management System ●...
- Page 5 ● A licensed electrician is required to install the grid-tie power system as it involves connecting the wires of critical loads from your main electrical box to the BLUETTI Sub Panel (Optional Purchase). ● DO NOT place the power station near heat sources. It is prohibited to place the equipment in an environment with flammable, explosive gas, or smoke.
- Page 6 2.1. Installation (for grid-tie system) ● Before touching any conductor surface or terminal, measure the voltage of the contact point to confirm that there is no danger of electric shock. ● After the equipment is installed, empty packaging materials such as cartons, foam, plastic, cable ties, etc.
- Page 7 precautions and grasp the correct method of operation. ● Trained personnel: personnel who have undergone corresponding technical training and have the necessary experience to be aware of the danger that may be brought to him during the operation, and can take measures to reduce the danger to himself or other personnel to at the lowest limit.
- Page 8 ● If liquid is found inside the device, user must turn off the power immediately. ● The equipment room must be properly insulated and the walls and floors must be damp-proof. 03. IN THE BOX Standard Accessories Category Quantity AC300 Power Station AC Charging Cable (15A Charge the AC300 with B300）...
- Page 9 Additional Purchase Accessories Sold on BLUETTIPOWER.COM Category 30A Charging Cable Full speed charging from L14-30 receptacle. Lead-acid Battery Charging Cable Charging AC300+B300 via Lead-acid battery. PV Drop Down Module（D300S) Connect to rigid panels. 12V/30A XT60 to Aviation Plug For 30A Output XT60 to SPC45 To support DC power supply for RV.
- Page 10 ( Main Interface - Settings - Next - Next - Next ) Step 1: ● Search for “BLUETTI” in the App Store (for iOS devices) or Google Play (for Android devices) to download the BLUETTI App to remotely control your AC300+B300. The AC300+B300 system can be controlled via either Bluetooth or Wi-Fi.
- Page 11 ● Check your email account you used in the BLUETTI App for the verification code sent from BLUETTI server and fill in the activation code located within the email to activate your BLUETTI account. Step 2： ● Connect AC300 with B300. Scan the unique QR code on AC300 to add the unit on the available device list on the App, and fill it with the password of your 2.4GWi-Fi network to activate the communication function of AC300 for...
- Page 12 Tap ‘’gear icon’’ to customize the current working mode and parameters of your AC300 under “Settings”. ● The BLUETTI App supports a “Firmware Update” function which allows access to the latest software upgrades for continued features, improvements and fixes.
- Page 13 User cannot turn on AC300 via BLUETTI App. Also, if BLUETTI APP fails to connect to the Internet. Tap "Settings" on the mainpage of your phone and scroll down until the BLUETTI App shows up(IOS). Tap "Settings" on mainpage of your phone, tap “Application Management”...
- Page 14 05. FEATURES OF AC300 24V/10A Cigarette Lighter Port Wireless Charging Pad 12V/30A Port Power Button LCD Screen USB-C(PD3.0 protocol supported) USB-A (fast charging) Battery connection port USB-A AC Input Port AC Output Port(20A MAX) DC1/DC2 Input Port AC Output Port(30A MAX)
- Page 15 button indicator will illuminate. ● Power Off AC300: Long press the power button. The power button indicator light will turn off. ● DC power switch and AC power switch are accessible via the Touchscreen LCD. Press the “DC ON/OFF” button and/or “AC ON/OFF” button on the screen to turn ON/OFF the DC/AC output.
- Page 16 . Homepage . Date/Time . Settings . DC load Information . Data . DC ON/OFF . Alarm . AC ON/OFF . PV Charging Information . AC load Information . BMS Information . AC Charging Information 7.2. Settings ● You can customize the working mode of AC300+B300 and tweak the parameters such as language, voltage, frequency, current (UPS In-Grid Mode), working type, date/time, etc.
- Page 17 DC1 PV+/PV- Can be set on screen: (Mainpage - Settings - DC1/DC2 Input Source) DC2 PV+/PV- (Cable No.3) 7.2.3 Language Setting & ECO Mode ● Press “English” or “Japanese” icon to set as the system language display of your AC300. ●...
- Page 18 ● Please check the specification of your grid, sockets, connections, wires, etc. to determine the maximum allowable current that can be drawn by the AC300. BLUETTI is not liable for any damages, injuries, or any other legal responsibility incurred directly or indirectly from changes made to this setting.
- Page 19 7.2.8. Bluetooth & Wi-Fi Connection The Bluetooth and Wi-Fi connection can be turned ON or OFF by tapping the ON and OFF icon for either function. User cannot connect AC300+B300 to BLUETTI App when both of the Wi-Fi and Bluetooth function is disabled.
- Page 20 ● When you select the “Product Info” button, you can view the product model, serial number (SN), control software version, monitoring software version, BMS monitoring software version and display software version. ● The Serial Number (SN) can also be used to pair to BLUETTI APP manually.
- Page 21 7.3.2. Inverter & Charger Info By tapping the “Inverter & Charger Info” button, user can view the PV charging, adapter charging, DC output and AC output working status. This section can also be accessed directly from the shortcut icon on the homepage. 7.3.3.
- Page 22 ● The two ports are named as Aviation Charging Port 1 [CP1] and Aviation Charging Port 2 [CP2]. By using BLUETTI Wind Turbines, an ultra- connect, highly efficient wind charger lets you harness the wind to rapidly recharge Aviation Port 1(CP1) the AC300+B300.
- Page 23 @1500W/100Vac, @1800W/120Vac Max. The charging process will automatically stop when it reaches 100% capacity. Additionally, you can choose to access the BLUETTI Sub Panel or the L14-30 receptacle, the maximum charging power allowed will be up to 3000W. DO NOT charge the JP/US version(100-120V) AC300+B300 through 220- 240V circuit.
- Page 24 8.2. CP2 (2 Charging Port) Pin1:DC1 PV+ Pin2:DC2 PV+ Pin3:DC1 PV- Pin4:DC2 PV- Pin1 Pin2 Pin3 Pin4 8.2.1. Charging Method 3: Solar Panels (via 4pin aviation-MC4 cable) ● For regular solar panels: The AC300+B300 supports two PV inputs. Each individual input supports up to 12A and the charging voltage should be between 12-150V.
- Page 25 ● If you choose roof/rigid panels to be the solar power source to charge your AC300+B300, user can easily connect your rigid panels with the MC4- to-Aviation cable to your AC300+B300. The optional PV Module (additional accessory) is required to step down the voltage if the open circuit voltage produced by your roof panels exceeds the limit of AC300 can handle: 12- 150VDC, 12A*2.
- Page 26 ● Tap “setting” at homepage to set DC1/2 input source to “Others” to charge from lead-acid battery. 8.3. Dual Charging By using BLUETTI Wind Turbines, an ultra- connect, highly efficient wind charger lets you harness the wind to rapidly recharge Aviation Port 1(CP1) the AC300+B300.
- Page 27 CP1 Charging Port Select: Method 1: GEN charging cable Method 2: AC charging cable CP2 Charging Port Select: DC Input1: Method 3: Solar panels (DC Input Source 1, Select PV on the touchscreen) Method 4: T500 charging adapter (DC Input Source 1, Select Others on the touchscreen) Method 5: 12V Car Charger/Storage battery (DC Input Source 1, Select Others on the touchscreen)Method 6: 24V Car Charger/Storage battery(DC Input...
- Page 28 Method 11:PV Parallel (PV parallel needs to be enabled on the touchscreen) 8.4. How to calculate the recharging time of AC300 E.g. : The total recharging power is 5400W(3000W+2400W) recharged by AC and 2nd PV at same time, the estimation time will be 1.6-2.1Hrs.(AC300 with two B300 in parallel) 09.
- Page 29 EU Version JP/US Version 6 * 220-240V/20A 7 * 100-120V/20A Only the NEMA TT-30 can generate 3000W,30A power of output, the standard AC output port can produce 2000-2400W,20A power of output. UK Version AU Version 6 * 220-240V/20A 6 * 220-240V/20A 9.1.2.
- Page 30 9.2. Operation Time Estimation AC300 + B300*2 = 6144Wh ●Kitchen Equipment Refrigerator Electric Fry Pan Microwave Oven Washer 700W(24h) 1500W 1000W 500W(1000W) 2.8 Day 3.3 Hrs 5.0 Hrs 4.8-9.2 Hrs ●Home Equipment Space Heater Air Conditioner Smart Phone Laptop Desktop CPAP 1500W 8000Btu...
- Page 31 9.3. How to Calculate the Operation Time ●What is the depth of discharge (DoD)? To extend the battery-life, the power station set the 90% DOD, which means that only 90% of the battery capacity can be discharged. 10% of the energy is reserved to avoid damage to the battery due to over-discharge.
- Page 32 Non-critical Load ≥ 3000W BLUETTI AC300 Critical Load Grid Main Panel Sub Panel ≤3000W BLUETTI Solar Panel PV Module ( AC300 grid-tied home power back-up system with Sub Panel and roof panels ) ( Plug-in UPS system ) Step1: Plug the AC charging cable into the wall outlet.
- Page 33 ●The default working mode is “Standard UPS Mode”. 10.2. Enable UPS Running Mode 10.2.1 Standard UPS Mode ● The AC300+B300 will power your load directly from the grid and maintain a 100% charge. When grid power fails, the AC300 switches to internal batteries. 10.2.2.
- Page 34 10.2.3. PV Priority UPS Mode ● PV Priority Mode: Recommended for areas with stable grid power. The battery will be recharged mainly by PV for power savings. ● Note: In PV Priority Mode, AC300 can only be recharged via grid to 30% capacity, and also discharge to 30% of the capacity (you can tweak it to 100% for full grid charging manually on touchscreen or App) as the "Reserved capacity for PV charging".
- Page 35 10.2.4. Customized UPS Mode ● Charge/Discharge time, and High/Low Battery SOC can be set in this UPS mode. ● Ability to disable the grid charging. The unit will not charge batteries from grid. ● Apart from Time Control UPS, the main switch of grid charging and time mode settings are involved.
- Page 36 Wrong Connection will damage the power station and your warranty will be invalid, BLUETTI will not take responsibility for the damage caused by personal negligence or wrong operation. The Fusion AC Input Cable(Optional Purchase) is designed to power the Split Phase System.
- Page 37 Purchase) to charge the two set of the AC300+B300 in Split Phase System. Wrong Connection will damage the power station and your warranty will be invalid, BLUETTI will not take responsible for the damage caused by personal negligence or wrong operation. X(L1)
- Page 38 ● The “Machine Type” setting on screen is used to enable or disable Split Phase output. Split-Phase output is achieved by bonding two AC300 into one power system to double the available output power, voltage, and capacity. ●“Split Phase” is only used for connecting both *2 AC300 together (exclusive for the 100-120V version of the AC300).
- Page 39 12. TECHNICAL SPECIFICATION Model AC300-JP AC300-US AC300-EU/UK/AU Net Weight 21.6kg (47.62lbs) Dimensions 520*320*358mm (20.5*12.5*14.1in) Charge Temperature 0-40℃ (32-104 ℉ ) Discharge Temperature -20-40℃ (-4-104 ℉ ) Storage Temperature -20-40℃ (-4-104 ℉ ) Working Environment 10-90% Humidity Certification PSE, FCC, CE, UN38.3, msds, UL, SAA and ROHS Capacity 3072-12288Wh (60-240Ah) Battery Type...
- Page 40 Rated Output Frequency 50/60Hz Rated Continuous Power 3000W Rated Output Current 3100W ＜ load ＜ 3750W, 2min; Power of Over-load 3750W ＜ load ＜ 4500W, 5s; 4500W ＜ load ＜ 6000W, 500ms Efficiency >88% <5% DC Output Cigarette Lighter Port *1 24VDC,10A USB-A *2 5VDC,3A,15W total...
- Page 41 BLUETTI 13. STORAGE AND MAINTENANCE ● Please turn off the unit and charge it to 50-70% capacity every time before storing it. ● To preserve the battery health, please discharge and fully charge the unit at least once every 6 months.
- Page 42 OCP (Over Current Please contact with the dealer if the error still Protection)- Hardware exists after rebooting the unit. Please contact with the dealer if the error still 009 LLC Soft-Start Failure exists after rebooting the unit. Please contact with the dealer if the error still 010 BUS Soft-Start Failure exists after rebooting the unit.
- Page 43 Please disconnect the load to make sure the Inverter Output Short load has been connected properly. circuit Click to clear the alarm history. Please disconnect the load to make sure the Inverter Over-load output power of loads meet the limit of the Protection unit.
- Page 44 056 AC Overload Warning The output power of load exceeds. Please check whether the grid voltage fits the 057 Grid Voltage High input voltage standard of AC300. Please check whether the grid voltage fits the 058 Grid Voltage Low input voltage standard of AC300. Please check whether the grid frequency fits 059 Grid Frequency High the input frequency of AC300.
- Page 45 Please contact with the dealer if the error still 085 RTC Read & Write Error exists after rebooting the unit. Please disconnect the appliances on DC 086 12V/30A Port OCP 12V/30A ports. Clear the alarm history or restart the unit. Please disconnect the appliances on DC 087 24V/10A Port OCP 24V/10A ports.
- Page 46 Please store AC300 at the recommended BMS Temperature temperature and leave it until the temperature abnormal inside back to the normal standard. Please contact with the dealer if the error still 098 BMS Over Voltage exists after rebooting the unit. Please contact with the dealer if the error still 099 BMS Low Voltage exists after rebooting the unit.
- Page 47 ● BLUETTI shall not be liable for any damage caused by force majeure such as fire, typhoon, flood, earthquake or the user's intentional negligence, misuse or other abnormal conditions.
- Page 48 ● BLUETTI will not bear all responsibilities if the damage is caused by not operating the product properly according to the instruction of user manual. ● AC300 is not suitable for use on the relevant equipment or machines...
