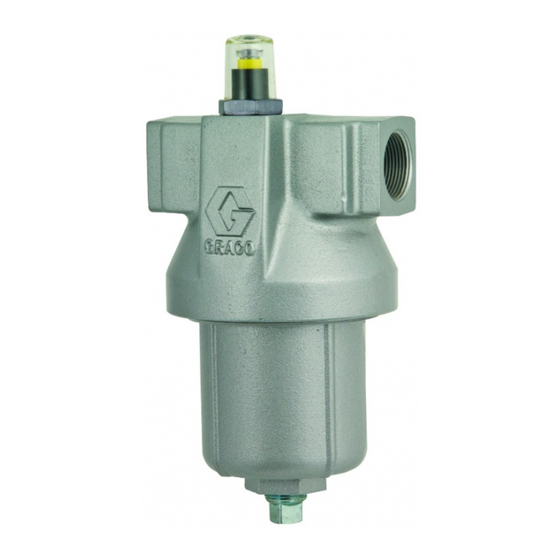

Low pressure, high volume “red alert” filters

Advertisement

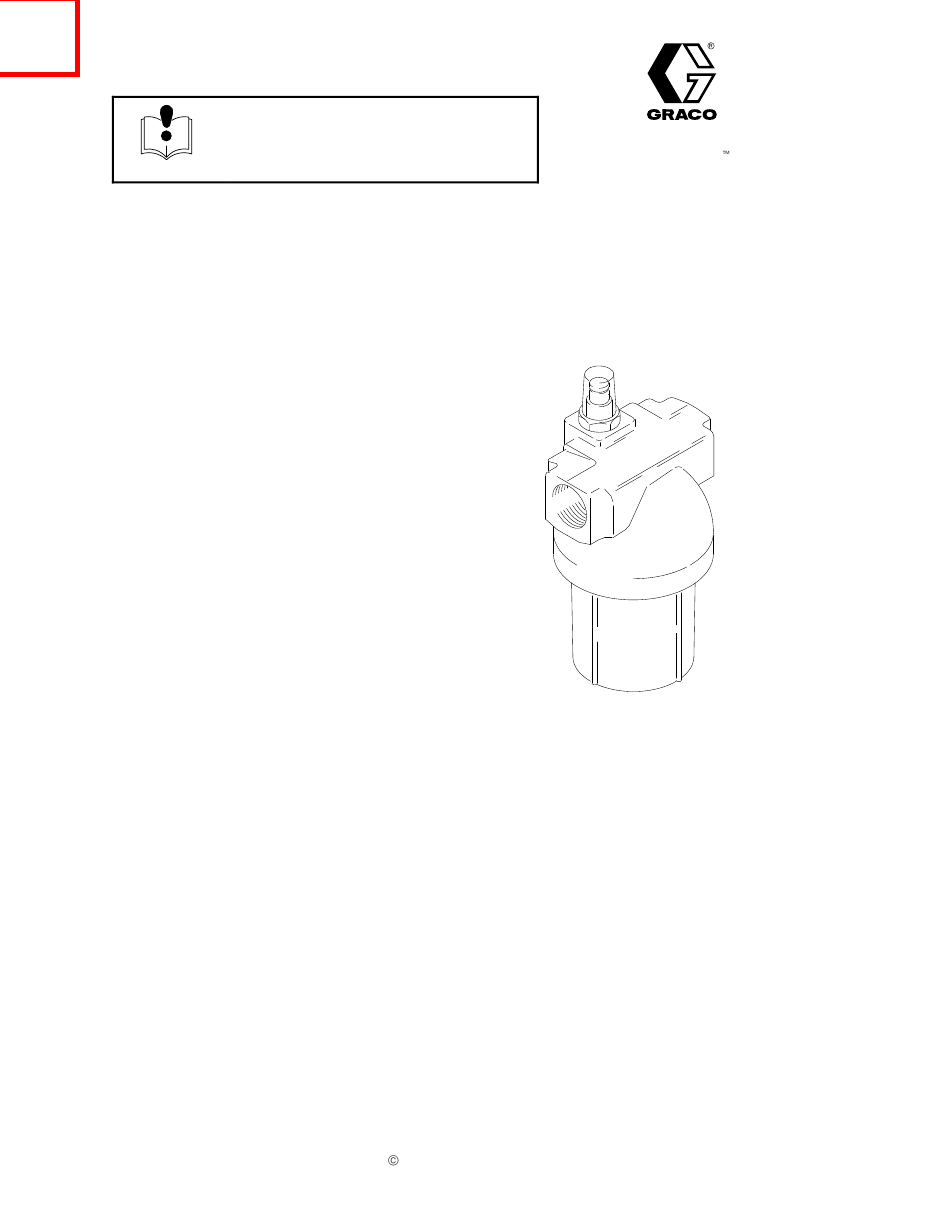

INSTRUCTIONS-PARTS LIST
This manual contains important
Warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
Low Pressure, High Volume
"Red Alert" Filters
300 psi (2.1 MPa, 21 bar) Maximum Working Pressure
20 gpm (76 liter/min) Flow Capacity
2
2
225 in.
(1450 cm
) Filtering Area
Model 213–062
With 30 mesh (590 micron) element
Model 213–063
With 60 mesh (250 micron) element
Model 213–064
With 100 mesh (149 micron) element
Model 213–065
With 150 mesh (95 micron) element
Model 213–066
With 200 mesh (74 micron) element
Model 214–002
Less element – See Parts on page 6 for element
numbers.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1977, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
307–283
Supersedes Rev. C
First choice when
quality counts.
03708
Rev. D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 213-062 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Graco 213-062

  • Page 1 With 200 mesh (74 micron) element Model 214–002 03708 Less element – See Parts on page 6 for element numbers. GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1977, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
  • Page 2 This equipment is for professional use only. Read all instruction manuals, tags, and labels before operating the equipment. Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
  • Page 3 Notes 307–283...
  • Page 4 Installation Notes: Filter Bypass System To clean or service the filter without shutting down This setup enables you to redirect fluid through pipes the system, install a dual filter or a filter bypass as which bypass the filter, while cleaning or servicing the explained below.
  • Page 5 Bowl, Element, and Spring clean all the parts in solvent and blow them dry Graco recommends keeping a spare bowl (9), element before the paint dries and clogs the filter. To help (7), and spring (8) on hand. Before removing the bowl,...
  • Page 6 Parts Note: Model 214–002 includes items 1–6 and 8–10, but does not include a filter element as standard. Select the desired filter element from those listed Model 213–062 to 213–066 under Ref. No. 7 Include Items 1–10 Note: All other models are the same as 214–002, but Model 214–002 do include a filter element as standard, as listed under Include Items 1–6, 8–10...
  • Page 7 Technical Data Category Data Dimensions 6.06” (154 mm) Wide; 5.5” (140 mm) Deep; 11” (280 mm) High Weight 7 lb (3.2 kg) Maximum Working Pressure 300 psi (2.1 MPa, 21 bar) Flow Capacity 20 gpm (76 liters/min) Filter Area 225 in. (1450 mm Wetted Parts Anodized Aluminum, Viton ;...
  • Page 8 Graco distributor to the original purchaser for use. With the exception of any special extended or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
