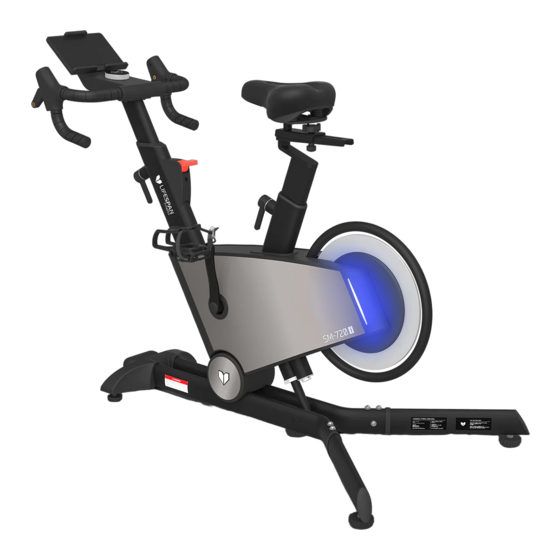

SM-720I Incline/Decline Spin Exercise
Bike with Automatic Magnetic Resistance
Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
IMPORTANT
All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and
other moving parts. Failure to do so may cause damage to your threads and void your warranty.
NOTE:
Product may vary slightly from the item pictured due to model upgrades. This manual may be subject to updates or changes.
Up to date manuals are available through our website at www.lifespanfitness.com.au
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-720I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LifeSpan SM-720I

Summary of Contents for LifeSpan SM-720I

  • Page 1 SM-720I Incline/Decline Spin Exercise Bike with Automatic Magnetic Resistance USER MANUAL Read all instructions carefully before using this product. Retain this owner’s manual for future reference. IMPORTANT All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ....... 03 II. Care Instructions ..........05 III.

  • Page 3: Important Safety Instructions

    I. IMPORTANT SAFETY INSTRUCTIONS Basic precautions, including the following important safety instructions should always be followed when using this spinning bike. Read all instructions before using this spin bike. To reduce the risk of electric shock, always unplug the spin bike from the electrical outlet immediately after using and before cleaning, assembling, or servicing the spin bike.
  • Page 4 • Always wear suitable sports shoes. The use of shoes with heels, leather soles or running shoes with spikes is prohibited. • CAUTION: Always make sure that your arms and legs as well as (small) children, pets or other objects are not close to the rear flywheel during operation to avoid possible serious injuries or damage to the device.

  • Page 5: Care Instructions

    II. CARE INSTRUCTIONS IMPORTANT a. All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your threads and void your warranty. b.

  • Page 6: Parts List

    III. PARTS LIST HARDWARE PACKAGE: (B20) S5 x 1pc. (B21) S13-14=15 x 1pc. (D24) Ø6 x 4pcs. (D16) ST3.5*10 x 2pcs. (D10) M8*15 x 9pcs. (D12) M6*12 x 4pcs. (D26) Ø8 x 9pcs. (D22) Ø8 x 9pcs. | PARTS LIST...

  • Page 7: Assembly Instructions

    IV. ASSEMBLY INSTRUCTIONS D26 D22 D10 M8*15 x 9pcs. B20 S5 x 1pc. STEP 1: 1. Use the hex wrench (B20) and three-in-one screw (D10*3) to fix the front foot pad fixing plate group (B) on the main frame assembly (A) and lock it tightly. 2.
  • Page 8 D16 ST3.5*10 x 2pcs. B21 S13-14-15 x 1pc. STEP 2: 1. First, fasten the buckle (H) on the IPAD rack group (E) into the square hole (K) on the electronic watch group (F), and fix the IPAD rack group (E) on the electronic watch group (F) with a cross wrench (B21) and cross pan head tapping screws (D16) | ASSEMBLY INSTRUCTIONS...
  • Page 9 D12 M6*12 x 4pcs. B21 S13-14-15 x 1pc. B20 S5 x 1pc. STEP 3: 1. First fasten the upper segment wire (E09) and the lower segment wire (E10) as shown in the figure, and then use the hex wrench (B20) two-in-one screw (D12*4) to fix the electronic meter group (F) on the instrument tube group (A02) and lock it.
  • Page 10 STEP 4: 1. Place the cushion group (G) on the cushion tube group (A03) and tighten the cushion group (G) with the small twisting twist (C21) and the limit plate (A12). 2. Finally, the cylindrical nuts (C48) are locked and fixed on the small twisting twist (C21) to prevent the small twisting twist (C21) from coming off.
  • Page 11 STEP 5: 1. Move the stationary bike to the position with power supply, making sure that there is a space distance of 0.6 meters around, and then insert the power adapter (E17) into the power port (E14) as shown in the figure. CAUTION: Pay special attention to the power on the bike will automatically swing back and forth to calibrate the slope! ASSEMBLY INSTRUCTIONS |...

  • Page 12: Seat And Handlebar Adjustment

    V. SEAT AND HANDLEBAR ADJUSTMENT 1. To adjust the height of Handlebars (A02)/Seat Post (A03), first loosen the L-shaped elastic pin assembly (B12) in the counterclockwise direction, set your desired height and then rotate and lock it in the clockwise direction. When operating, face the L-shaped elastic pin assembly (B12) so as to distinguish the direction.
  • Page 13 FLOOR LEVELERS If the ground in uneven, you can adjust the foot pads under the machine as shown in the images by turning it clockwise or counterclockwise until the pads touch the ground firmly. BRAKE USE Press down the brake button to stop the bike pedals. SEAT AND HANDLEBAR ADJUSTMENT |...

  • Page 14: How To Move The Machine

    VI. HOW TO MOVE THE MACHINE Use two hands and hold the rear foot tube, lift the machine about 45 degrees angle until the wheels touch the ground. Move to your desired location. | HOW TO MOVE THE MACHINE...

  • Page 15: Computer Operation

    VII. COMPUTER OPERATION WINDOW AND KEY DESCRIPTIONS 1. LED window displays the following fuctions: A. Time Window: Displays time. Time range from 0:00-99:59, after 99:59 is reached the time will reset to 00:00. B. Distance Window: Displays the distance. Count range from 0.00-99.9 after 99.9 the distance will revert to 0.00 and count again.
  • Page 16 B. Knob Clockwise Rotation: Increase the resistance levels when the equipment is in use. In the standby state it is used to select the built-in program P1-P2-P3. C. Knob Counterclockwise Rotation: When equipment is in motion, turn counterclockwise to reduce the resistance levels.
  • Page 17 Shutdown: The system can be turned off at any time by turning off the power switch without damaging the system. Note: 1. Check whether the power supply is loaded before movement; 2. If there is any problem with the machine, please contact the distributor. Non-professionals, do not try to disassemble or repair the machine so as to avoid damage to the equipment.

  • Page 18: Exercise Guide

    VIII. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
  • Page 19 COOL DOWN Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post- exercise problems.

  • Page 20: Warranty

    Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed. If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service...
