QUICK-START GUIDE
PRO-TILL 14/17/20NT
for
* Refer to operators manual for complete safety and operation info.
A

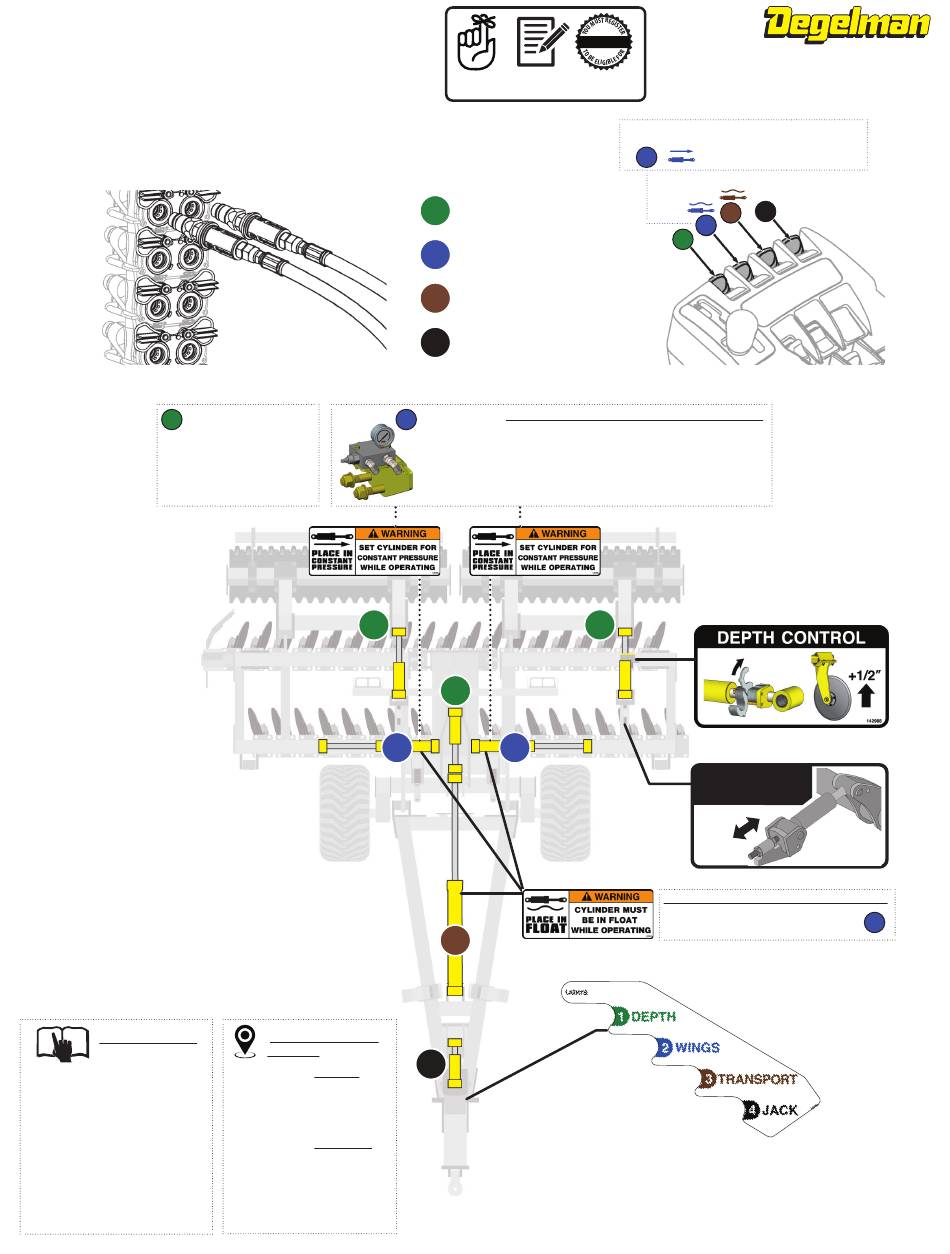

Connect Hydraulics
IMPORTANT:
1
Re-phase and cycle oil
in the Depth Control
Cylinders before use
(especially after long
periods or storage).
Maintenance
(Check Machine Daily)
• Hydraulic Connections/Hoses
• Working points & pins
• Hubs & Spindles
• Tire Pressure: 41 PSI
(283 kPa)
• Check for missing, worn or
damaged parts.
* Refer to operators manual for
complete safety and operation info.
*
2
1
2
GPS Reference
(Set overlap to 6" per side)
(with 20" discs) 2" Depth
Pro-Till 14 150" (3.8m)
Pro-Till 17 190" (4.8m)
Pro-Till 20 230" (5.8m)
(with 20" discs) MAX Depth
Pro-Till 14 154" (3.9m)
Pro-Till 17 193" (4.9m)
Pro-Till 20 233" (5.9m)
(Consider setting the GPS to include
a 6" implement offset to the right)
WARRANTY
REMEMBER! You must complete Product
Registration to be eligible for Warranty.
DEPTH
1
WINGS
2
TRANSPORT
3
JACK
4
IMPORTANT: - PT20NT Constant Wing Pressure Models ONLY -
The Wing Cylinder Circuit includes a Down Pressure Valve.
• Operator must engage wing circuit hydraulics constantly
in the extended direction to ensure constant down pressure.
• Adjust wing circuit flow down to 20-30%
to reduce heat build-up.
1
1
2
3
4
- Only for Pro-Till 20NT
CONSTANT
PRESSURE
models with constant wing
2
pressure kit installed -
FLOAT
FLOAT
4
3
2
1
PITCH
ADJUSTMENT
PT20NT Constant Wing Pressure Models
Refer to IMPORTANT note above.
Do NOT float wing cylinders
2
