Degelman 5900 Series Operator's Manual/Parts Catalog
  1. Manuals
  2. Brands
  3. Degelman Manuals
  4. Farm Equipment
  5. 5900 Series
  6. Operator's manual/parts catalog

Degelman 5900 Series Operator's Manual/Parts Catalog

For john deere 8130-8530, 8225r-8360r, ft4 8245r-8370r
Hide thumbs Also See for 5900 Series:

Advertisement

Quick Links

Download this manual
OPERATOR MANUAL
& PARTS CATALOG
142664 v1.4
JOHN DEERE
D E G E L M A N
I N D U S T R I E S
L P
B O X
8 3 0 - 2 7 2
I N D U S T R I A L
D R I V E ,
8130-8530, 8225R-8360R
R E G I N A ,
S K ,
C A N A D A ,
S 4 P
3 B 1
F A X 3 0 6 . 5 4 3 . 2 1 4 0
P H 3 0 6 . 5 4 3 . 4 4 4 7
FT4 8245R-8370R
1 . 8 0 0 . 6 6 7 . 3 5 4 5
D E G E L M A N . C O M

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5900 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Degelman 5900 Series

Summary of Contents for Degelman 5900 Series

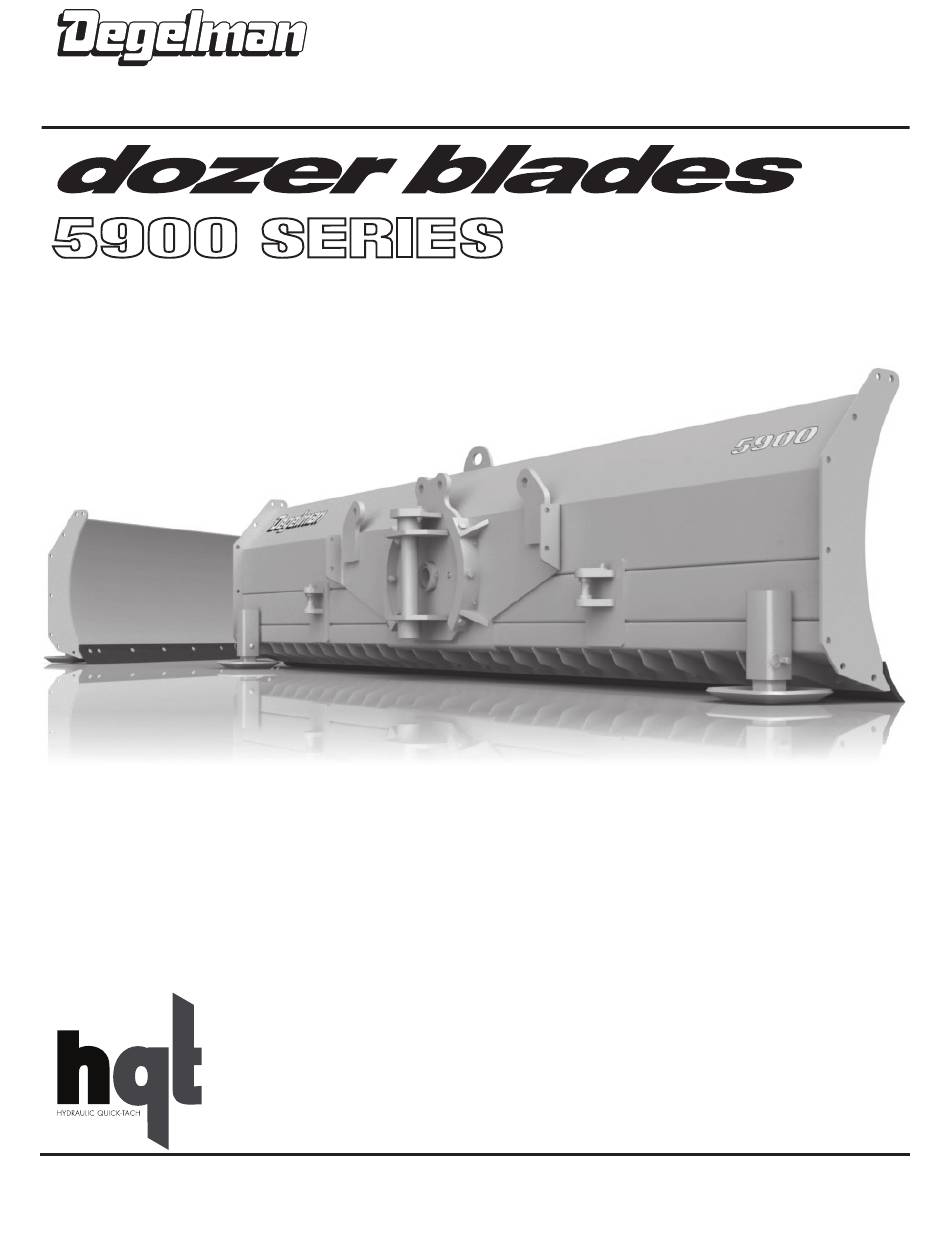

  • Page 1 OPERATOR MANUAL & PARTS CATALOG 142664 v1.4 JOHN DEERE D E G E L M A N I N D U S T R I E S B O X 8 3 0 - 2 7 2 I N D U S T R I A L D R I V E , 8130-8530, 8225R-8360R R E G I N A ,...
  • Page 3 QUICK GUIDE INDEX Introduction Safety Operation Maintenance Transport & Storage Troubleshooting Blade Attachments Blade Components Pivot & Main Frame Components Side Brackets & Installation Hydraulic Routing Cylinders Mounting Warranty Record Serial Number: ............IMPORTANT: D E G E L M A N I N D U S T R I E S B O X 8 3 0 - 2 7 2...

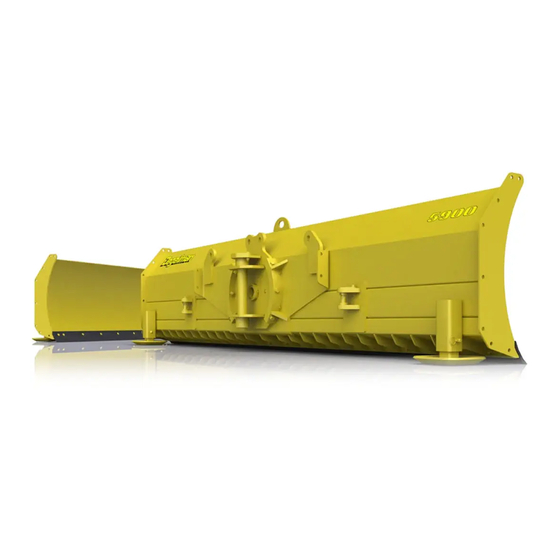

  • Page 5 Introduction WELCOME PROOF OF OWNERSHIP Degelman is proud to welcome you to our rapidly Serial Number Plate increasing family of high quality and dependable product owners. This product was designed and built specifically for you, the customer. Through our research and with your input and feedback, we present to you our 5900 Series Dozer Blade.
