Summary of Contents for Degelman Landroller 7645

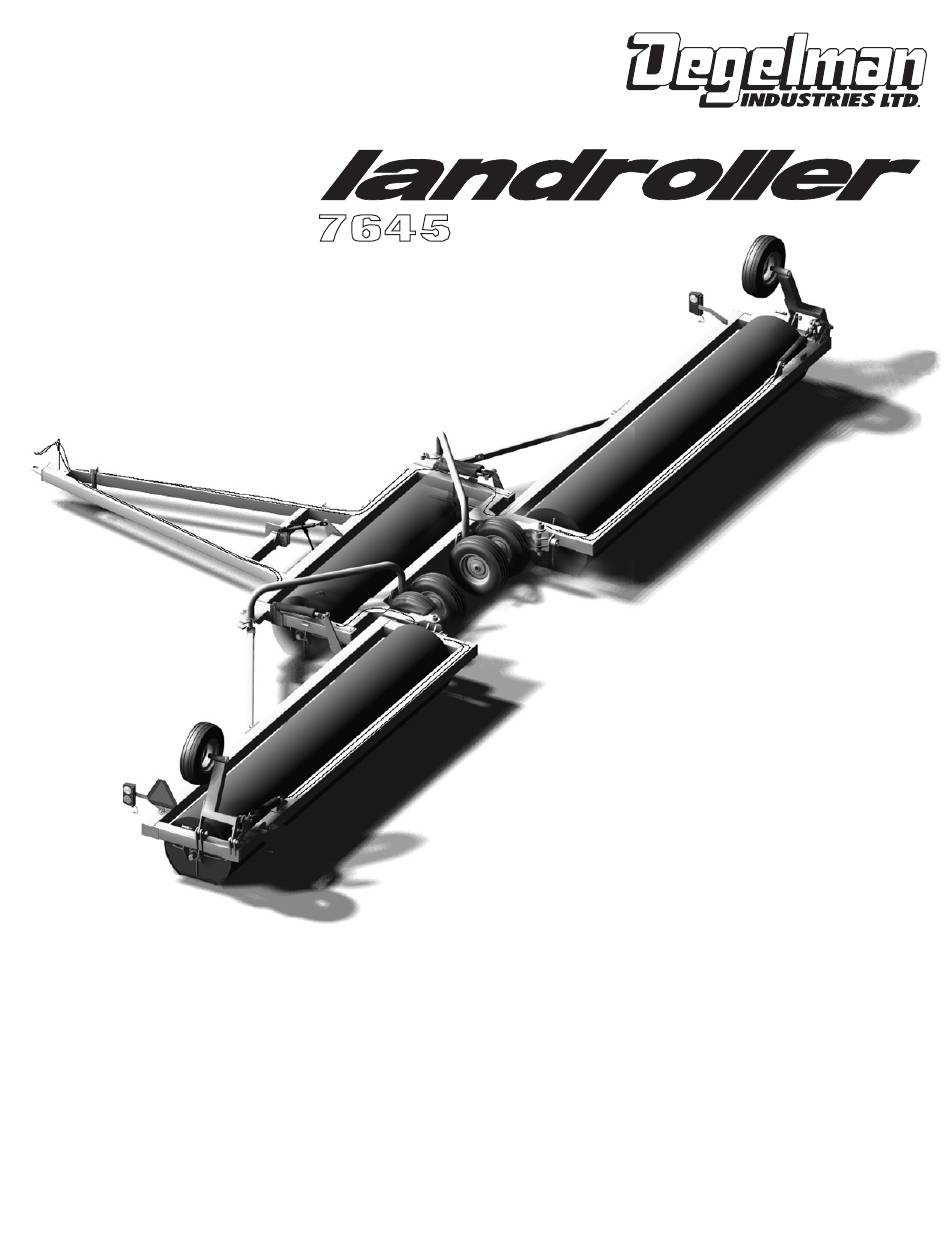

  • Page 1 MANUAL 142592...

  • Page 2: Table Of Contents

    Regina, Sask. Canada S4P 3B1 especially related to heavy Toll Free: 1-800-667-3545 306 543-4447 543-2140 fx equipment. If you are not familiar with safety procedures then you Email: degelman@degelman.com should get training. www.degelman.com Improper use will result in maiming or death. 142592...

  • Page 3: Hitchpole, Centre Frame

    Hitch pole & centre frame 17 18 142592...
  • Page 4 Transport Floatation plate TRANSPORT Field Store transport pin Grease point Every 25 hrs 118335 Grease fitting 244801 Centre frame 244300 Hitch pole 243768 Pole pin 118034 Bolt 5/8 x 3-1/2 118447 Lock nut 5/8 UNITQ 132001 Rachet jack 132009 Jack handle 118829 Hair pin 132032...

  • Page 5: Centre Frame Wheels & Roller

    Centre frame, wheels & roller Store hyd cyl transport lock Grease point Every 25 hrs 142592...
  • Page 6 The wing rollers use the same bearing system 243501 Centre roller 131324 Hub & spindle 117006 Bearing 118835 Cotter pin Per wheel 117022 Lock ring 131701 Dust cap - CTD 117106 Bearing insert 118423 Slotted nut 1 UNS 117107 Flange casting 131020 Flat washer 1 SAE 243604...

  • Page 7: Centre & Wing Frames

    Centre & wing frames Hydraulic cylinder 3 1/2 x 16 x 1 1/2 Centre frame Truss Wing frame 142592...
  • Page 8 244302 LH wing frame 117110 Bushing 1-1/4 x 3/4 243301 243710 LH autofold arm 243727 LH auto fold latch 243709 243726 Bolt 1/2 x 3 1/2 118082 Bolt 1/2 x 3 1/2 Autofold collar 273717 Autofold collar Lock nut 1/2 UNITQ 118420 Lock nut 1/2 UNITQ 118628...
  • Page 9 Centre & wing frames 142592...
  • Page 10 243664 Cross joint 243773 Cross joint pin 118094 Bolt 5/8 x 4 118447 Lock nut 5/8 UNITQ 243719 Truss arm 118116 Bolt 1 x 4 1/2 118510 Lock washer 1 118412 Nut 1 143111 Hose holder 118026 Bolt 5/8 x 2 118514 Flat washer 5/8 118508...

  • Page 11: Wing Frame Wheels & Roller

    Wing frame, wheels & roller Install roller as with centre frame 131062 Wheel 118914 Whl bolt 9/16 x 1 3/4 127003 Tire 9.5Lx15 6ply 127006 Valve TR415 131001 Rim 15x8 6 bolt 118651 Jam nut 9/16 UNF 131348 Hub & bent spindle 243753 Wing roller 118835...
  • Page 12 Hydraulic cylinder 3 1/2 x 16 x 1 1/2 Store hyd cyl transport lock Grease point Every 50 hrs 118335 Grease fitting 142592...

  • Page 13: Hydraulics

    Grease point Every 25 hrs Hydraulics 122728 3 1/2 x 16 x 1 1/2 Cylinder four per machine TRANSPORT 121803 Barrel LOCK 122658 Lock ring 122656 Open cap 122099 Rod & clevis 122663 Piston 118441 Lock nut 7/8 UNF UNITQ 118930 Clevis pin 118924...
  • Page 14 (75) (75) 141576 Coupling 1/2 NPT (male tip) 141514 Nipple (M) 1/2 NPT x 3/4 JIC 141501 Tee 3/4 JIC M 141505 Tee 3/4 M JIC x JIC x ORB 141504 Elbow 3/4 M JIC x ORB (224) (Hose length in inches) (204) 126550 Hose 3/8 x (75)

  • Page 15: Clearance Lights

    Clearance lights 11 & 15 129027 7 Pole plug 244504 16/4 SuperVU line 8ft 244506 Junction box 129033 Straight cord conn. 118717 Plastic locknut 1/2 NPT 129021 LH Dual lamp 129035 Terminal strip 5 conn. 129020 118716 Screw #8, 3/4 243776 Lamp/SMV brkt, left side 118735...
  • Page 16 Splice Right wire RH turn Amber light Ground brown Ground brown Red light Tail LH turn Left wire 7 POLE 16/4 JUNCTION 16/3 TRIPLUG PLUG WIRE WIRE Cut loom for Triplug 142592...

  • Page 17: Operations

    Transport Latch open Cable taut PREPARE Take off transport locks Set floatation plate to field position Latch closed SET LATCH CLOSED Drop drums with wings almost out Back up until wings all the way out then wing arm clicks in Cable slack 142592...
  • Page 18 BRING WINGS OUT Back up slowly ANGLE OUT TRANSPORT WHEEL Drop roller Turn axle Lift roller Field AUTOFOLD LATCH ADJUSTMENT: After a while the cable will stretch and the latch won’t open to free the Swing Arm. To adjust, have the wings out. With the swing arm pipe in the latch and the latch open just enough for the swing arm to clear adjust the nut on the eyebolt.

  • Page 19: Safety, Warranty

    Decal # Decal Description when searching for leaks. Use a and follow the information 142008 Decal, Degelman 6 x 25 3/4 IN found on all safety decals. piece of wood or cardboard but 142383 Decal, Caution - 6 Point Safety not your hand.
  • Page 20 WARRANTY Degelman Industries warrants this product to the original owner for a period of one (1) year parts and labour and two (2) years parts from the date of purchase. All matters related to the warranty of our products must be handled through the authorized selling dealer.
